01. BizBox Konsulta Information System - Guideline

01. BizBox Konsulta Information System - Guideline

Konsulta is a comprehensive outpatient benefits package offered by PhilHealth as mandated by the Universal Health Care Law.
It aims to provide Filipinos with equitable access to quality and affordable health care goods and services and protect them against financial risks.


SYSTEM SET-UP

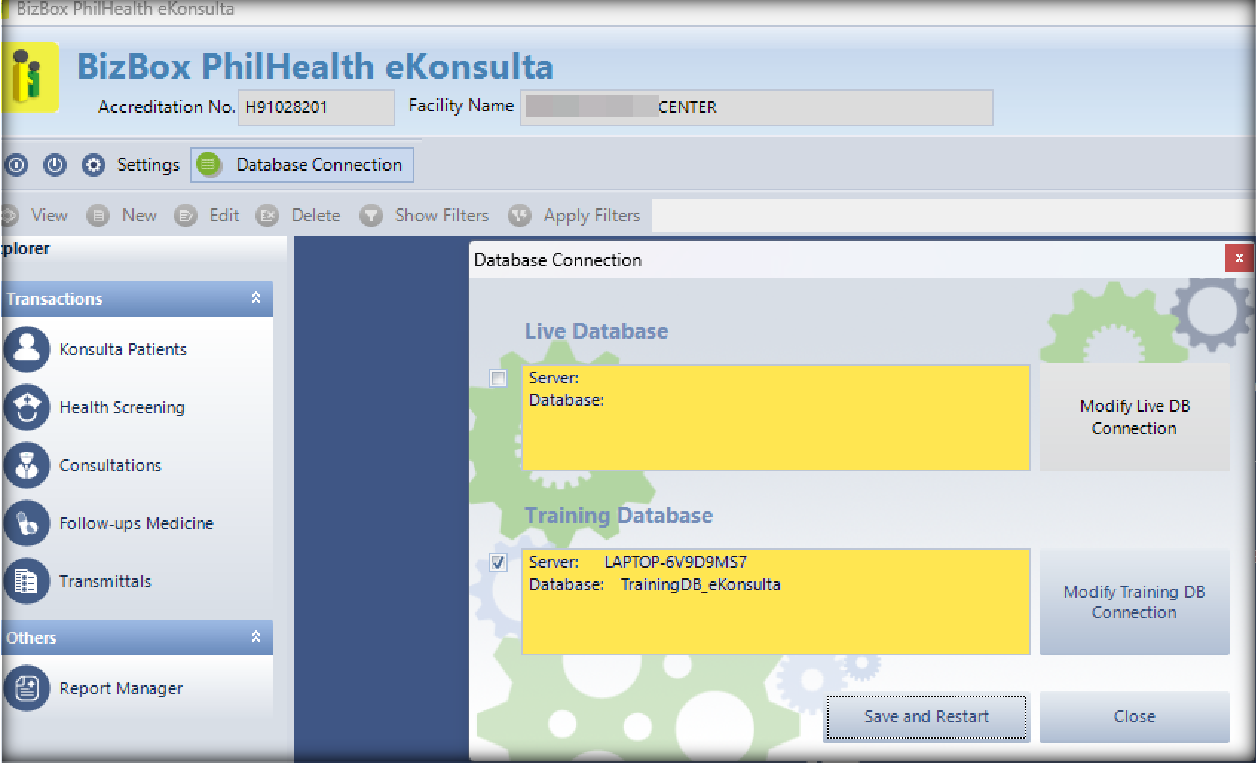

Setting up Database Connection
Locate for the preferred HIS database connection

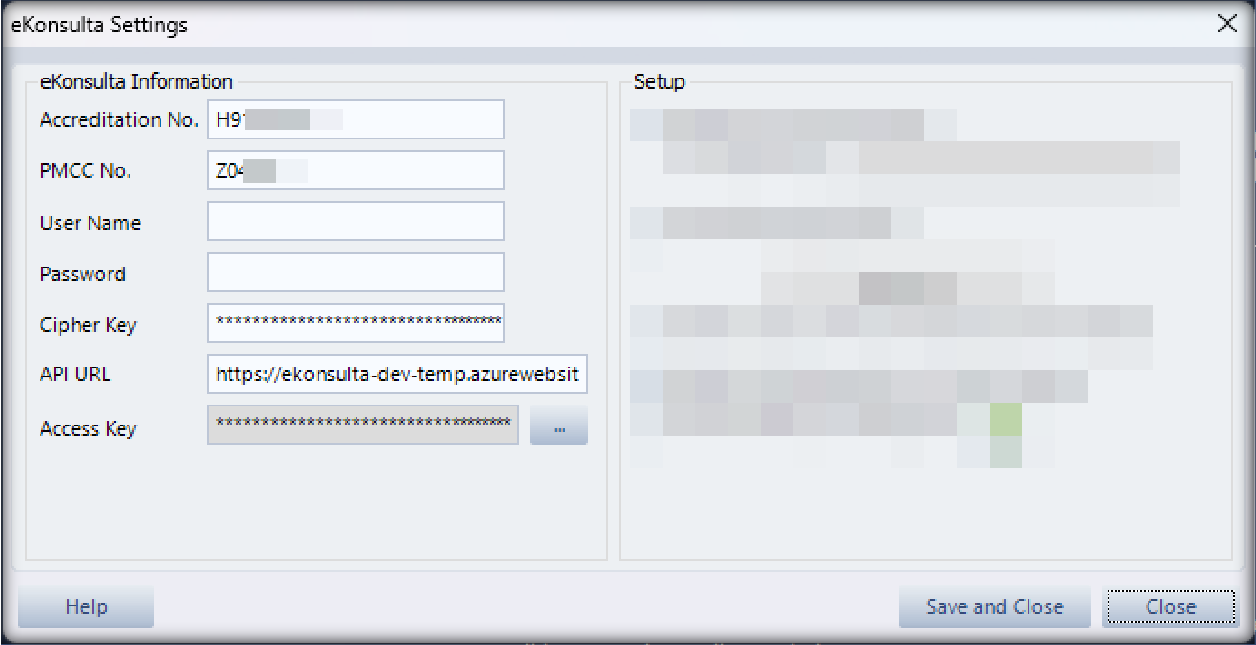

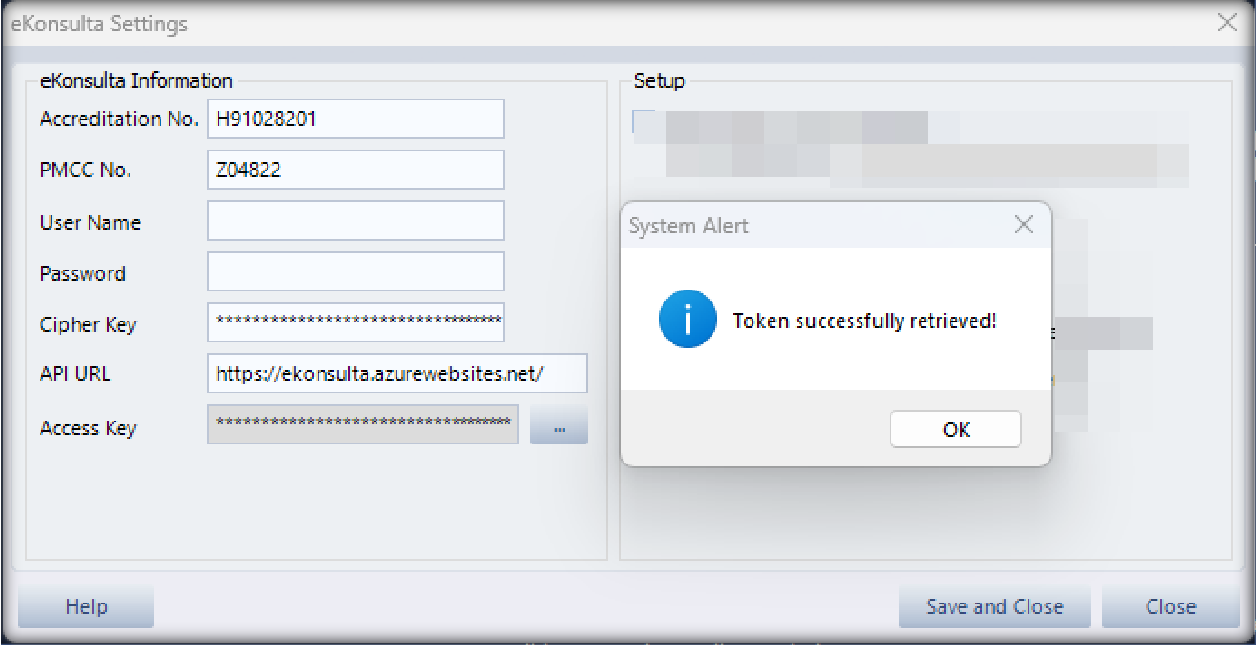

SETTING
Encode the following:
  1. Accreditation No. – eKonsulta Accreditation Number
  2. PMCC No. – eKonsulta PMCC Number
  3. Username – remain as blank
  4. Password – remain as blank
  5. API URL – request the API URL to Bizbox Administrator
  6. Access Key – request the Access Key to Bizbox Administator
  7. Prev. Cipher Key – for client with previous Service Provider Only. Leave as blank if not applicable




System Setups

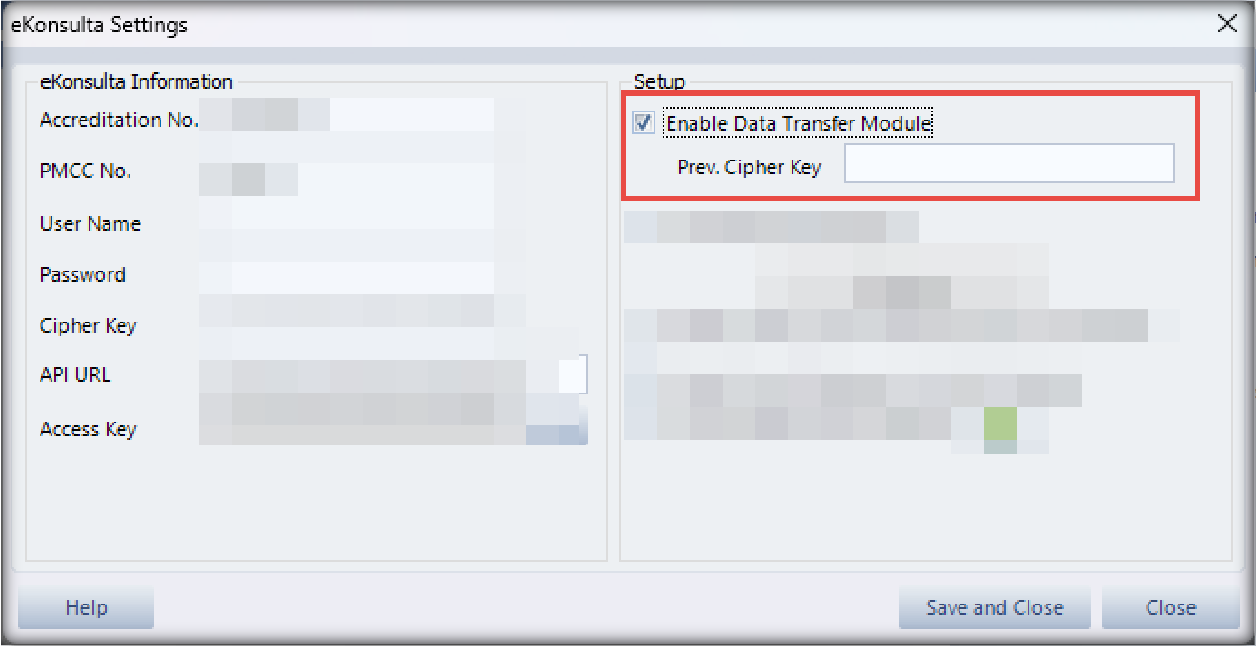

1. Enable Data Transfer
This functionality enables users to smoothly migrate their Konsulta Patient data from a previous provider to the BizBox System.


2. Active Branching Feature
This feature empowers users to conduct transactions with Konsulta Patient across one or multiple branches.

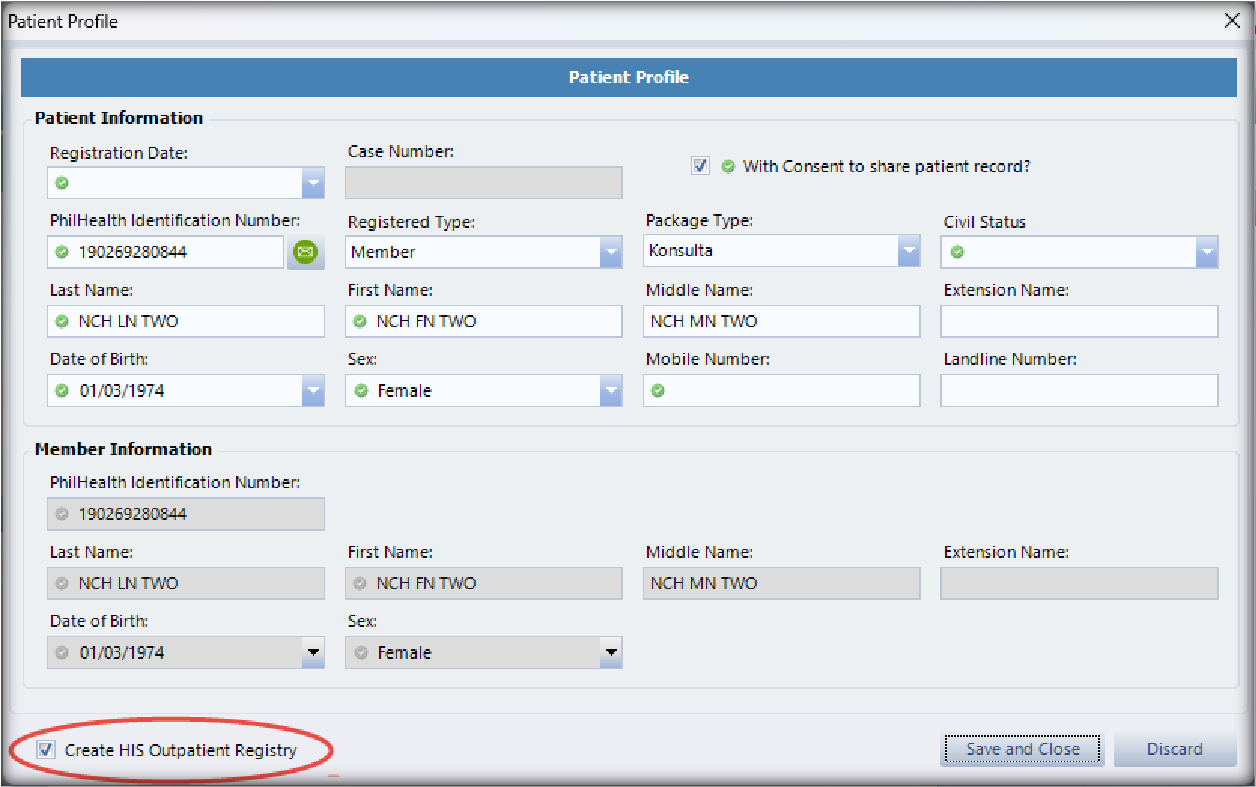

3. Enable Creation of HIS OPD Records for New Patients
This functionality allows users to effortlessly generate an OPD Record in the Hospital Information System (HIS) during the registration of a Konsulta Patient.


Expected Output:

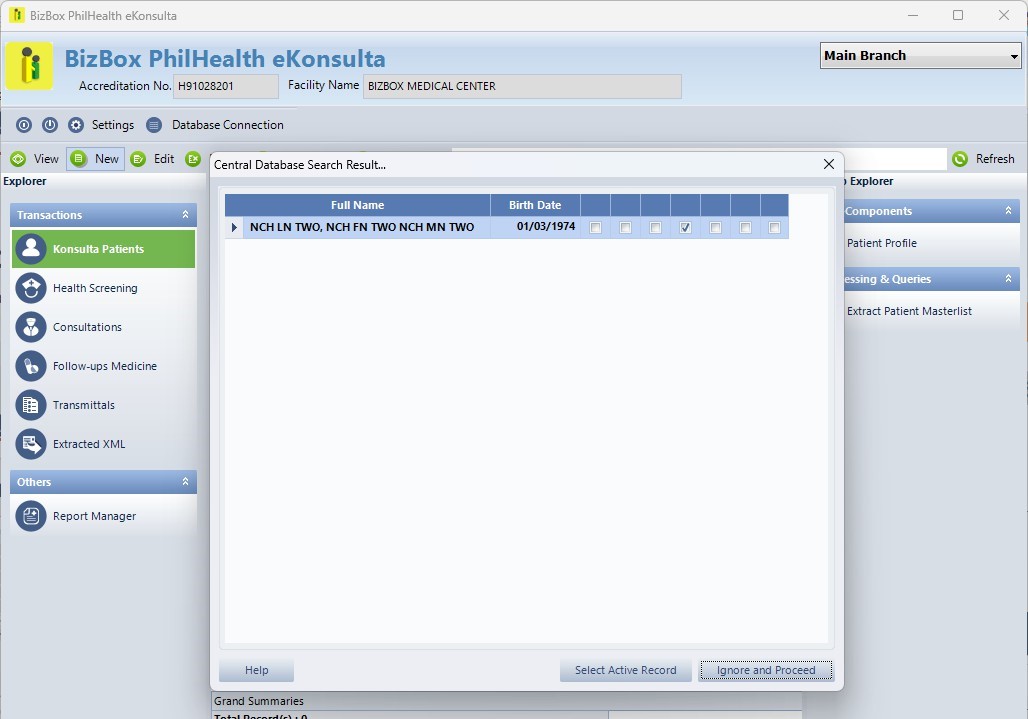

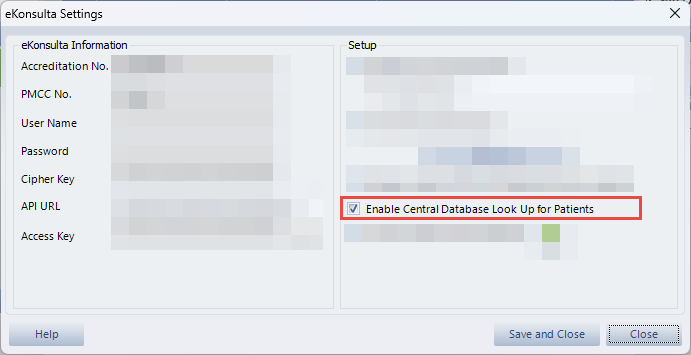

4. Enable Central Database Look Up for Patients
This feature validates whether the patient is already registered in Konsulta Patients.


Expected Output;


5. Active QMeup - HIS Integration
This functionality allows users to effortlessly generate a QME-Up & EHR Record during the registration of a Konsulta Patient.


Expected Output:

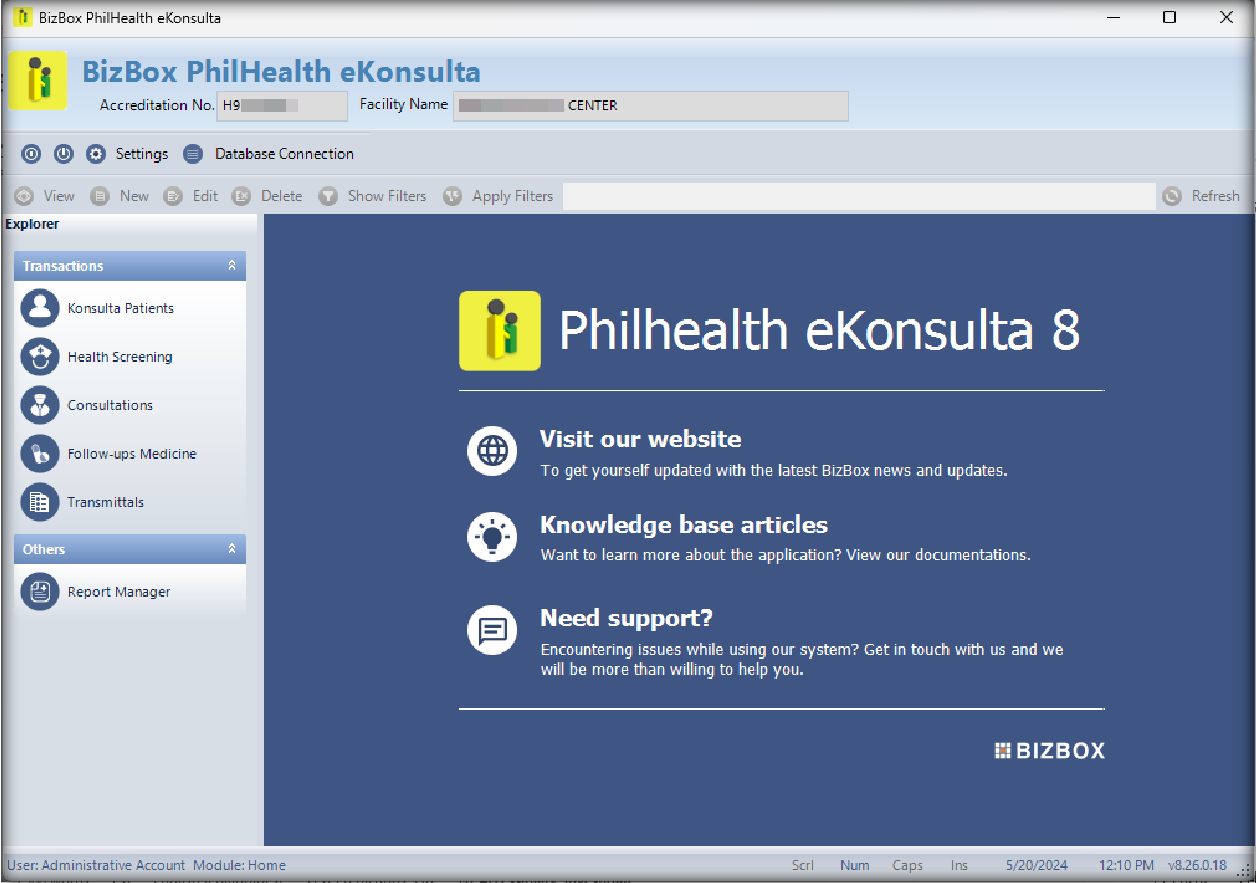

eKonsulta Homepage


EXTRACT REGISTRATION MASTERLIST
To sync the eKonsulta registered patient in Philhealth Portal to Bizbox eKonsulta
  1. In Homepage, go to Processing and Queries – Extract Patient Masterlist
  2. Registration Masterlist module will load. Select the Date range of ekOnsulta registered patient in Philhealth Portal
  3. Click on Extract Registration Masterlist. Patient list will load.
  4. Click on Upload Registration Masterlist to sync the patients to Bizbox eKonsulta.

KONSULTA PATIENTS

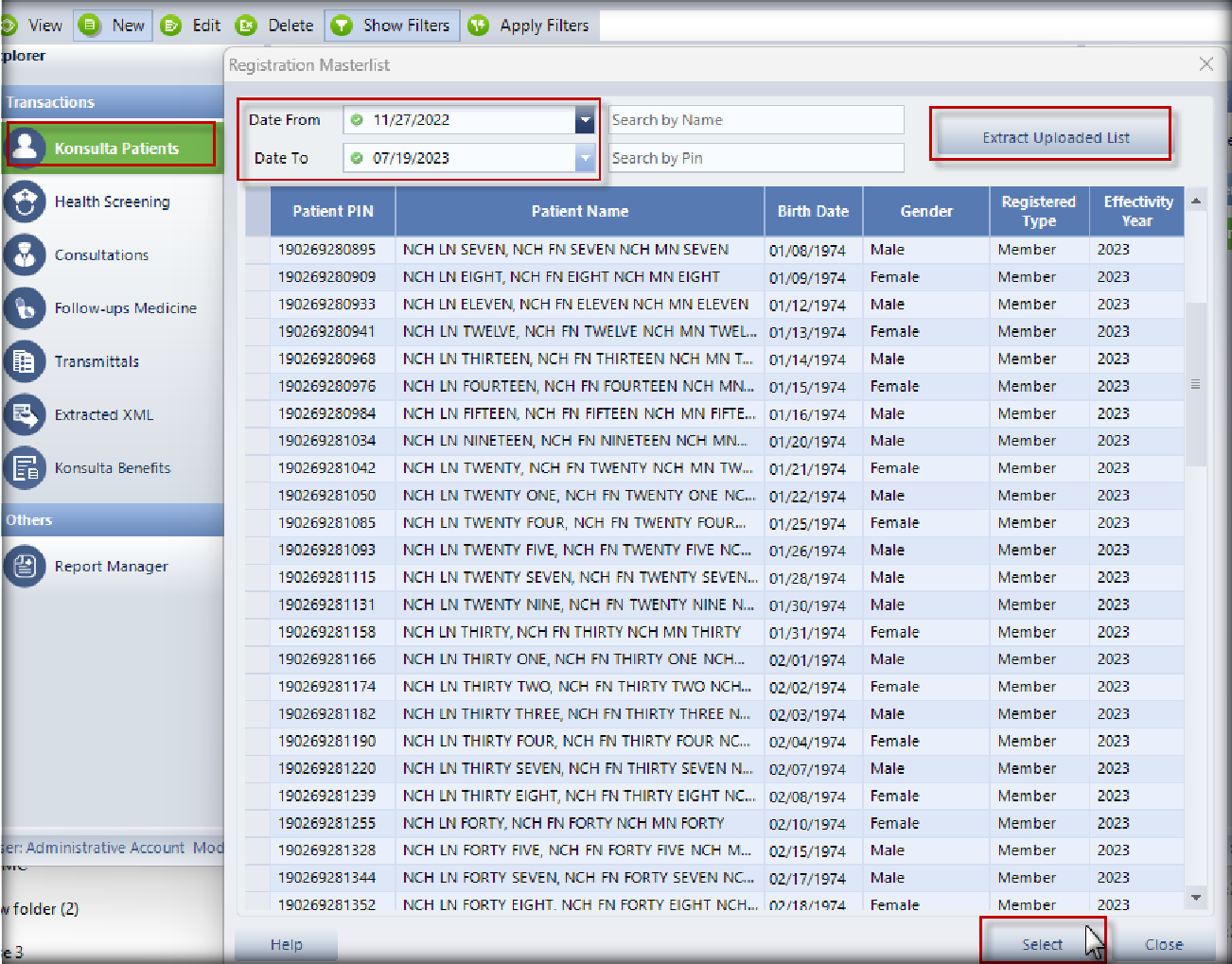

  1. Go to Konsulta Patients Module.
  2. Click on Create New button
  3. Define the Date Range where the patient is registered as eKonsulta patient in Philhealth Portal.
  4. Click on Extract Uploaded List
  5. Highlight a patient and click on the Select button

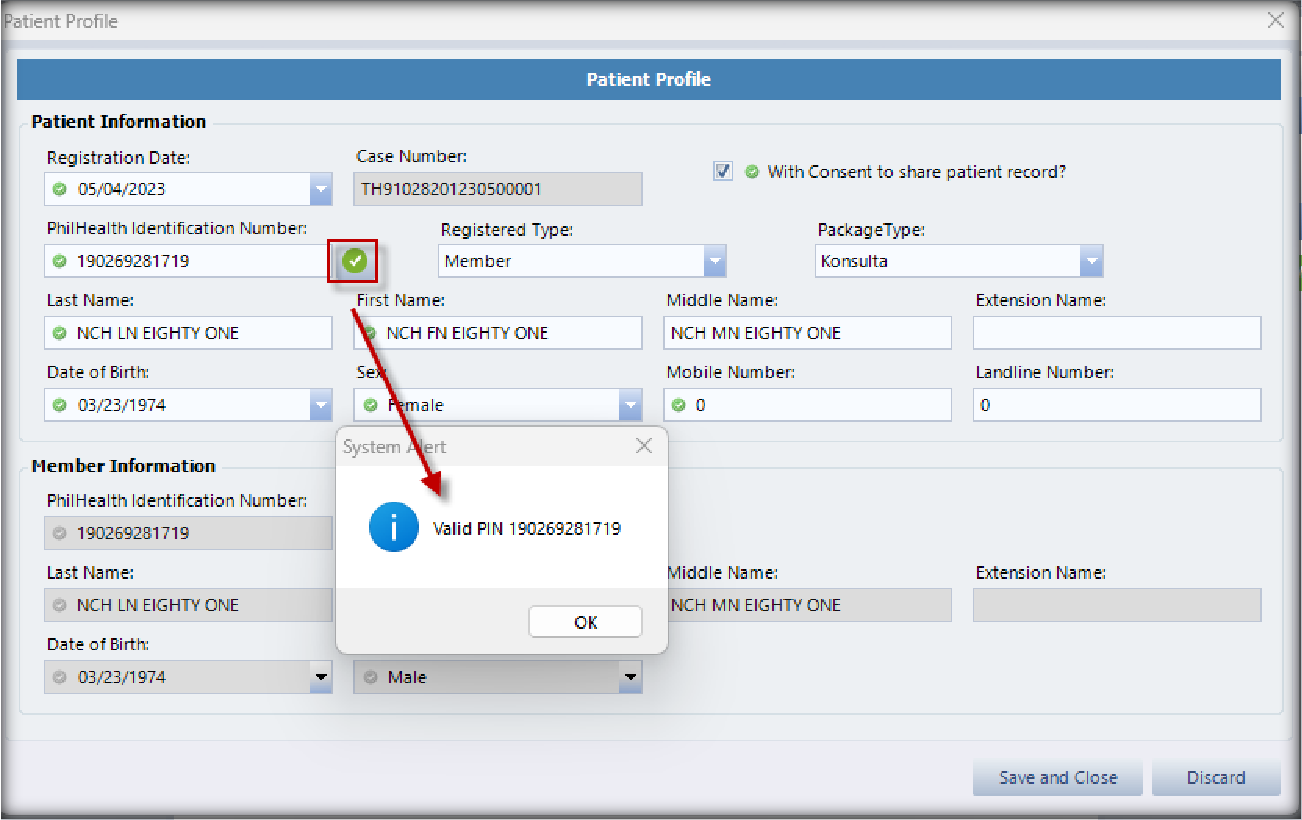

6. Once the patient is selected, Patient Profile will load. In this form, the Philhealth web service provide the following details
  1. Captures the Member PIN and Patient PIN
  2. Can check if the extracted PIN is valid
  3. Captures the Member/Dependent Registration Type


7. Click on Save and Close to exit the Patient Profile
8. Make input on user password validation entry to proceed.

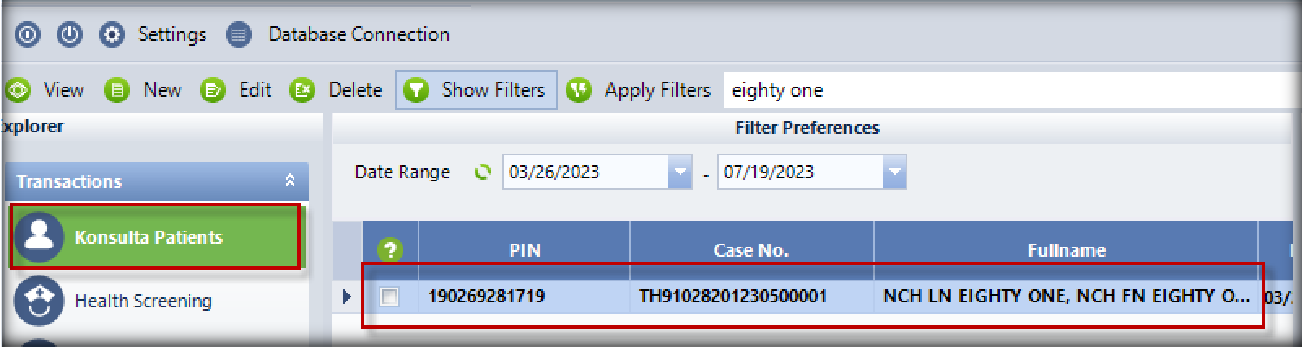

9. The patient will now appear at the Konsulta Patients record



HEALTH SCREENING AND ASSESSMENTS

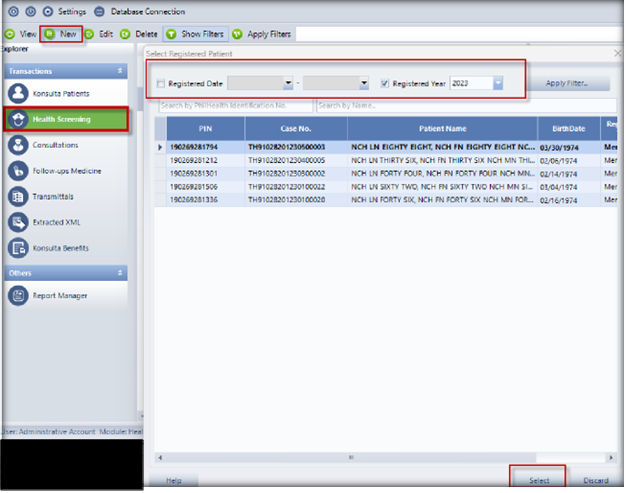

  1. In Homepage, click on Health Screening
  2. Click on Create New. The system will load the patients from Konsulta Patients with no Health Screening Record yet.
  3. Highlight a patient and click on Select button

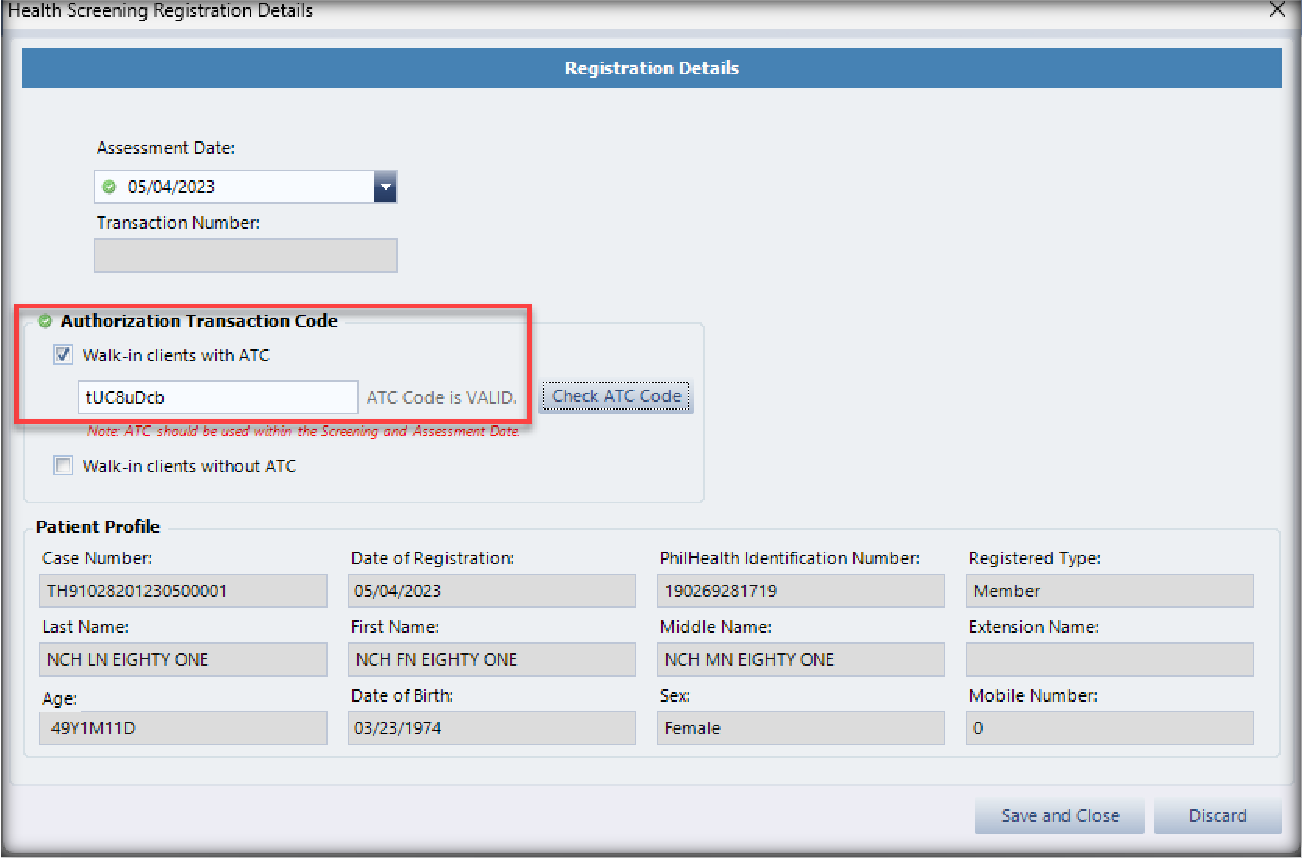

4. System will load the Health Screening Registration Details of Patient
5. In Authorization Transaction Code (ATC) encode the Walk-in clients with ATC if the patient is with ATC from Philhealth. Otherwise check on Walk-in clients without ATC.
6. Click on Check ATC to Validate if the code is correct.
7. Message response will appear
  1. ATC Code is VALID
  2. ATC Code is INVALID
  3. Click on Save and Close to exit the form


8. Make input in user password validation.
9. The patient will now display in Health Screening main grid

  1.

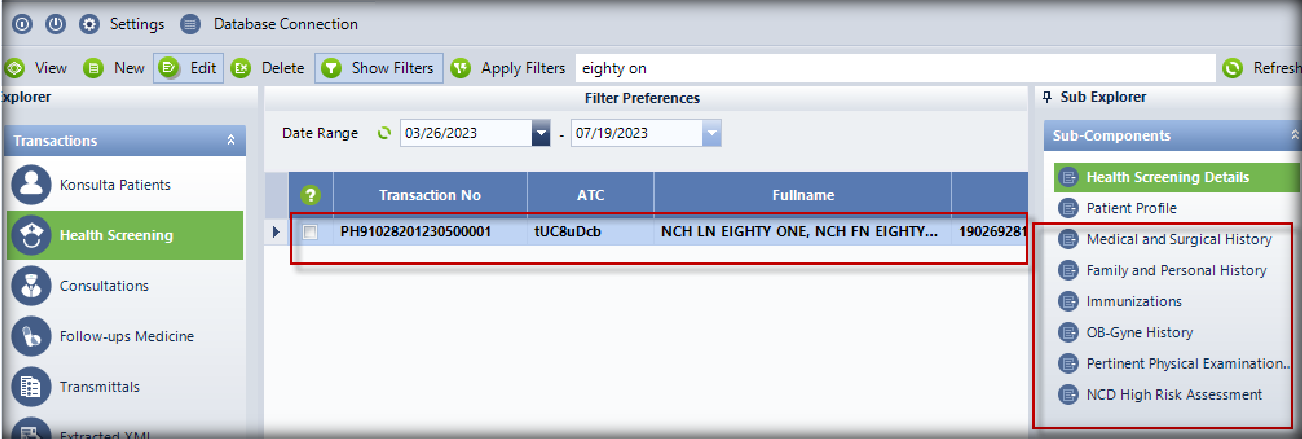

HEALTH SCREENING SUB-COMPONENTS

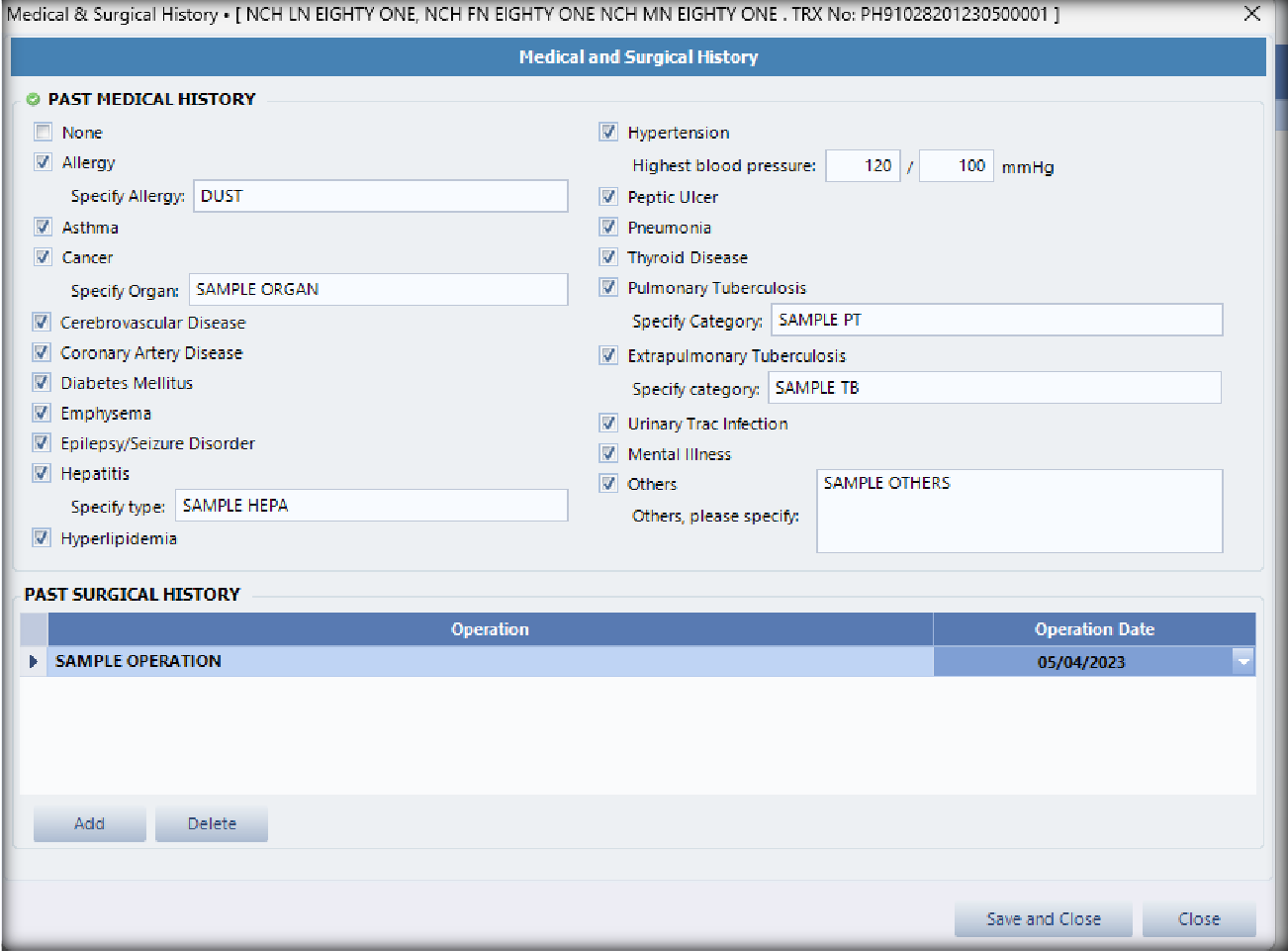

Medical and Surgical History
  1. Past Medical History – check all applicable for patient’s condition
  2. Past Surgical History – make an entry for the type of operation and Date

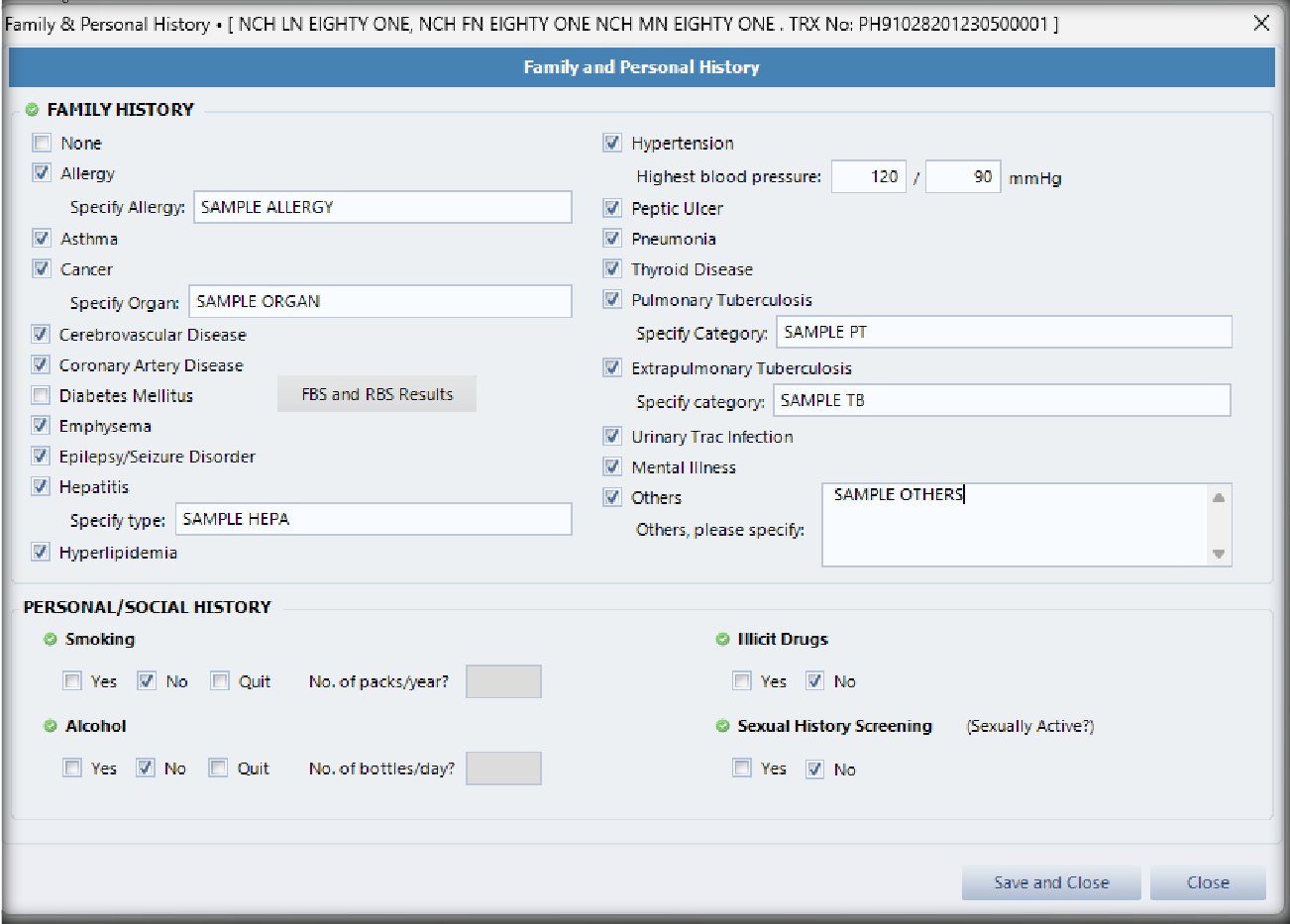

Family and Personal History
  1. Family History - check all applicable for patient’s condition
  2. Personal/Social History - check all applicable for patient’s condition

SPECIAL SCENARIO:

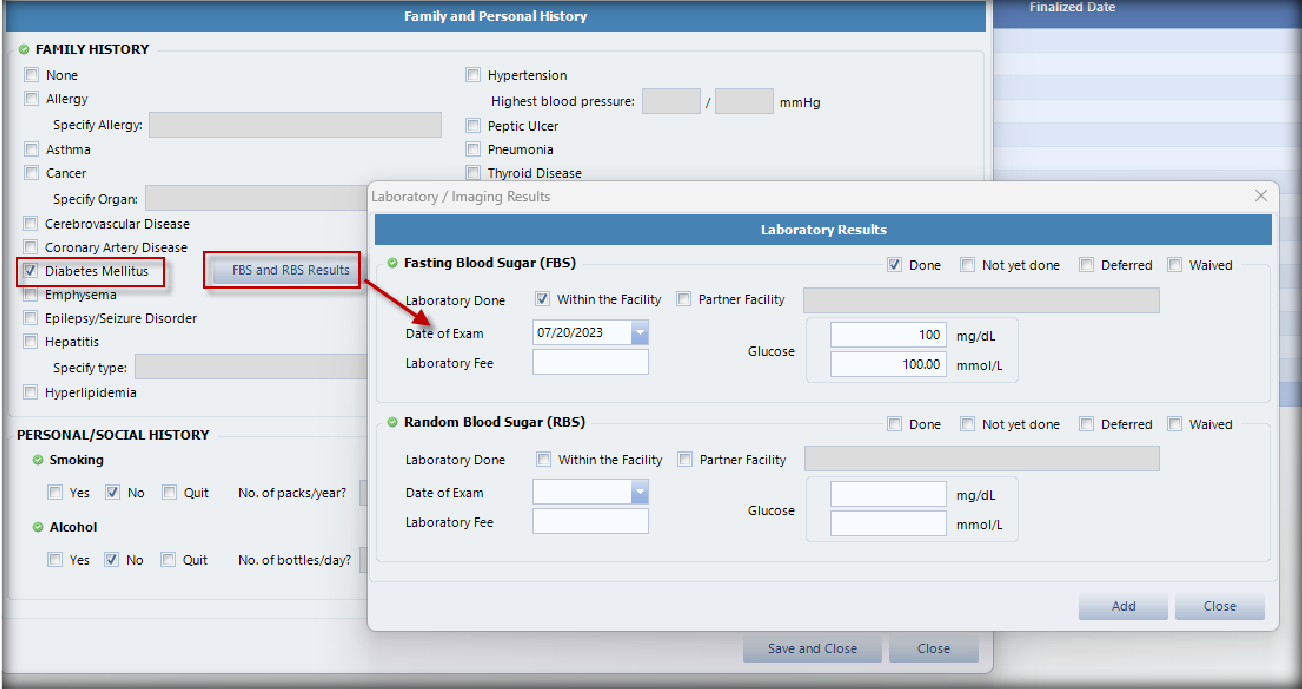

In Family and Personal History module, when clicking Diabetes Mellitus, the user may encode the Fast Blood Sugar (FBS) or Random Blood Sugar (RBS) of patient

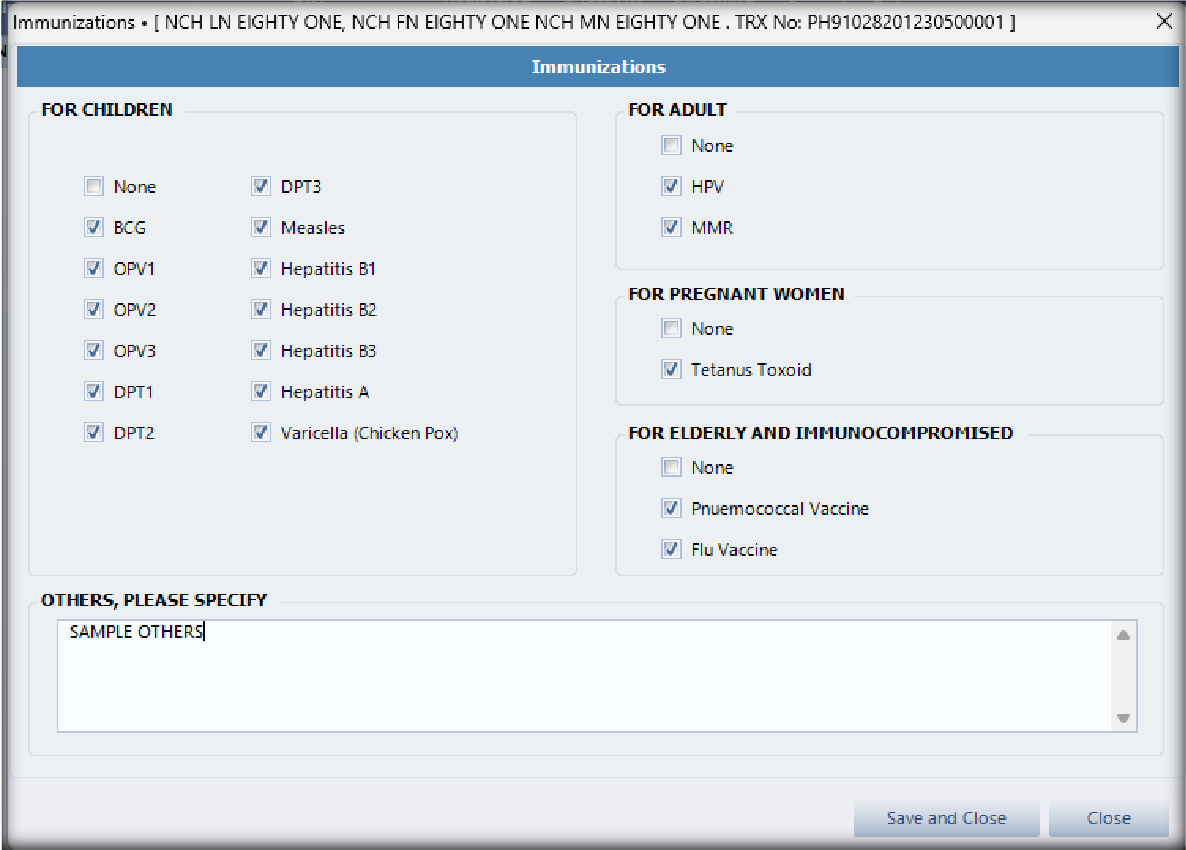

Immunization
Check all applicable for patient’s condition


OB-Gyne History
Check all applicable for patient’s condition

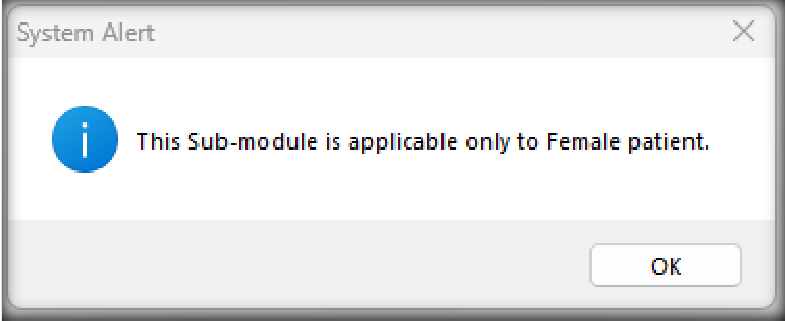

NOTE: For Female patient only. This module will be disabled if the patient is Male


If the patient is MALE

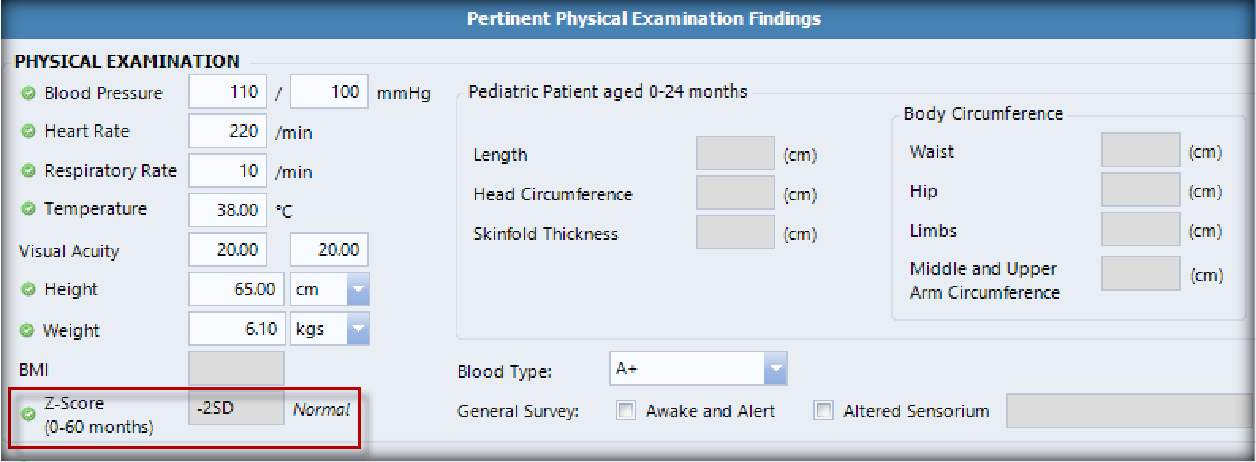

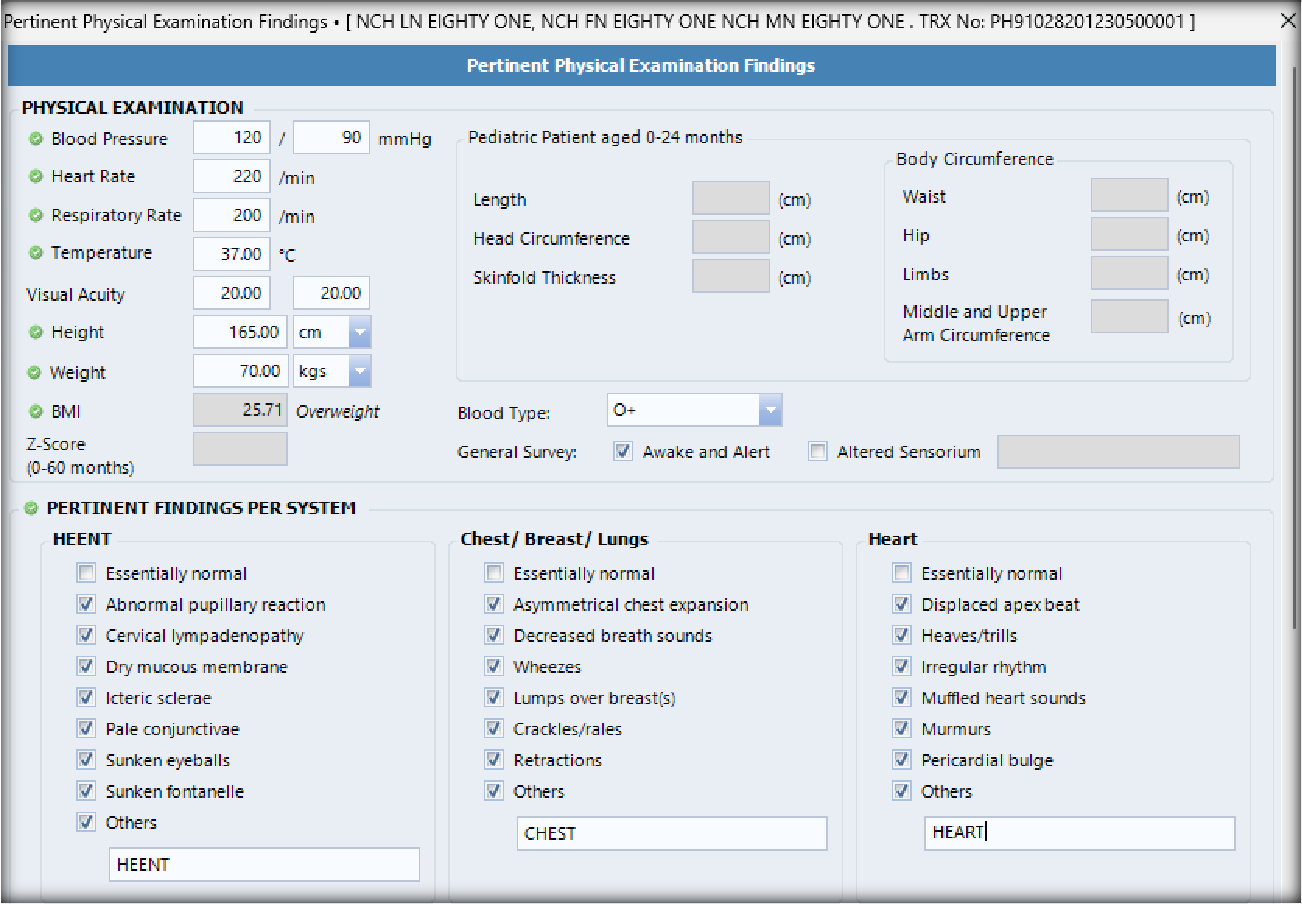

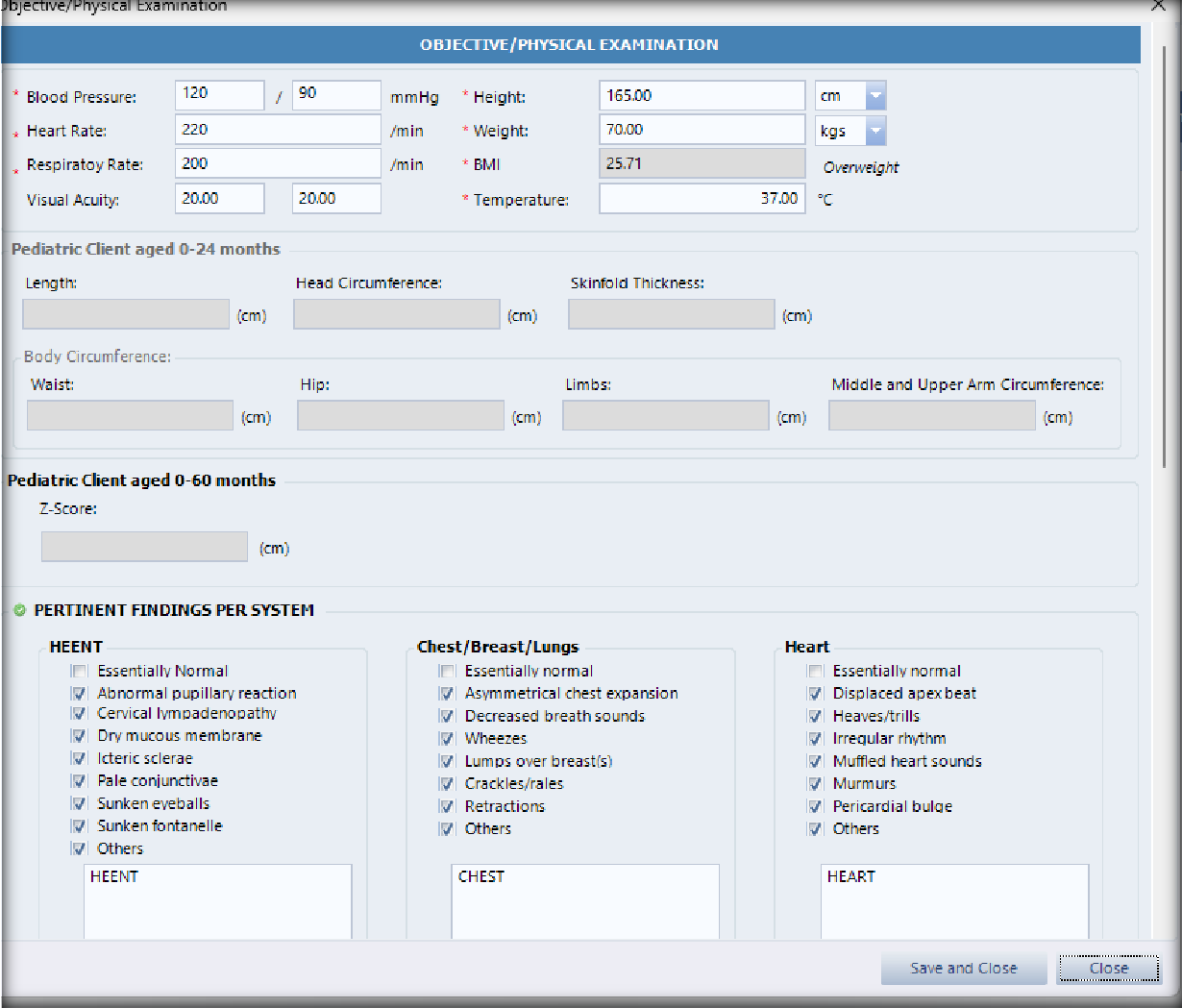

Pertinent Physical Examination Findings
  1. Physical Examinations – encode the vital signs of patient at the time of Health Screening

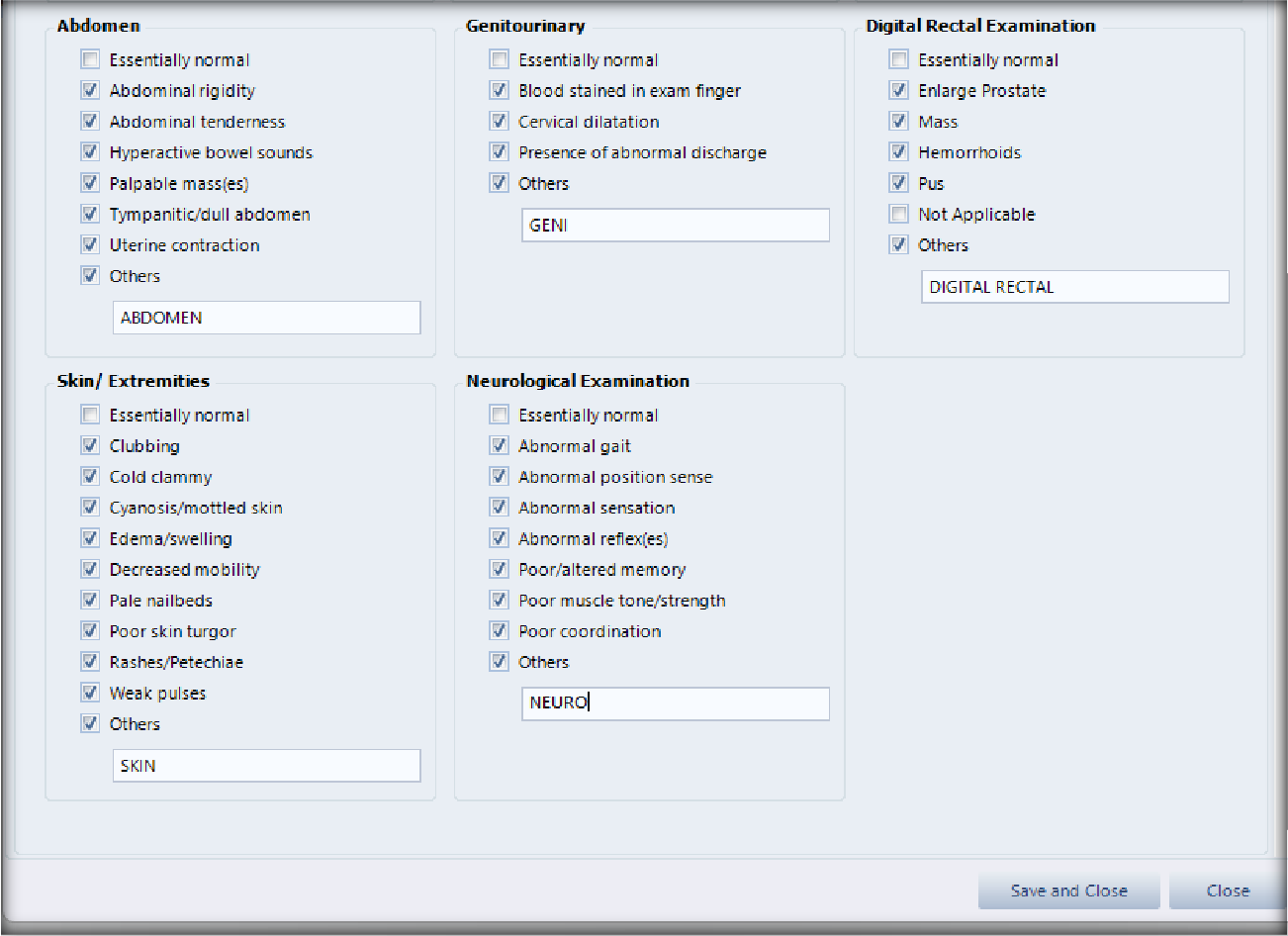

  2. Pertinent Findings per System – check all applicable for patient condition



SPECIAL SCENARIO:

Vital Signs for 0-24 Months
The following fields will be enabled:
1. Pediatric Patient aged 0-24 months
  1. Length (cm)
  2. Head Circumference (cm)
  3. Skinfold Thickness (cm)
2. Body Circumference
  1. Waist (cm)
  2. Hip (cm)
  3. Limbs (cm)
  4. Middle and Upper Arm Circumference (cm)
3. Z-Score – will be computed based on provided computation of Philhealth

Vital Signs for 24-60 Months
1. Z-Score – will be computed based on provided computation of Philhealth

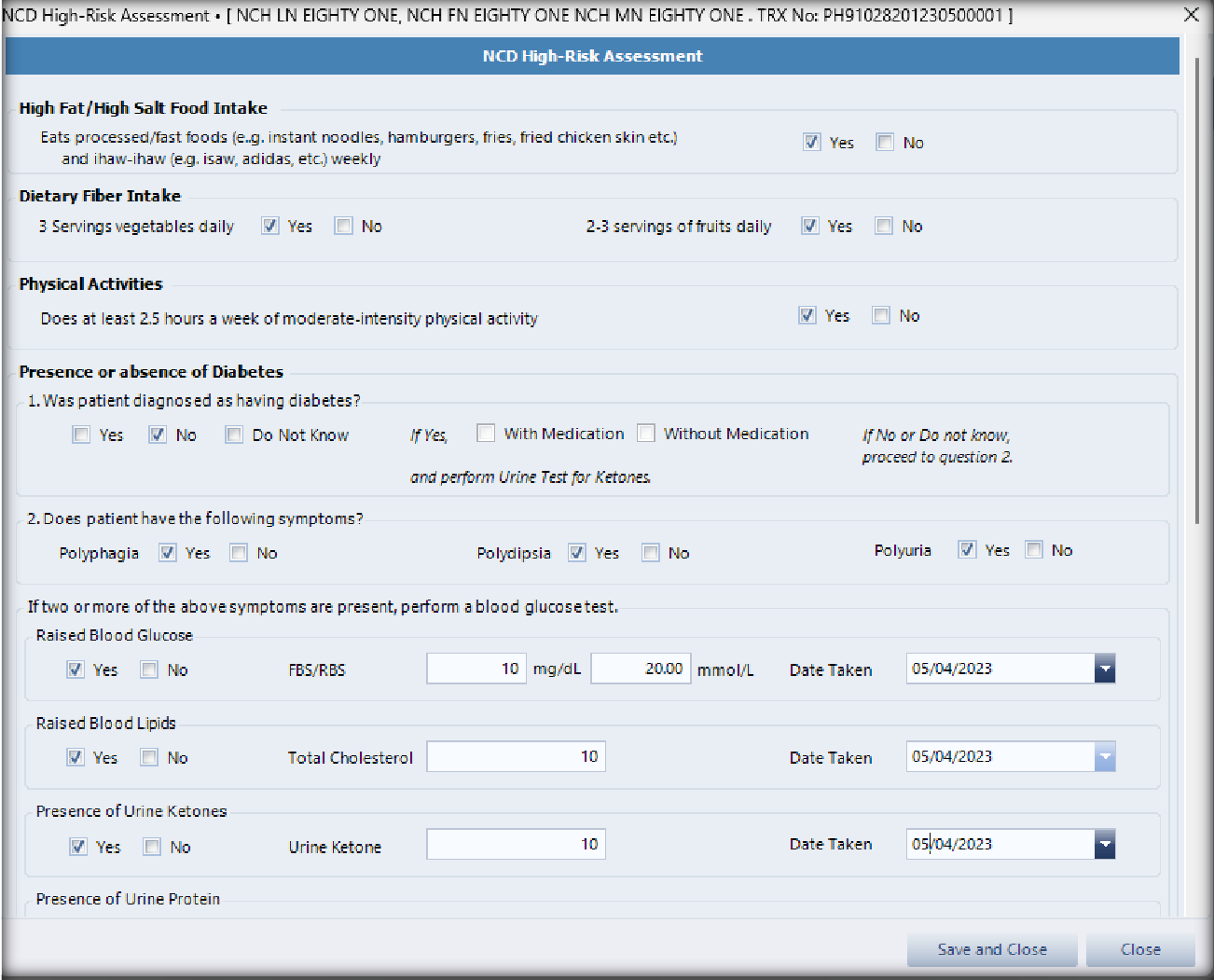

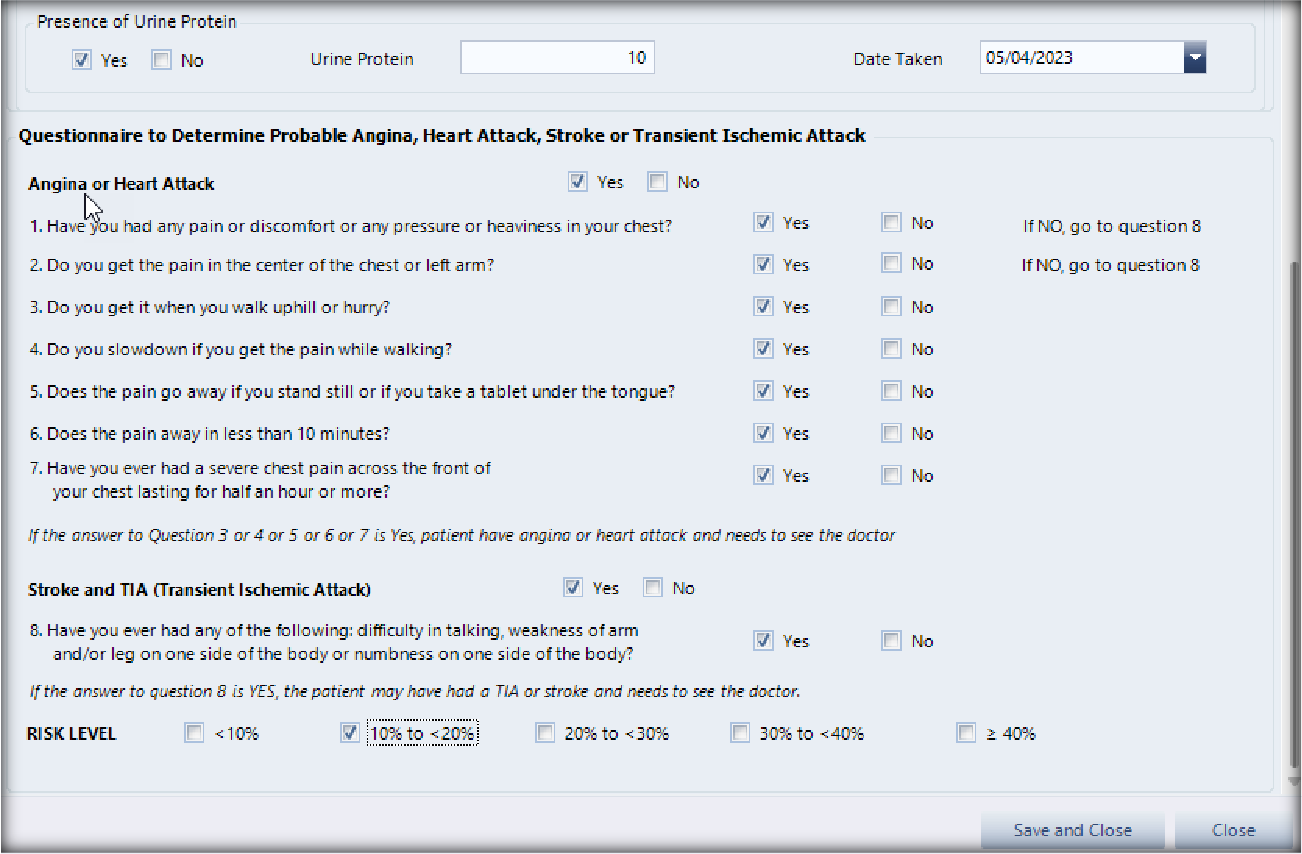

NCD High Risk Assessment
Check and encode all applicable for patient’s condition

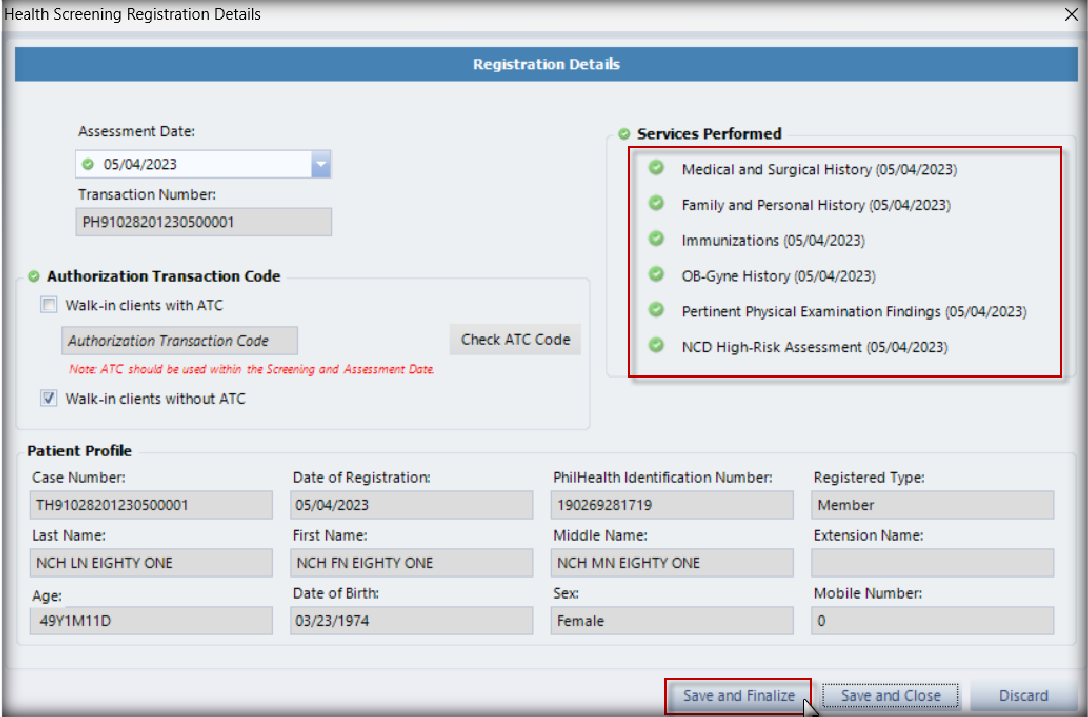

FINALIZATION OF HEALTH SCREENING RECORD
  1. Click on the edit button to Finalize the Health Screening. Clicking Finalize will serve as an indicator that the record can be forwarded to Consultation Module.
  2. The system also has a checklist of the Health Screening Module to serve as a guide for our user during the finalization.

CONSULTATION
  1. In Homepage, click on Consultation

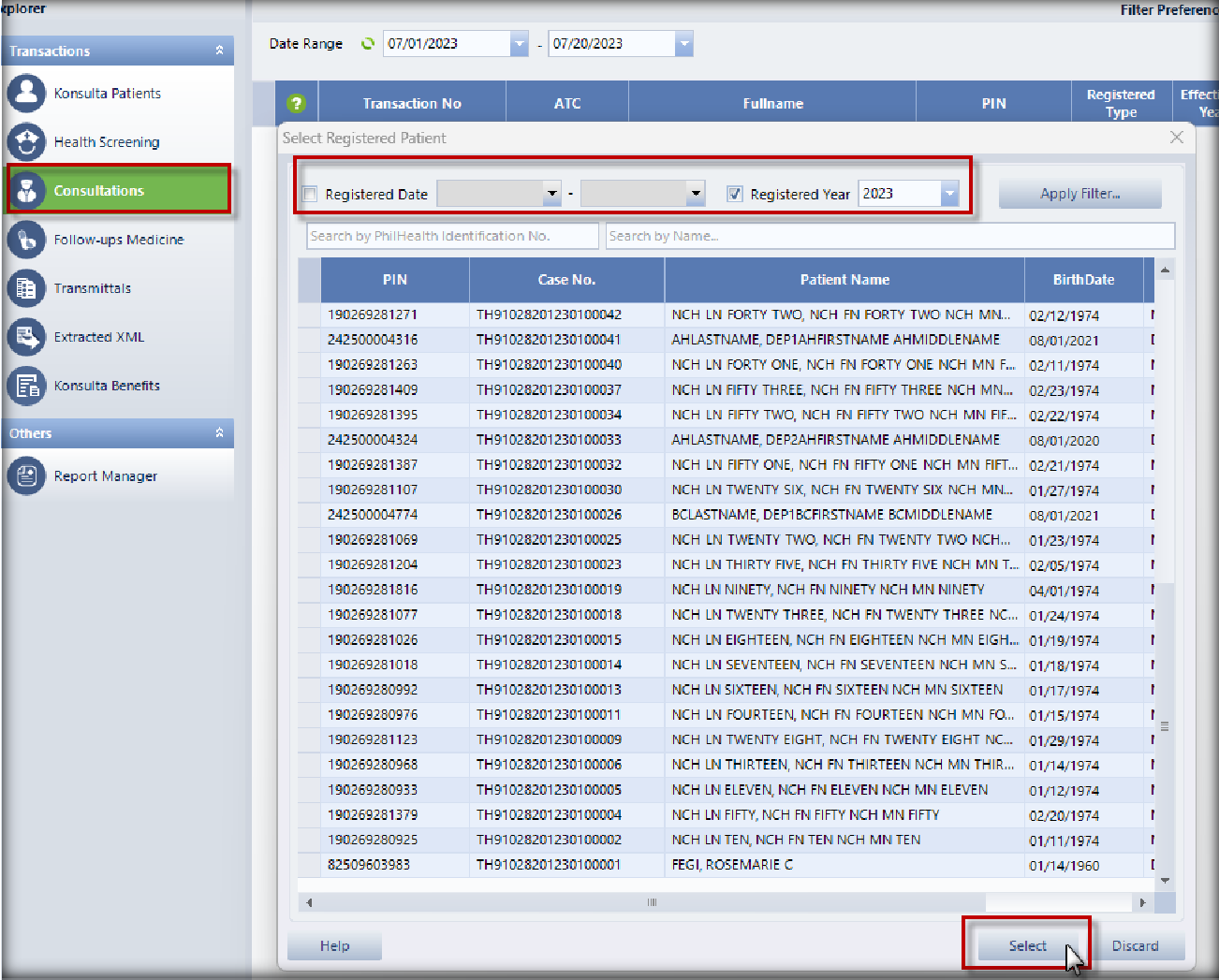

  2. Click on Create New. The system will load the patients from Konsulta Patients with Health Screening Record.
  3. Highlight a patient and click on Select button
4. Registration Details will load.
5. Make input on Consultation Date
6. Make input on Co-Payment if applicable
7. In Authorization Transaction Code (ATC) encode the Walk-in clients with ATC if the patient is with ATC from Philhealth. Otherwise check on Walk-in clients without ATC.
8. Click on Check ATC to Validate if the code is correct.
9. Message response will appear
  1. ATC Code is VALID

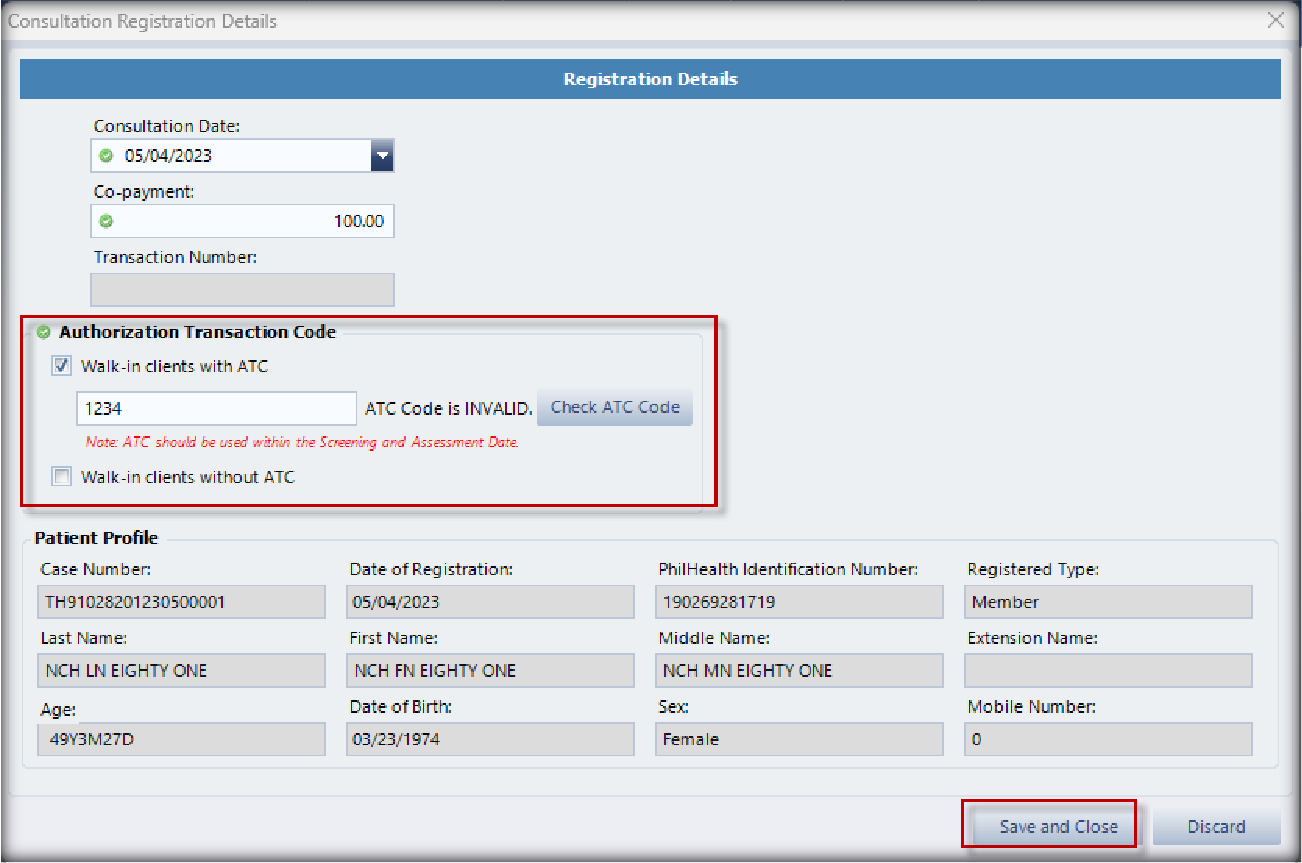

  2. ATC Code is INVALID


10. Click on Save and Close to exit the form
11. Make input on user password validation to proceed.

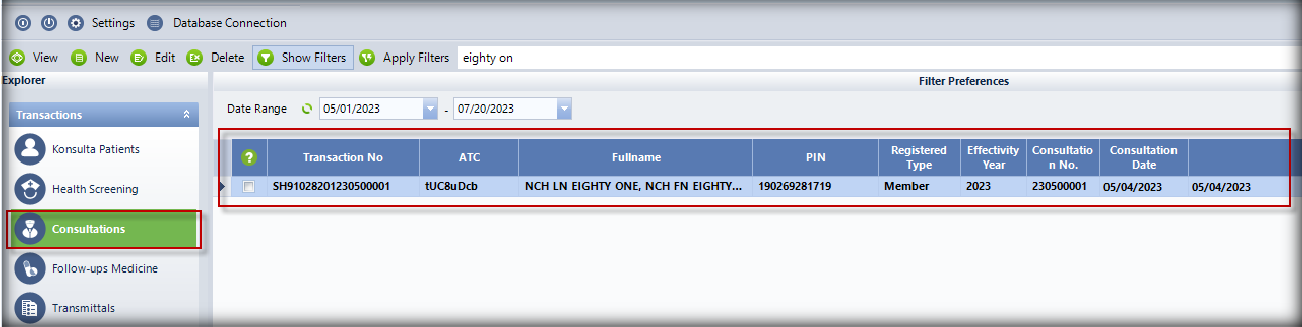

12. The patient will now display in Consultation main grid

13. The Consultation record will automatically create a new registration in OPD. Here are the following process needed for OPD registration from eKonsulta
  1. Edit the registration to assign Doctor
  2. Charge medicine/procedure to the record of patient
  3. Process payment if there’s any excess

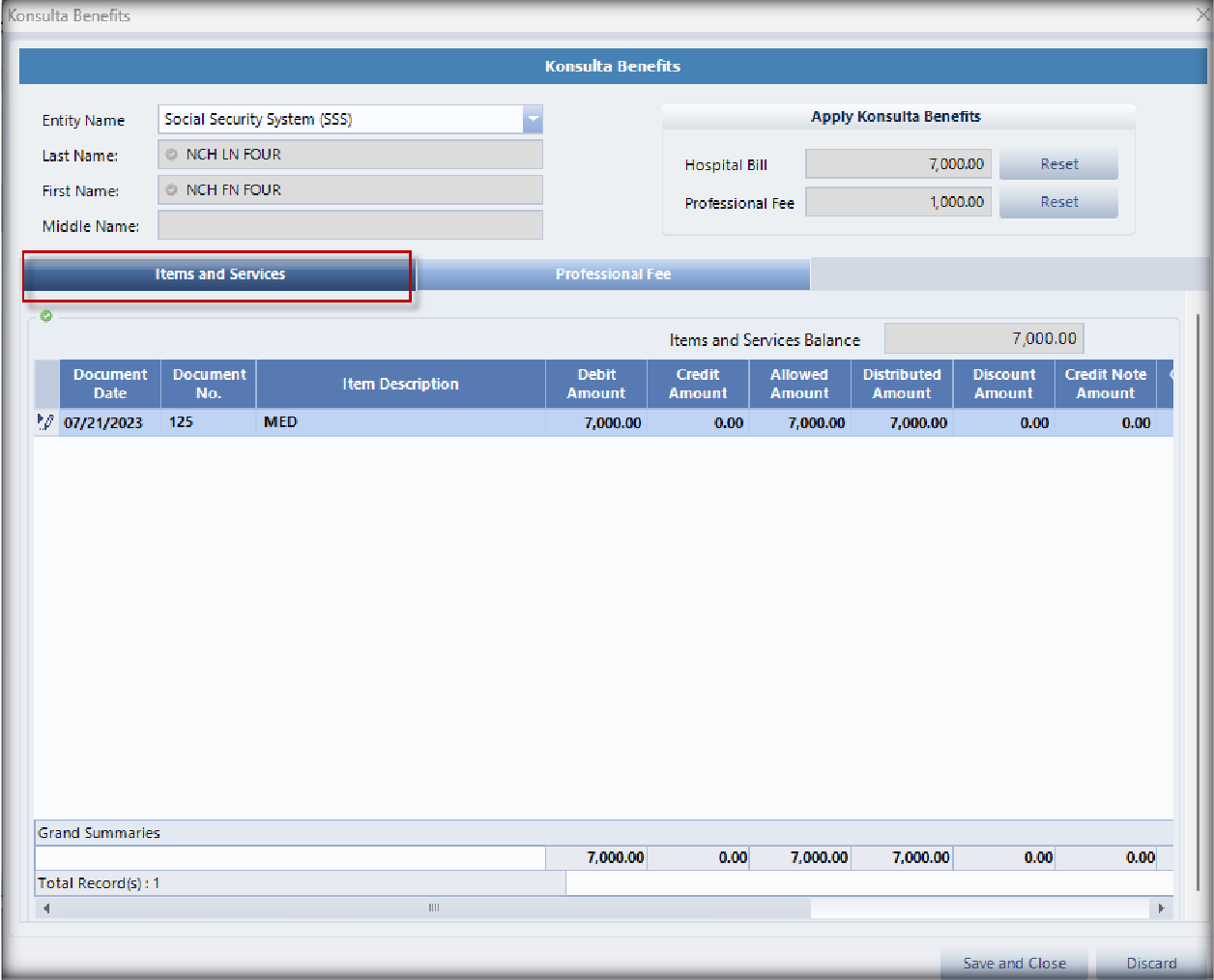

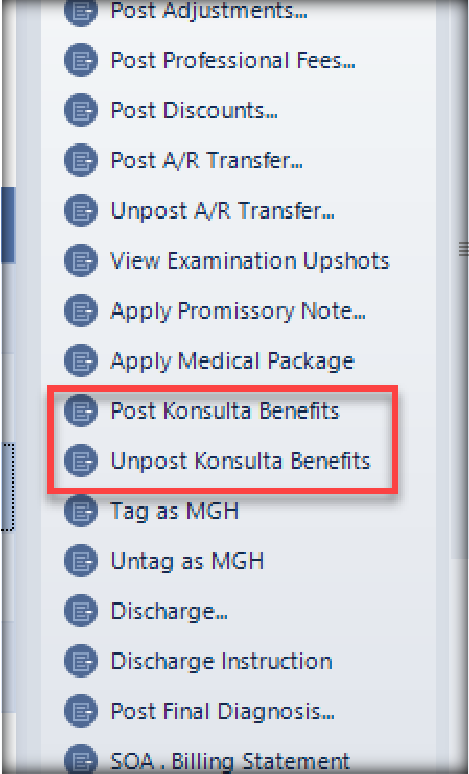

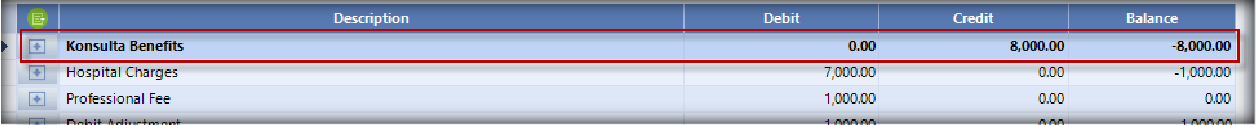

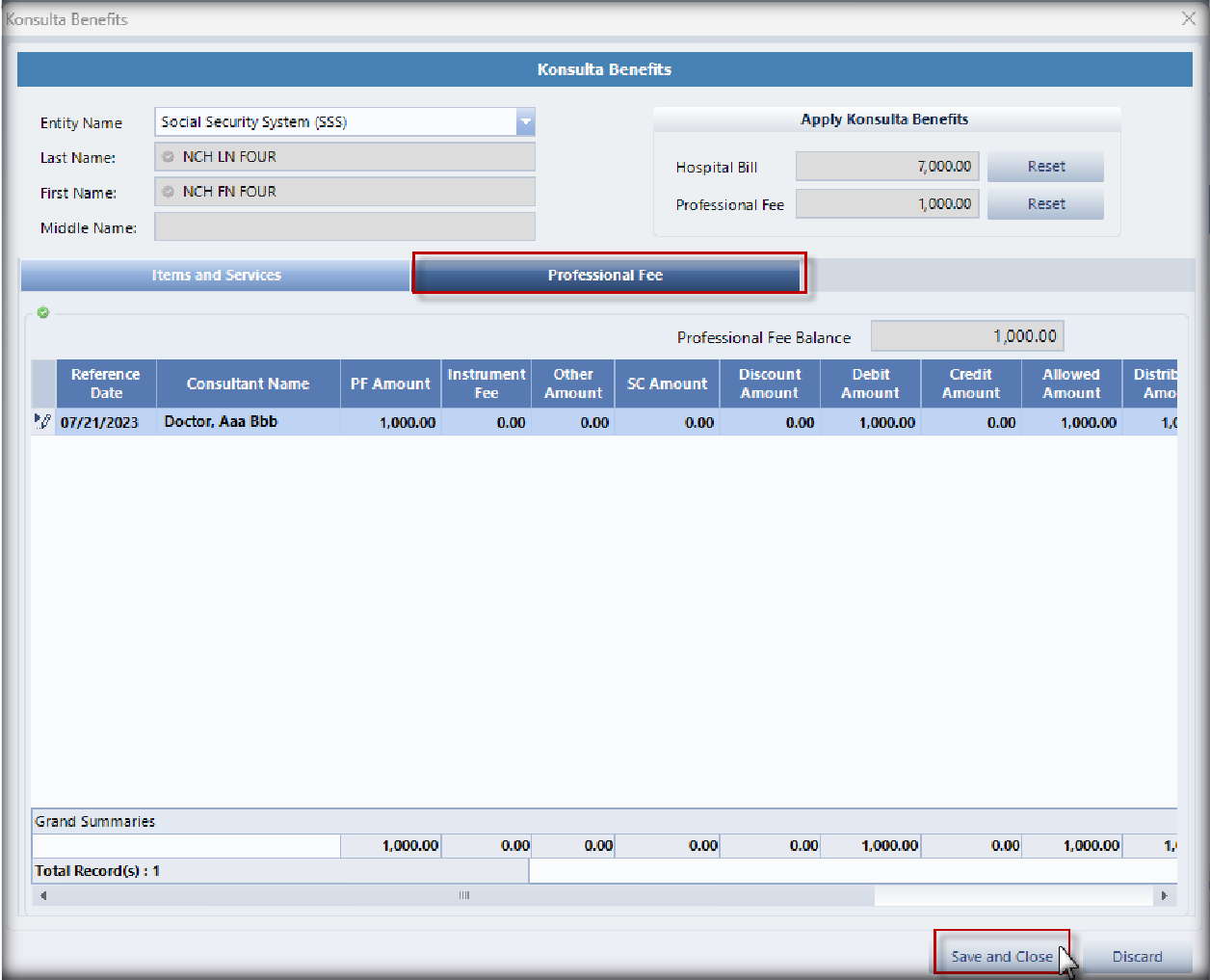

  4. Process Konsulta Benefits

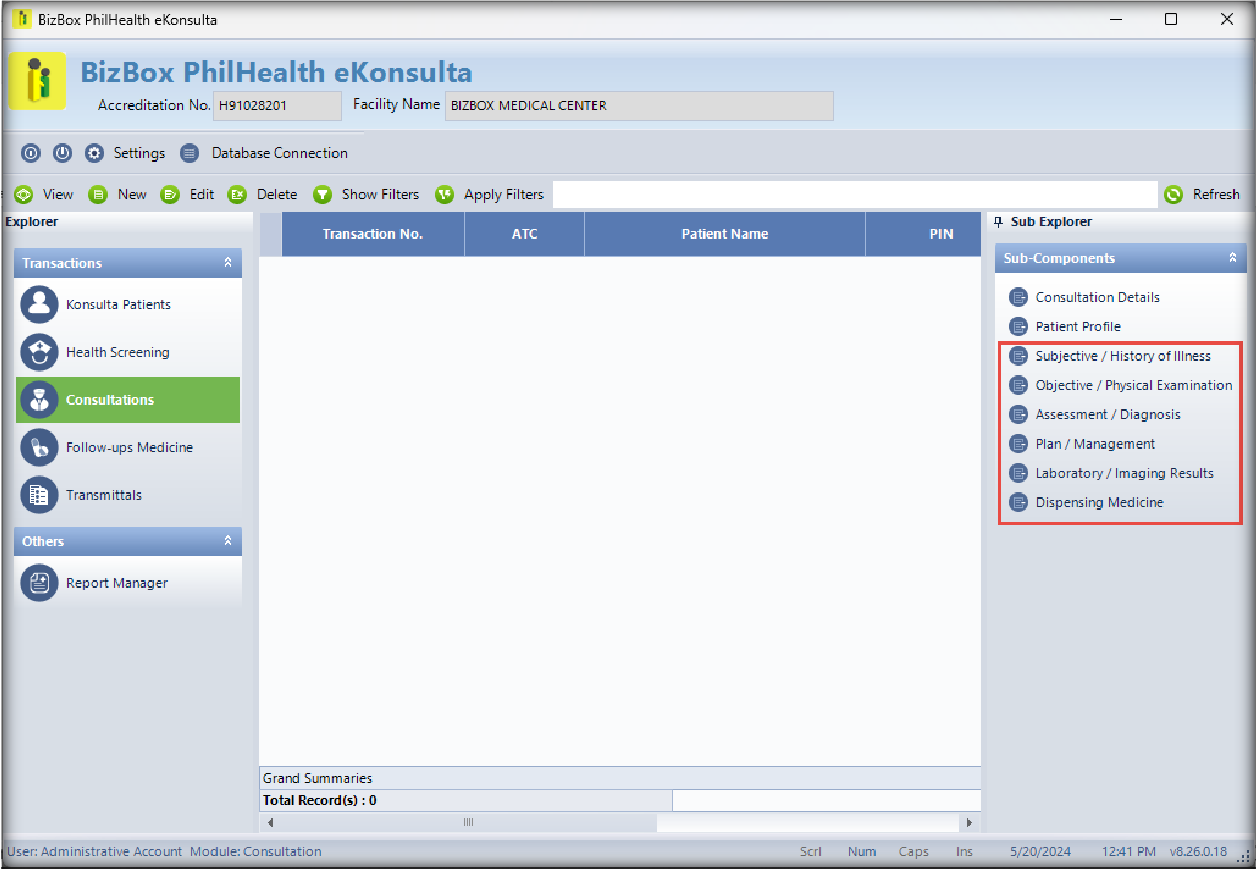

CONSULTATION SUBCOMPONENTS

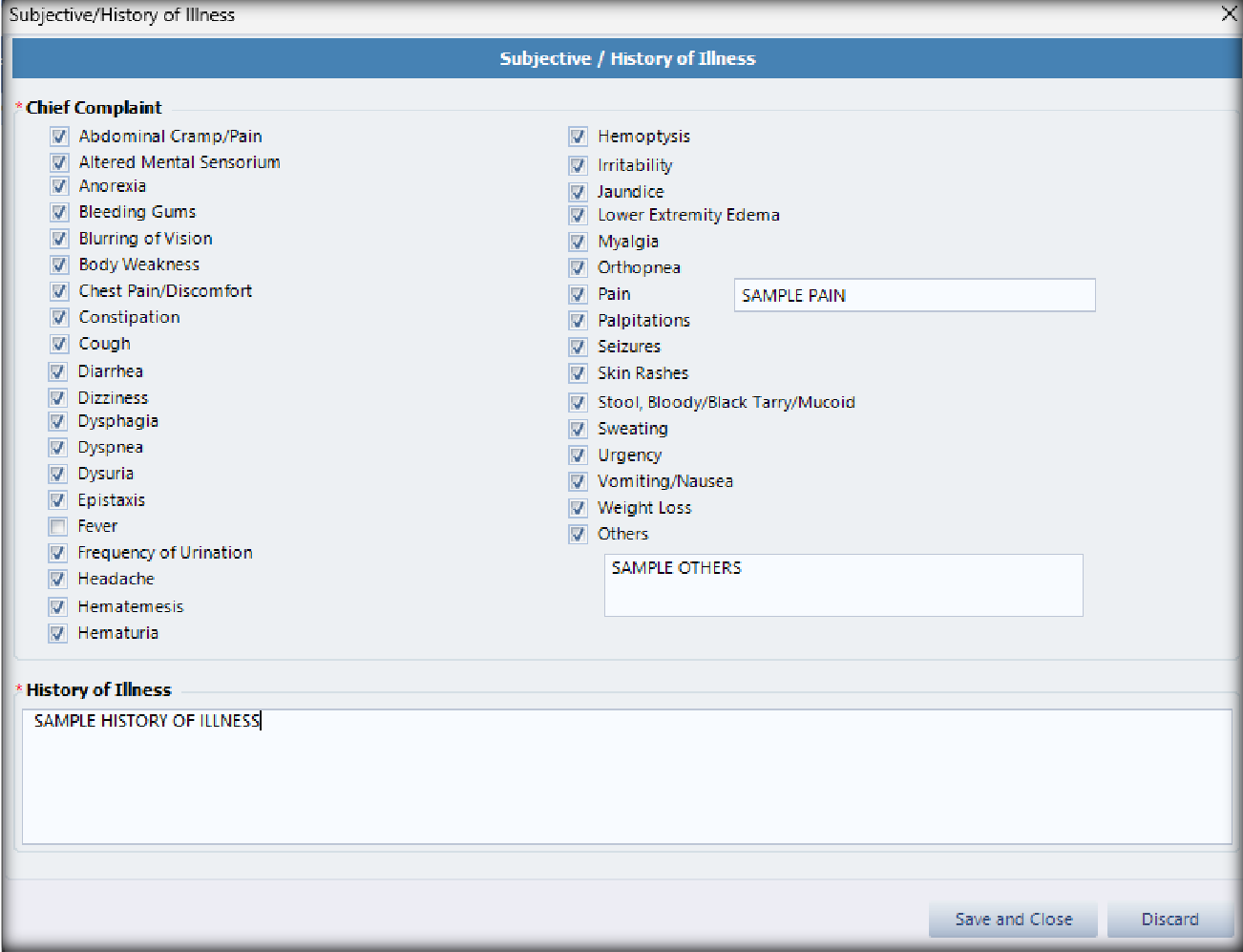

Subjective/History of Illness
  1. Chief Complaint – check all applicable for patient’s condition
  2. History of Illness – make input on the provided textbox

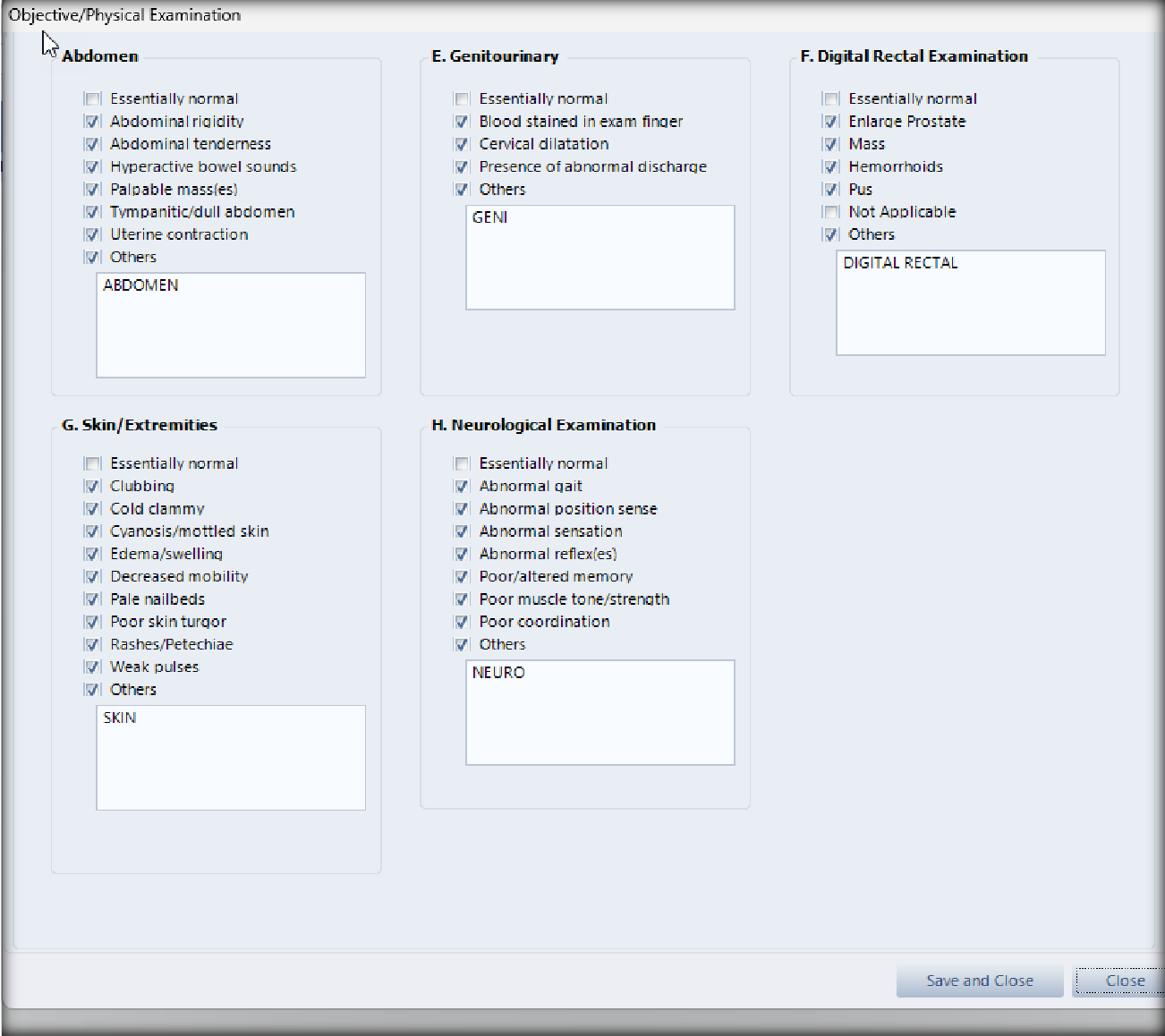

Objective/Physical Examination
The system extracts the Objective/Physical Examination but the user may edit if there are any changes from the last Health Screening.

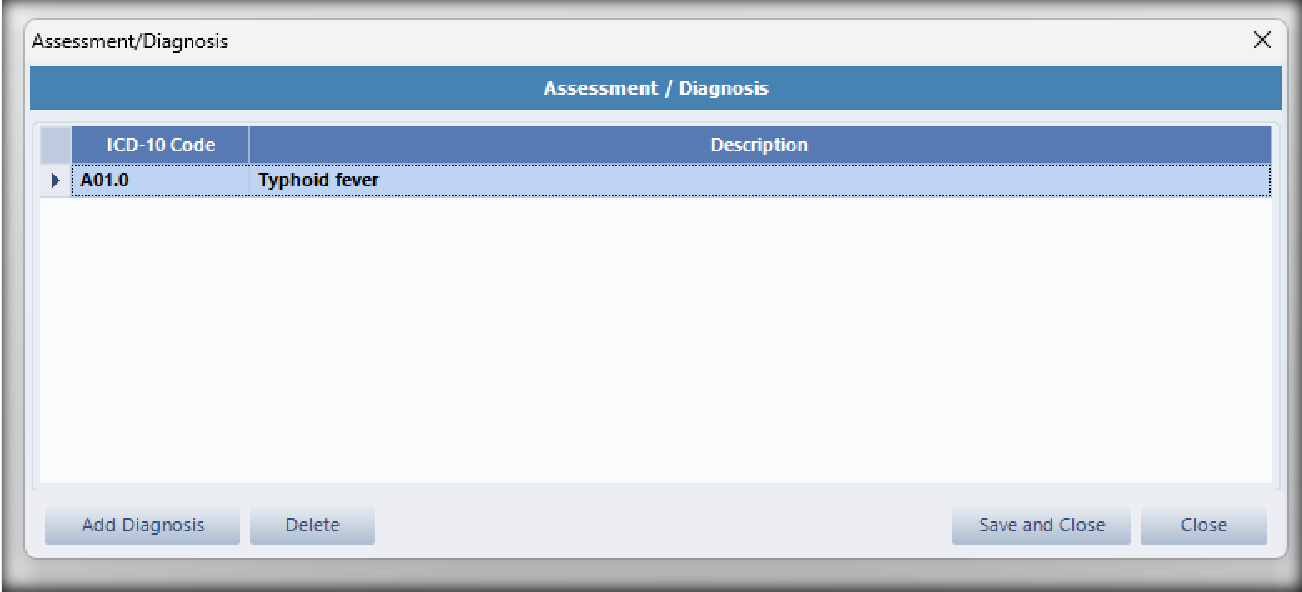

Assessment/Diagnosis

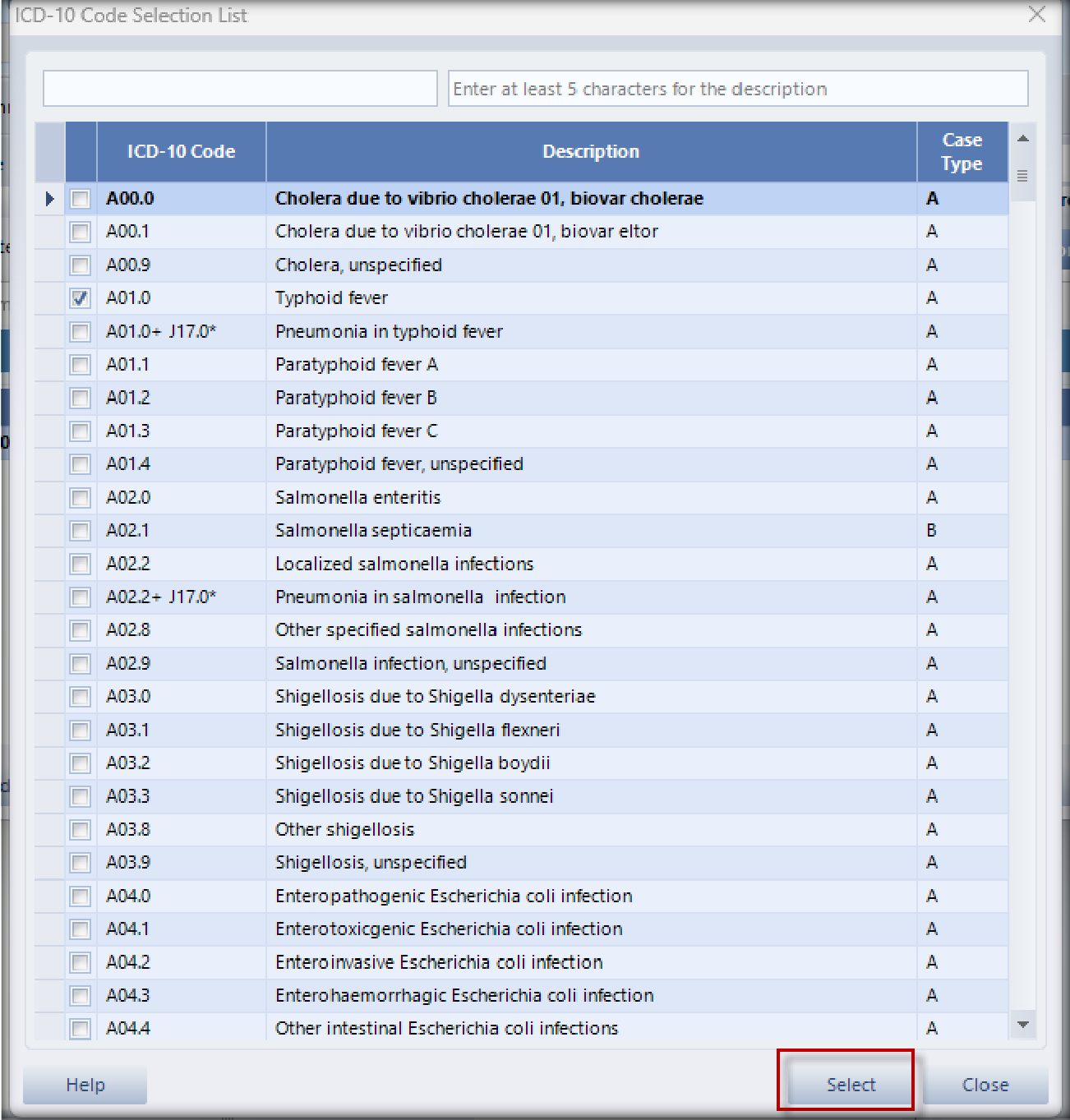

Click on Add Diagnosis and Select from ICD-10 list.

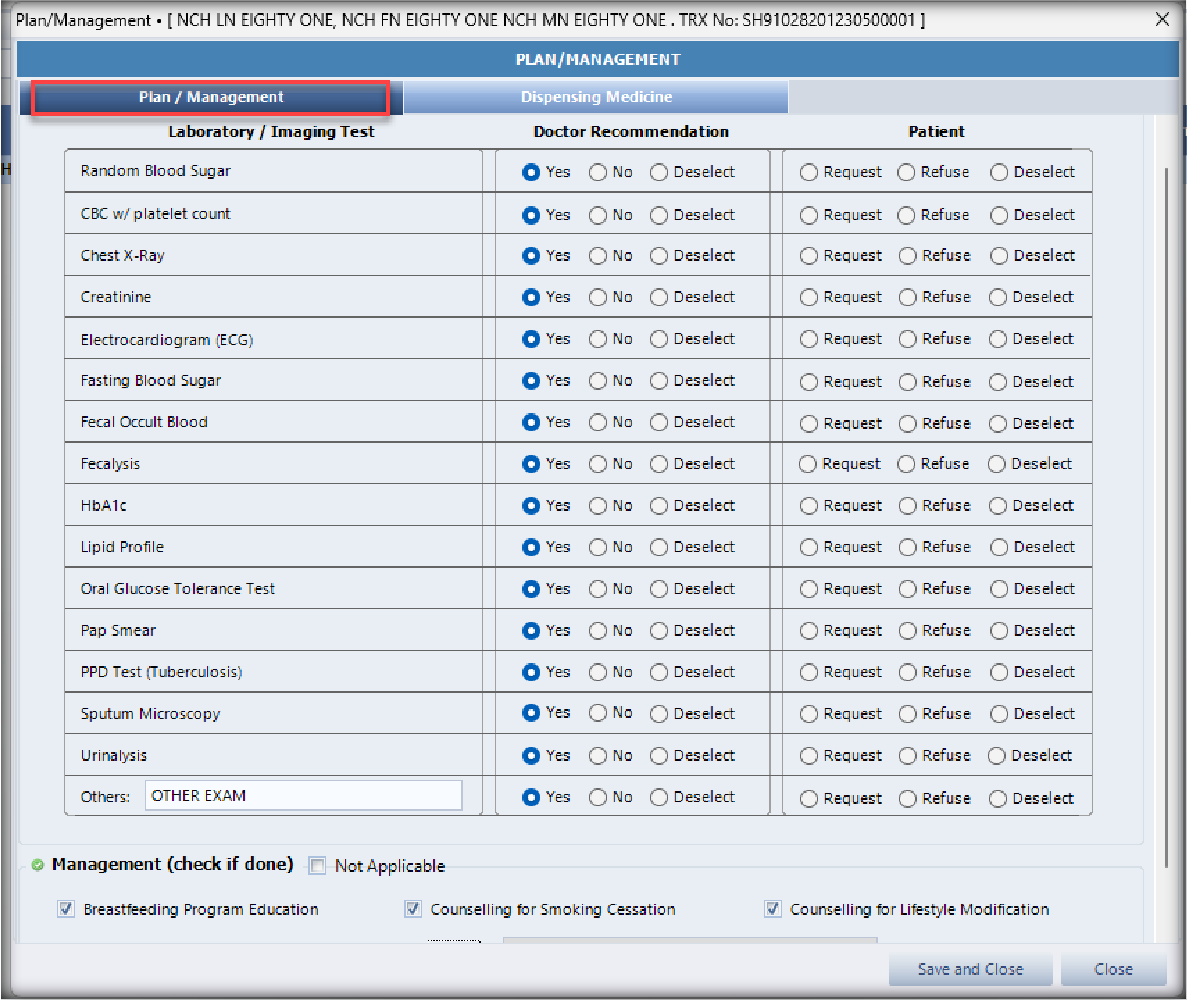

Plan/Management
  1. Plan - put a checkmark on the applicable Laboratory/Imaging Test for patient. If not on the list, make an input in OTHER EXAM text field.
  2. Management – check all applicable for patient’s condition

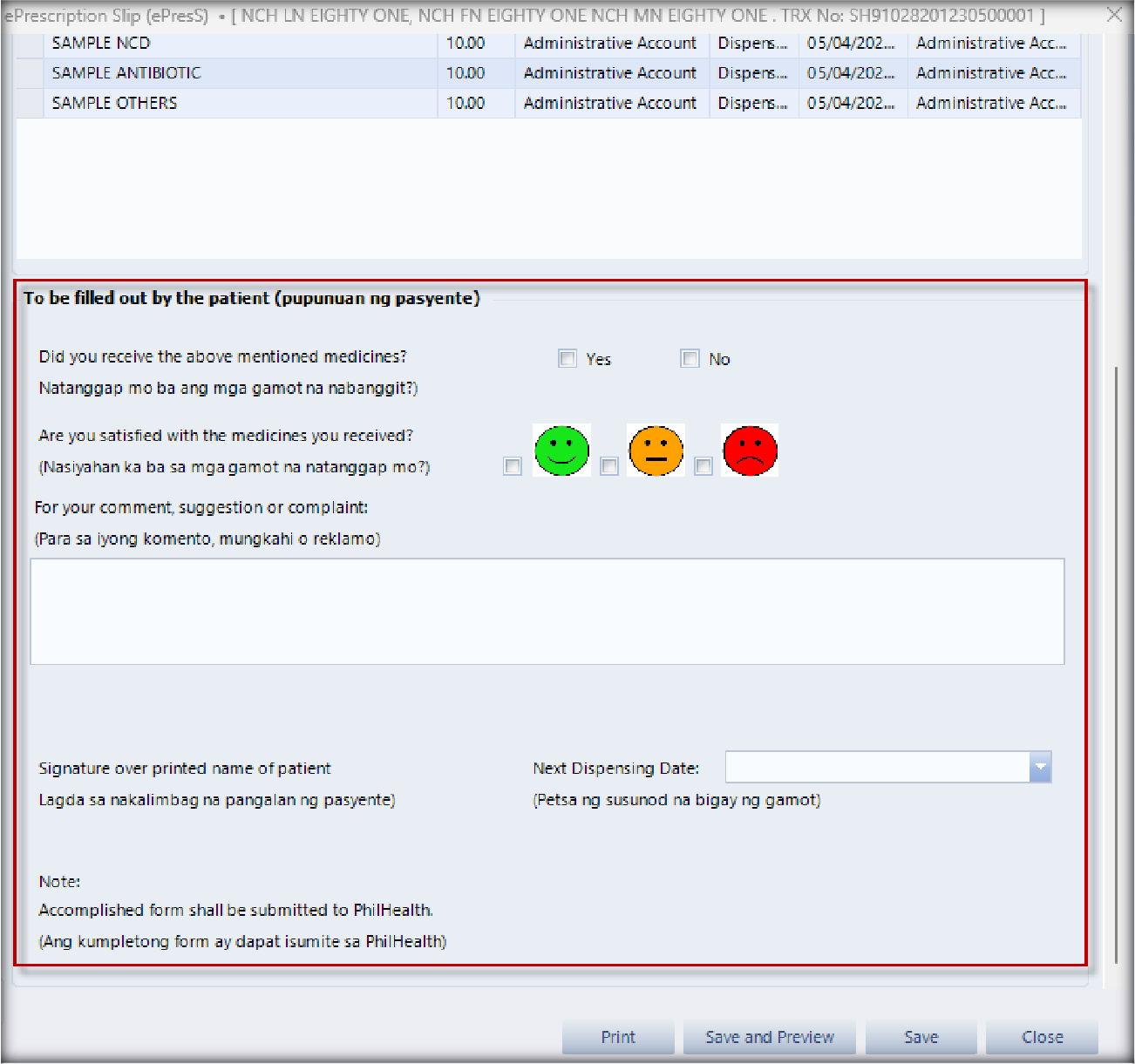

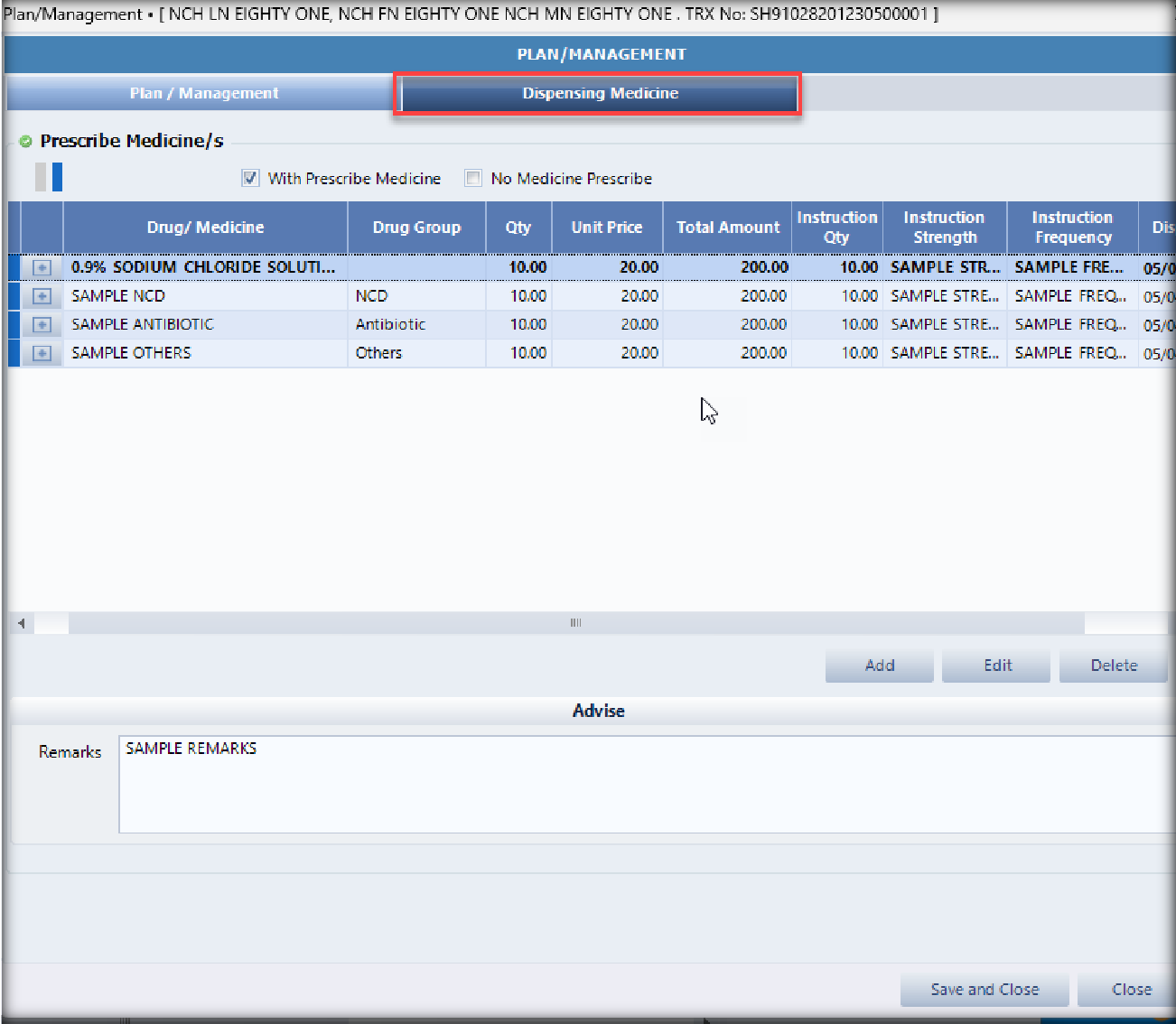

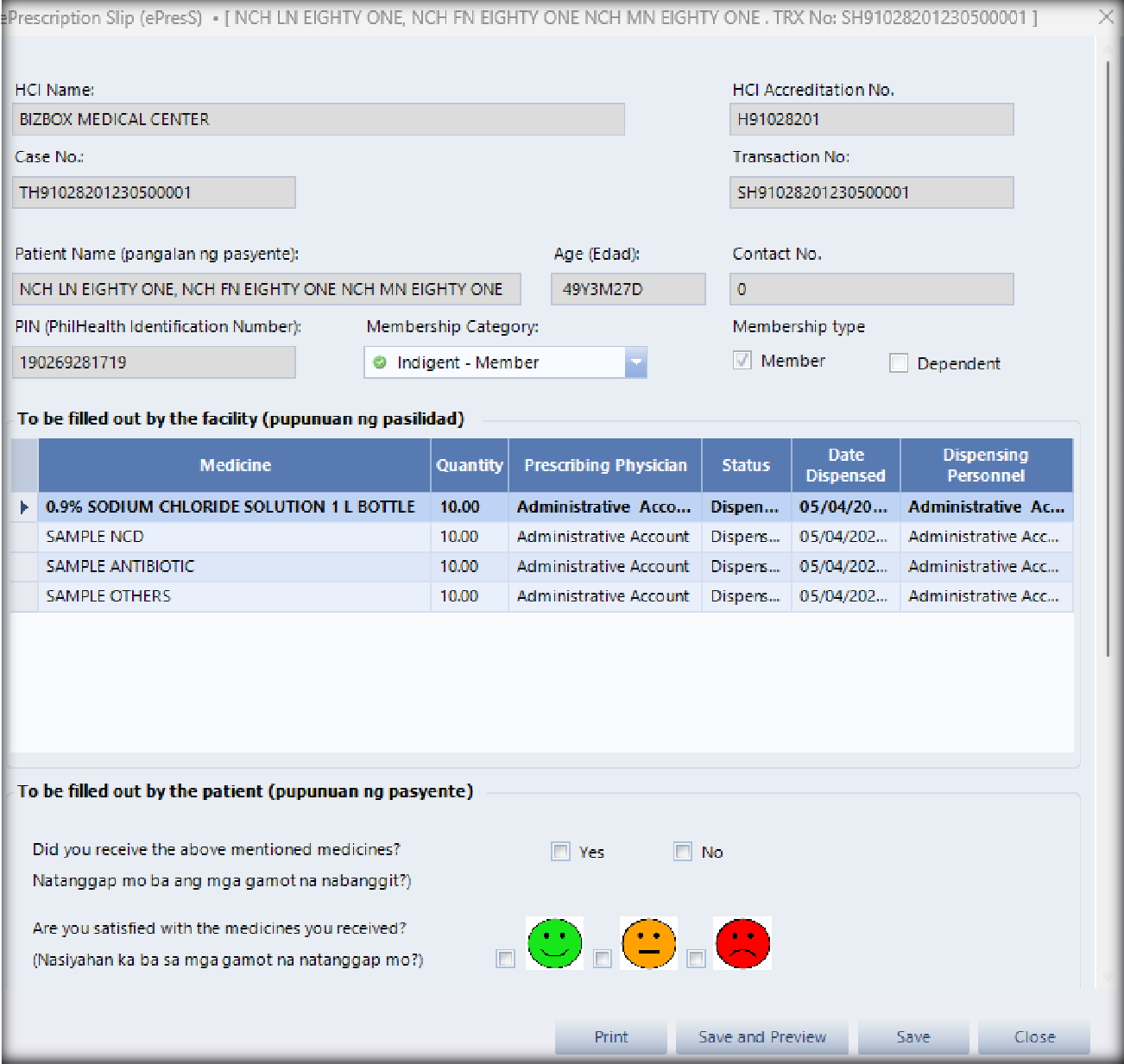

DISPENSING MEDICINE
  1. On click Dispensing Medicine tab, the system will display all the medicine charged to patient. It captures all the medicine charges from HIS to eKonsulta System as well as the manually encoded medicines.
  2. Make input on the Remarks field below.

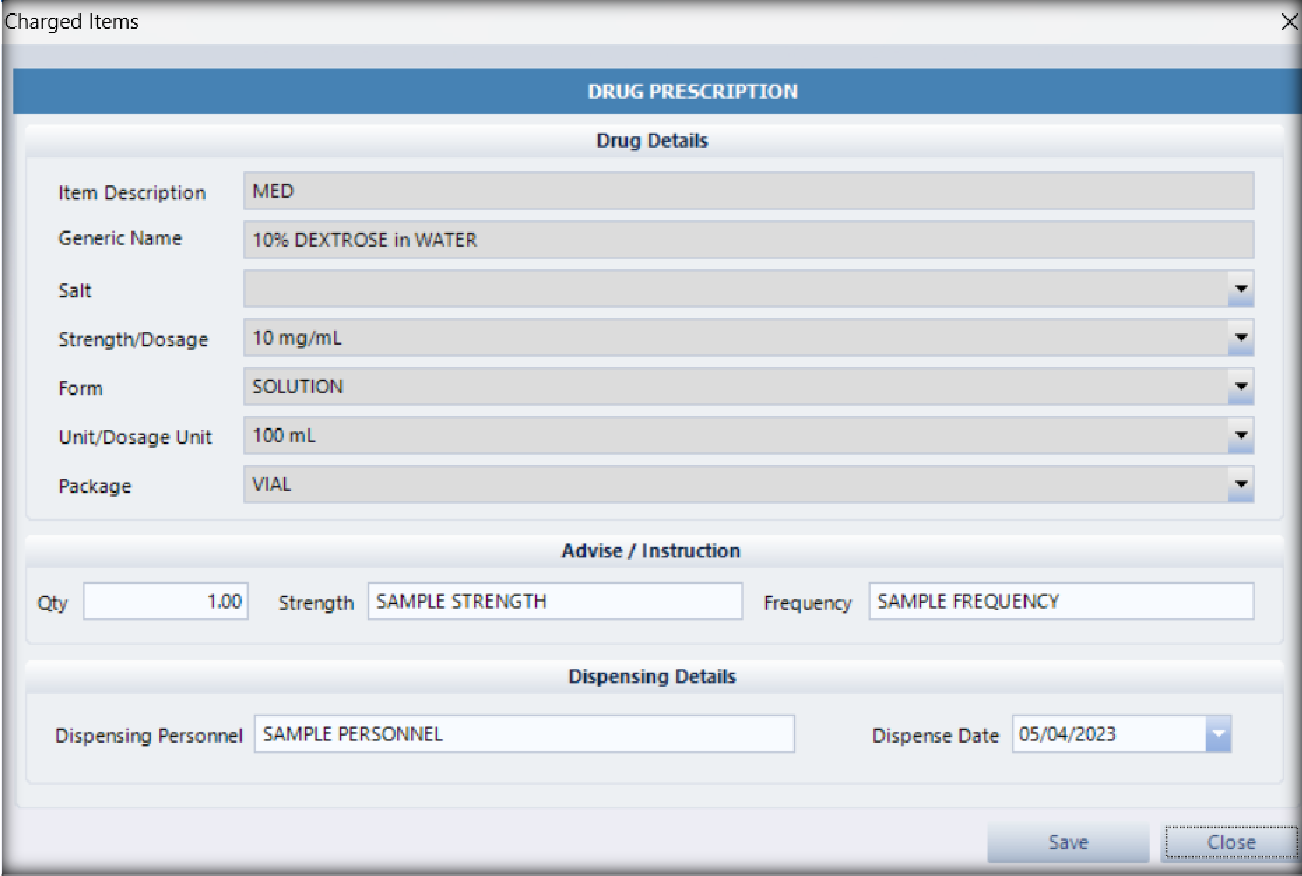

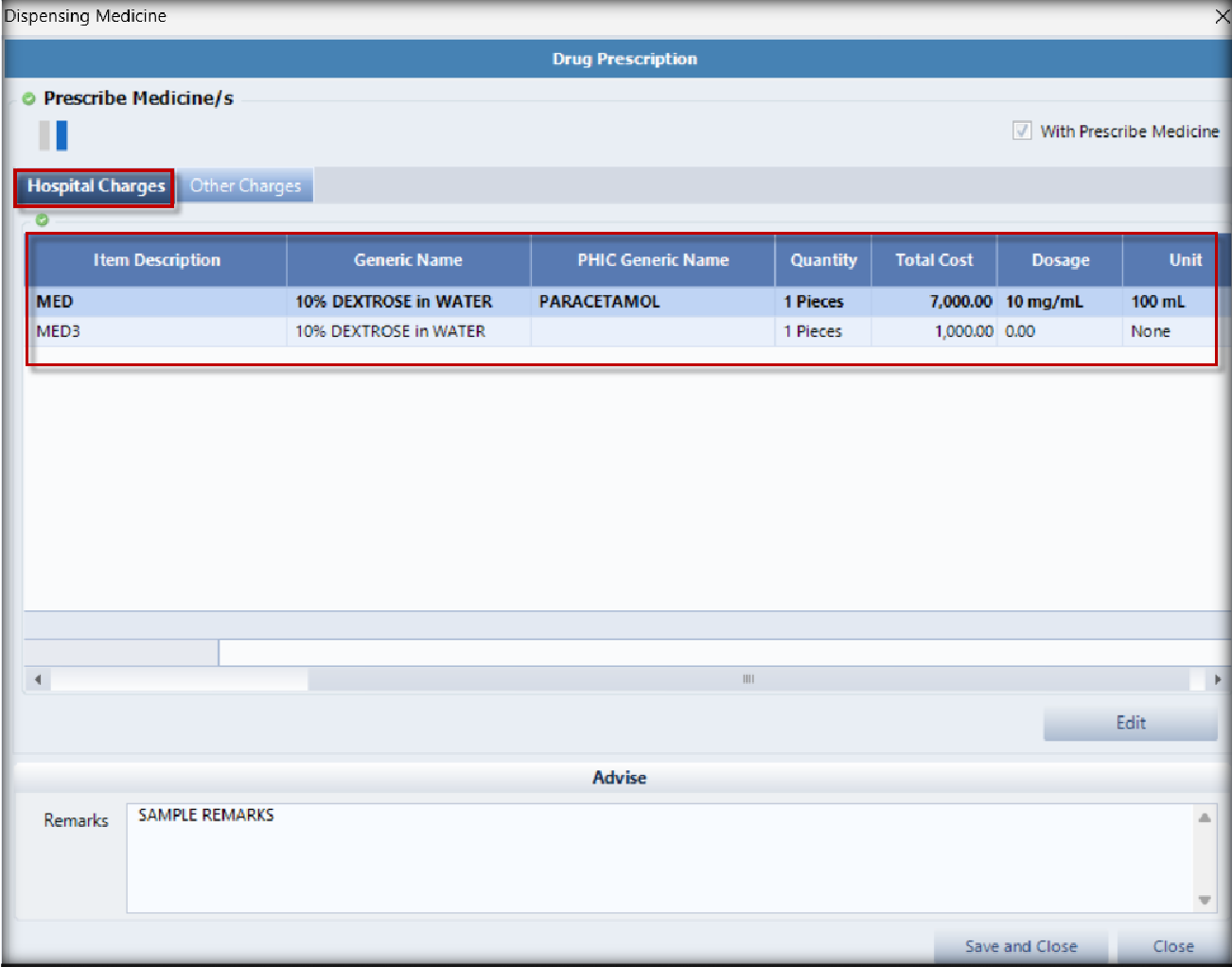

MEDICINES FROM HOSPITAL CHARGES TAB (HIS POST CHARGING)

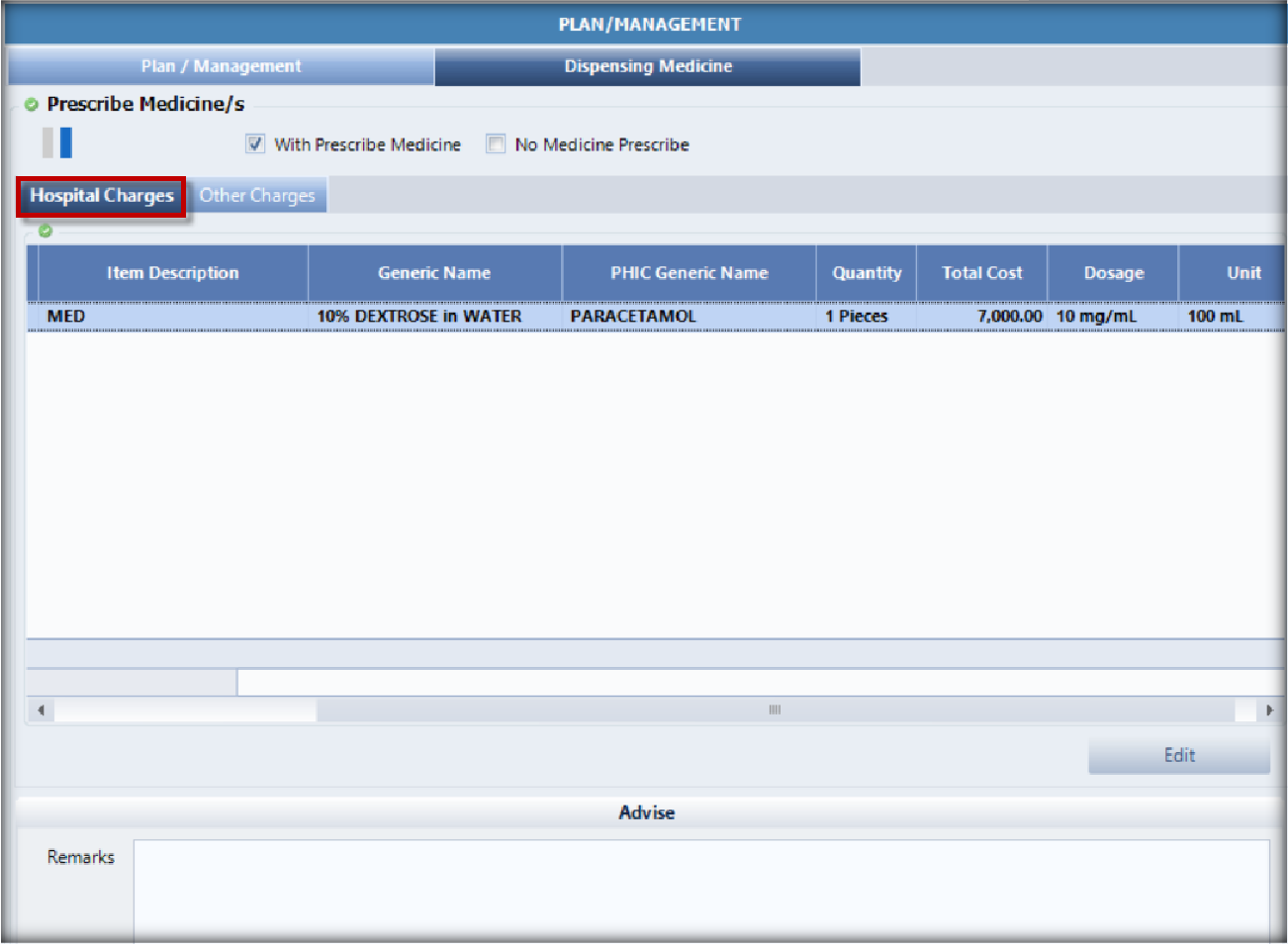

  1. In Dispensing Medicine, click on Hospital Charges. The system will display all the the medicines charged to patient
  2. Make input on remarks below

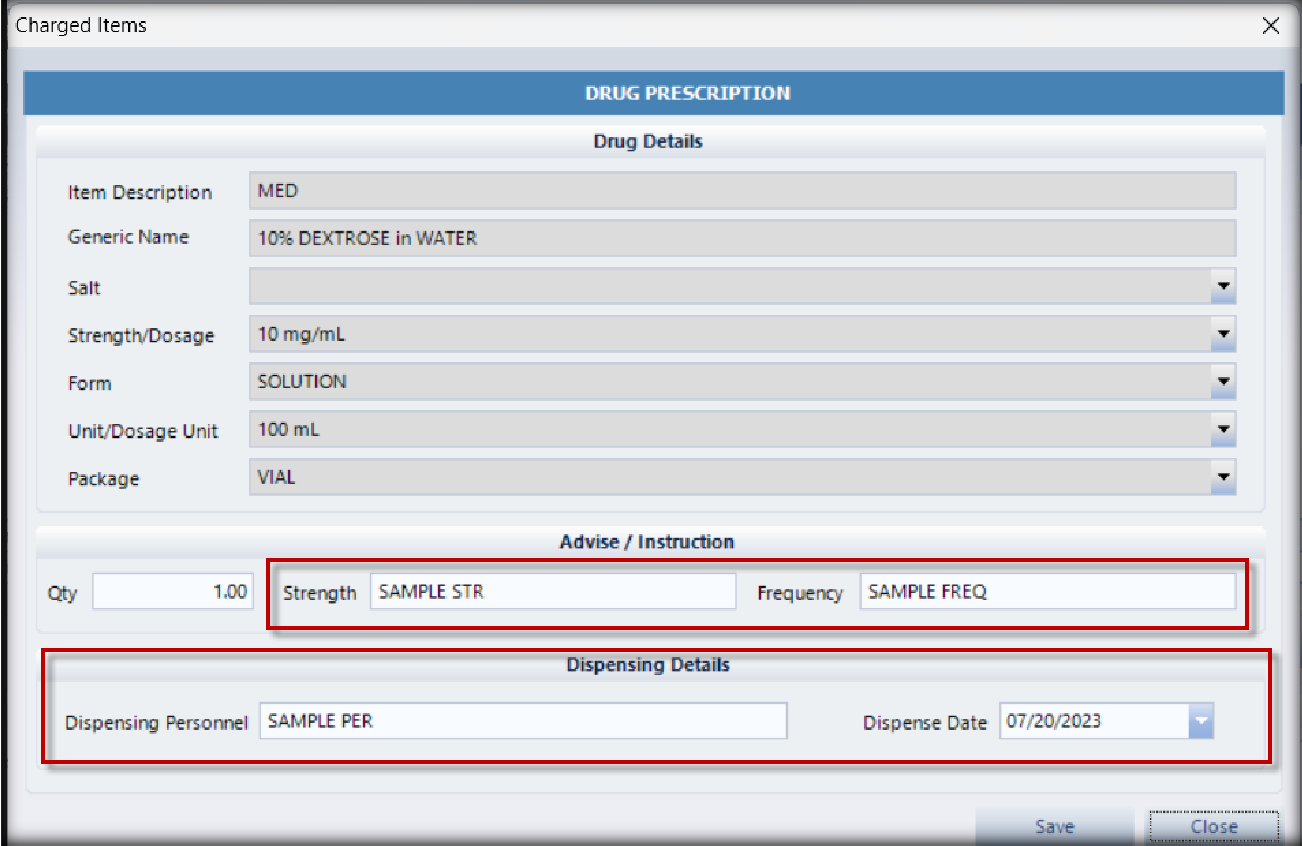

3. On edit, make input on the following fields
  1. Sample Strength
  2. Sample Frequency
  3. Dispensing Details (if checked)
i. Dispensing Personnel
ii. Dispense Date

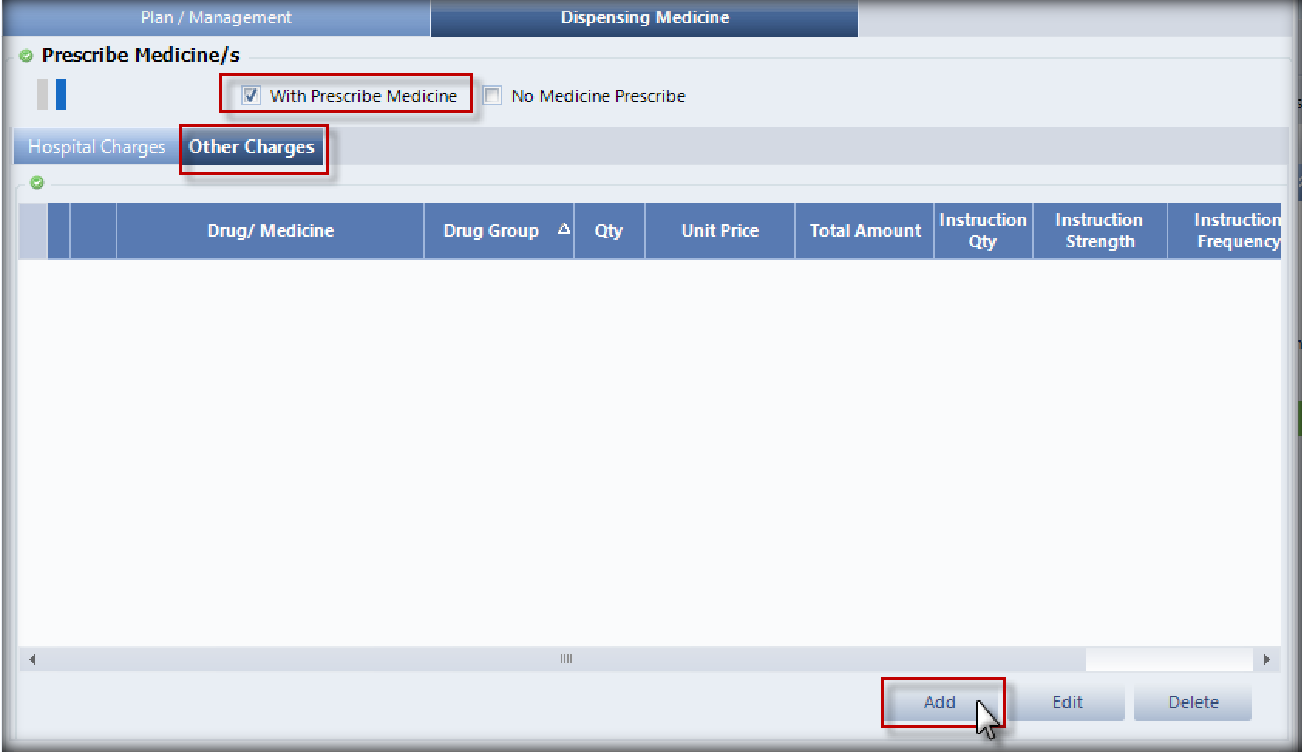

MEDICINES FROM OTHER CHARGES TAB

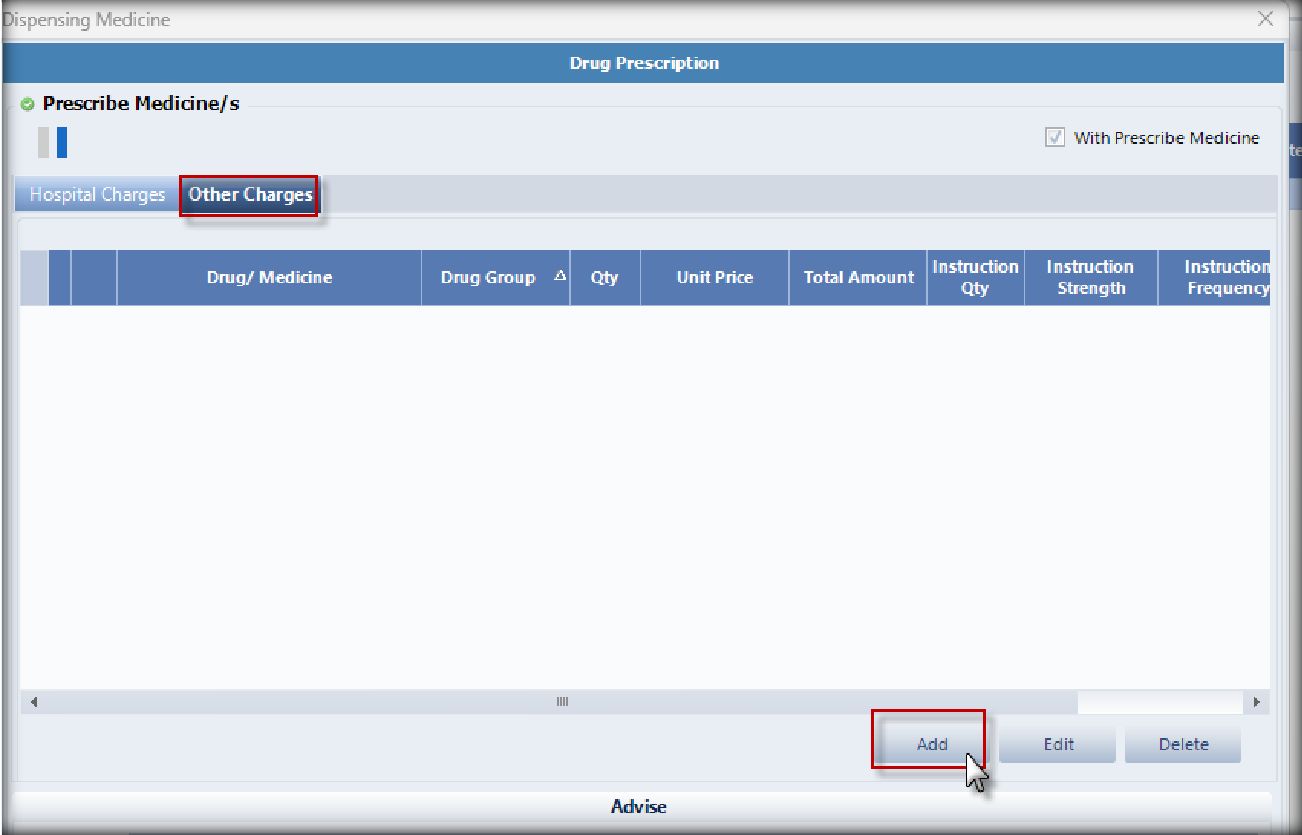

  1. In Dispensing Medicine, click on Other Charges tab.
  2. Click Prescribe Medicine to add Charges. Otherwise, click on No Medicine Prescribe.

MANUALLY ADDED MEDICINE WITH EXISTING GENERIC NAME
  1. Make input on Prescribing Physician

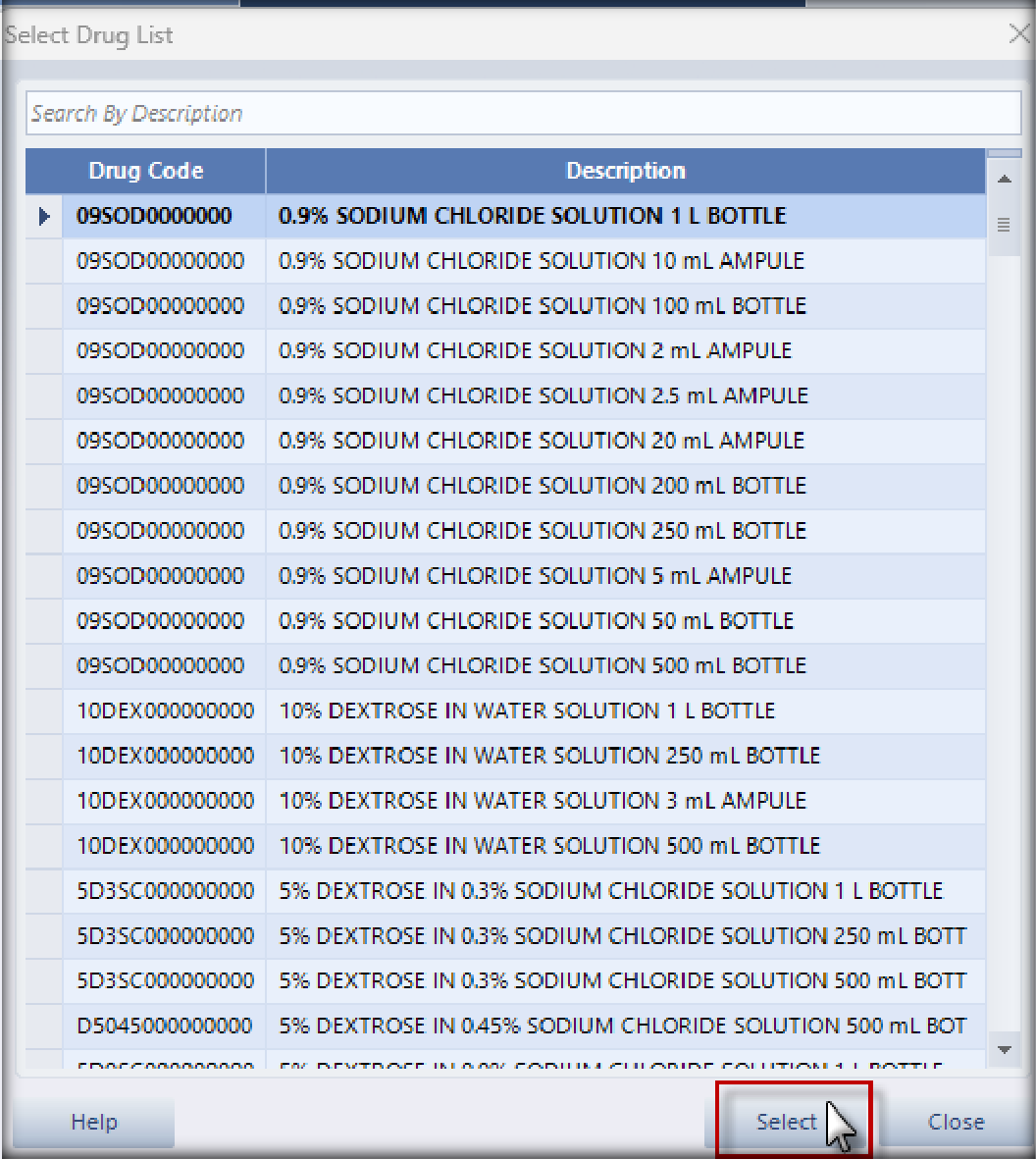

  2. Click on Get Drug/Medicine and select


3. Selected Drug Medicine will display in Drug Details form

4. Make input on the following fields
  1. Quantity
  2. Unit Price
  3. Quantity
  4. Sample Strength
  5. Sample Frequency
  6. Dispensing Details (if checked)
i. Dispensing Personnel
ii. Dispense Date

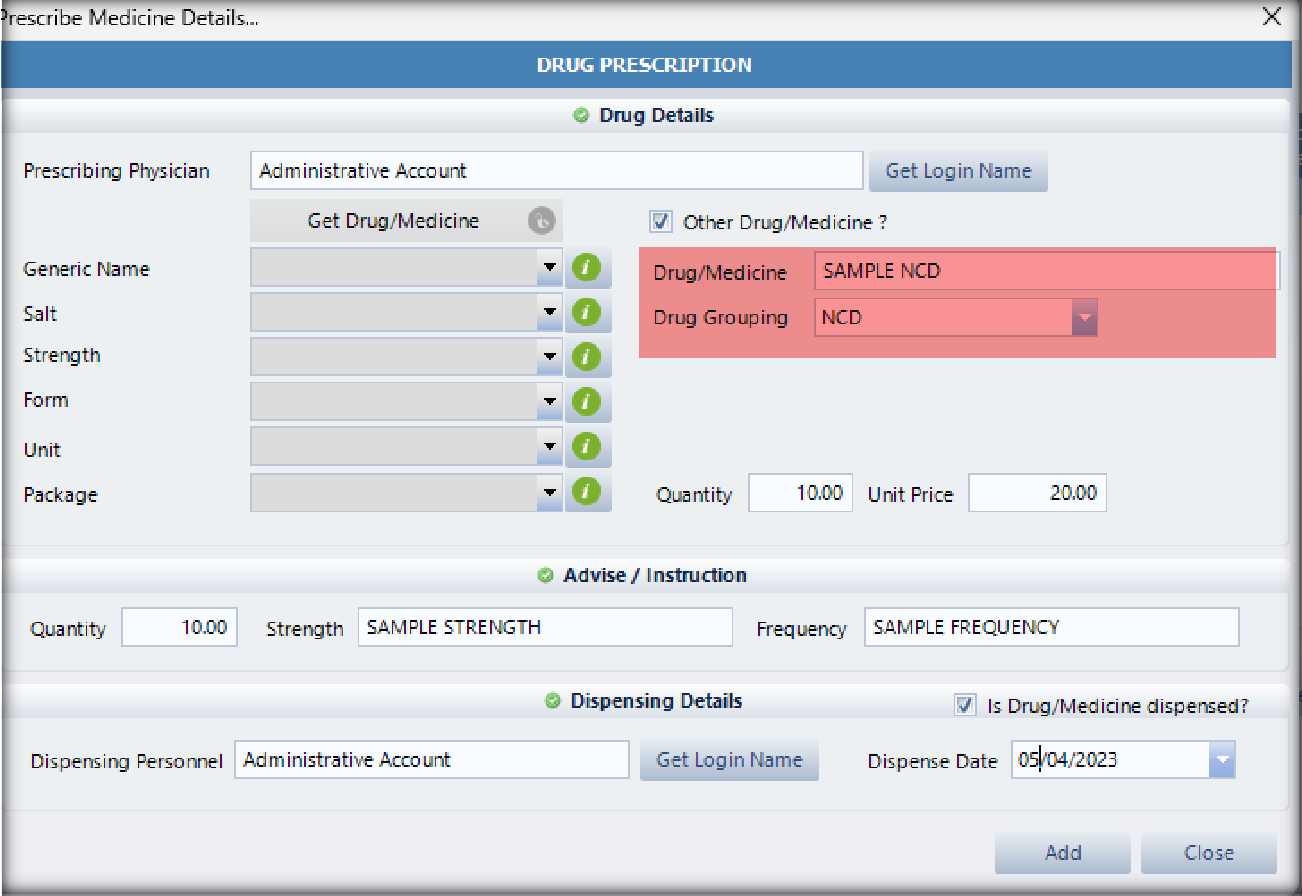

MANUALLY ADDED MEDICINE – OTHER DRUG/MED – NCD
  1. Click on Other Drug/Medicine checkbox
  2. Make input on Drug/Medicine. The recommended input on this field should be same in CF4 Outside Charges Medicines
  3. Select form Drug Grouping - NCD
  4. Make input on the following fields
a. Quantity
b. Unit Price
c. Quantity
d. Sample Strength
e. Sample Frequency
f. Dispensing Details (if checked)
i. Dispensing Personnel
ii. Dispense Date

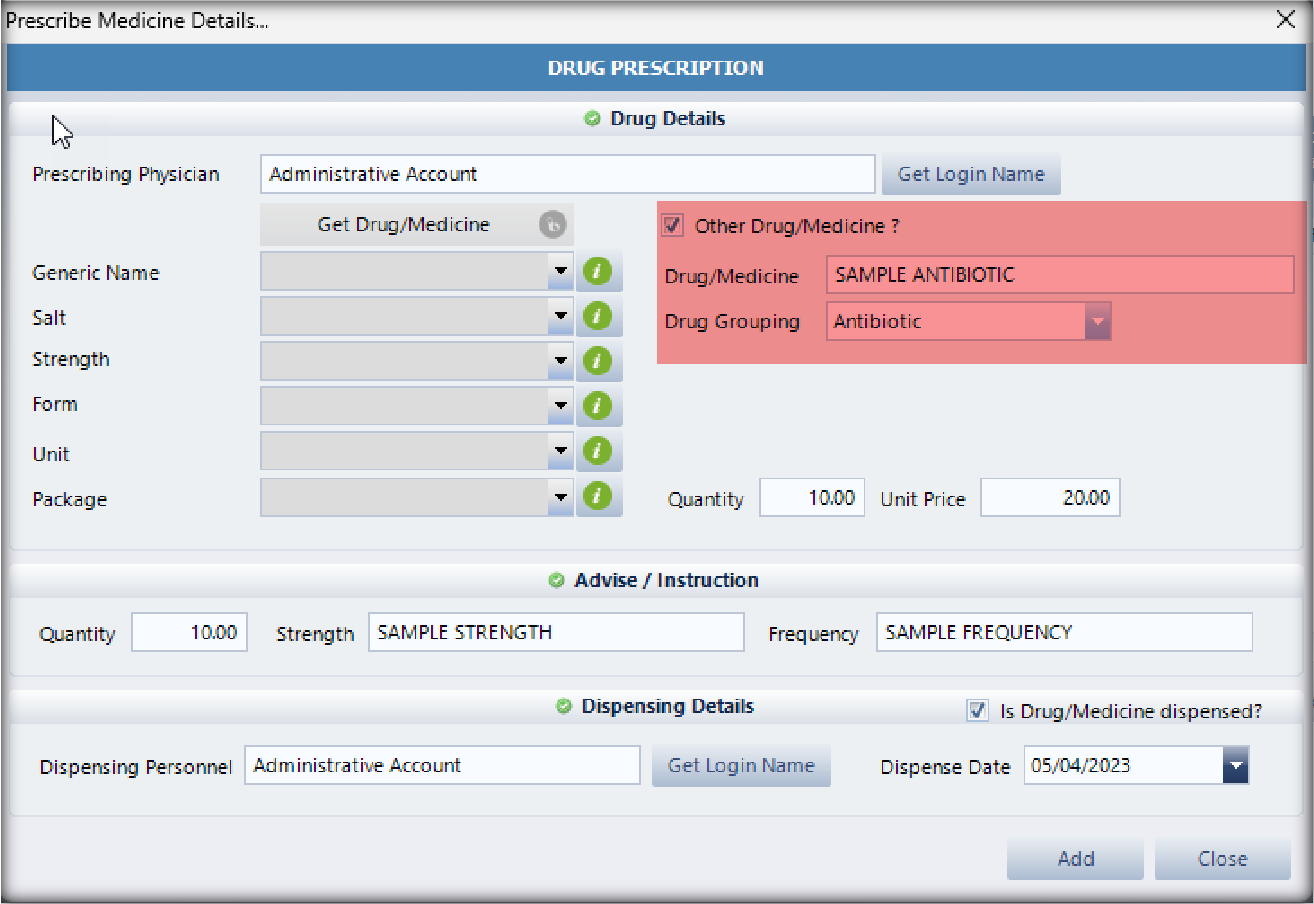

MANUALLY ADDED MEDICINE – OTHER DRUG/MEDICINE – ANTIBIOTIC
  1. Click on Other Drug/Medicine checkbox
  2. Make input on Drug/Medicine. The recommended input on this field should be same in CF4 Outside Charges Medicines
  3. Select form Drug Grouping - Antibiotic
  4. Make input on the following fields
a. Quantity
b. Unit Price
c. Quantity
d. Sample Strength
e. Sample Frequency
f. Dispensing Details (if checked)
i. Dispensing Personnel
ii. Dispense Date

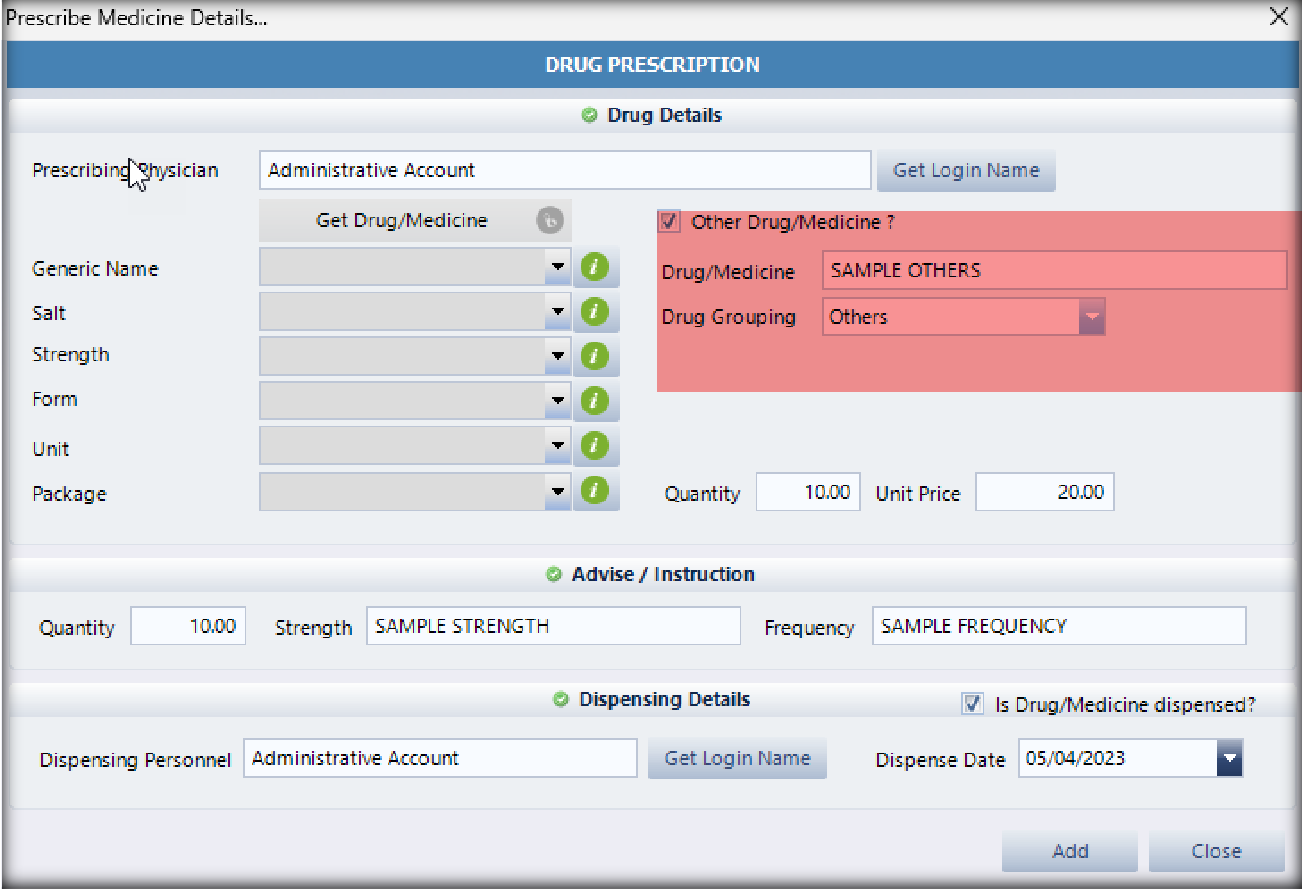

MANUALLY ADDED MEDICINE – OTHER DRUG/MEDICINE – OTHERS
  1. Click on Other Drug/Medicine checkbox
  2. Make input on Drug/Medicine. The recommended input on this field should be same in CF4 Outside Charges Medicines
  3. Select form Drug Grouping - Others
  4. Make input on the following fields
a. Quantity
b. Unit Price
c. Quantity
d. Sample Strength
e. Sample Frequency
f. Dispensing Details (if checked)
i. Dispensing Personnel
ii. Dispense Date

Laboratory/Imaging Result
The system will automatically show all the Laboratory/Imaging Template based on what you selected in Plan Management

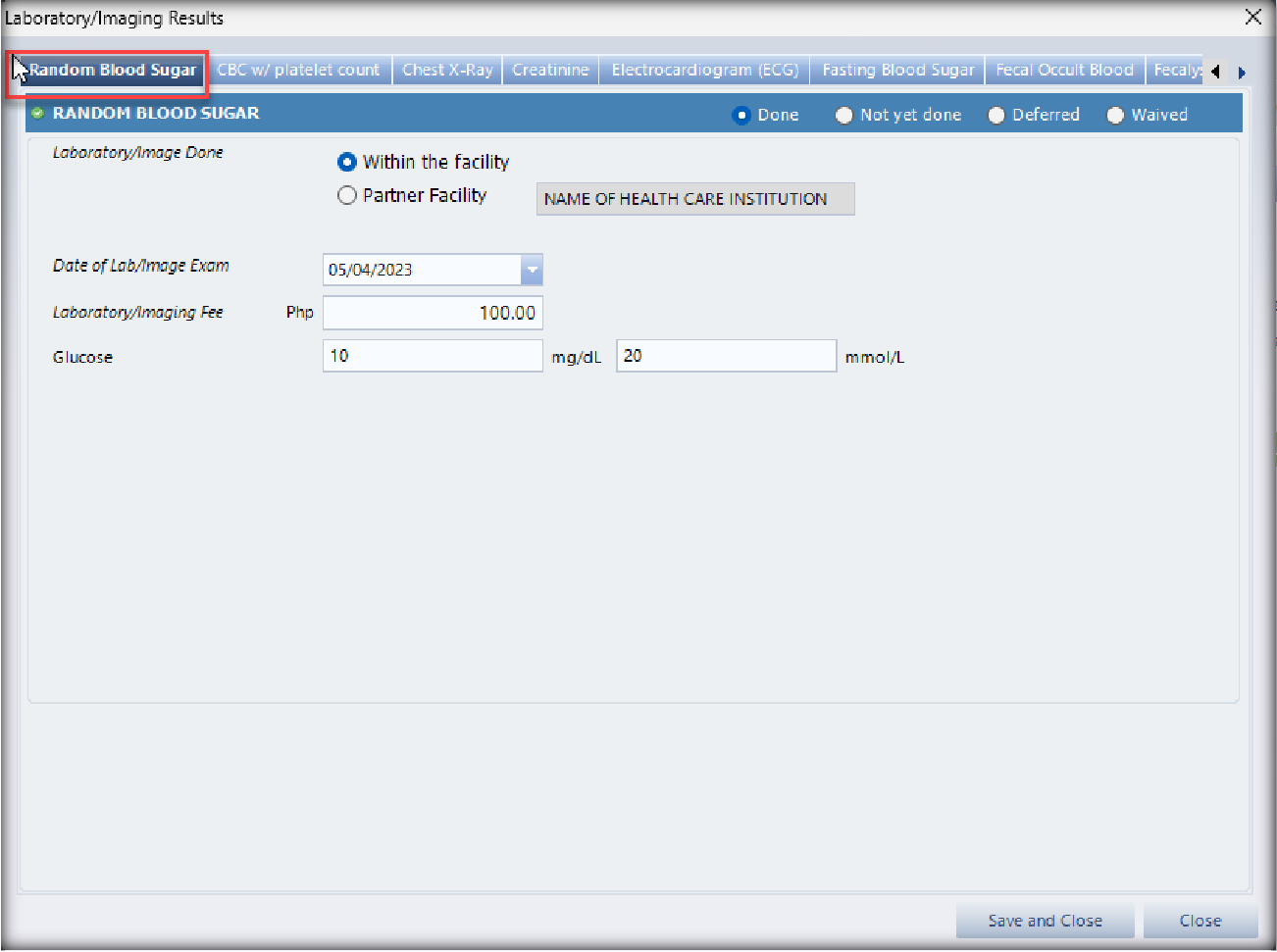

Random Blood Sugar
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

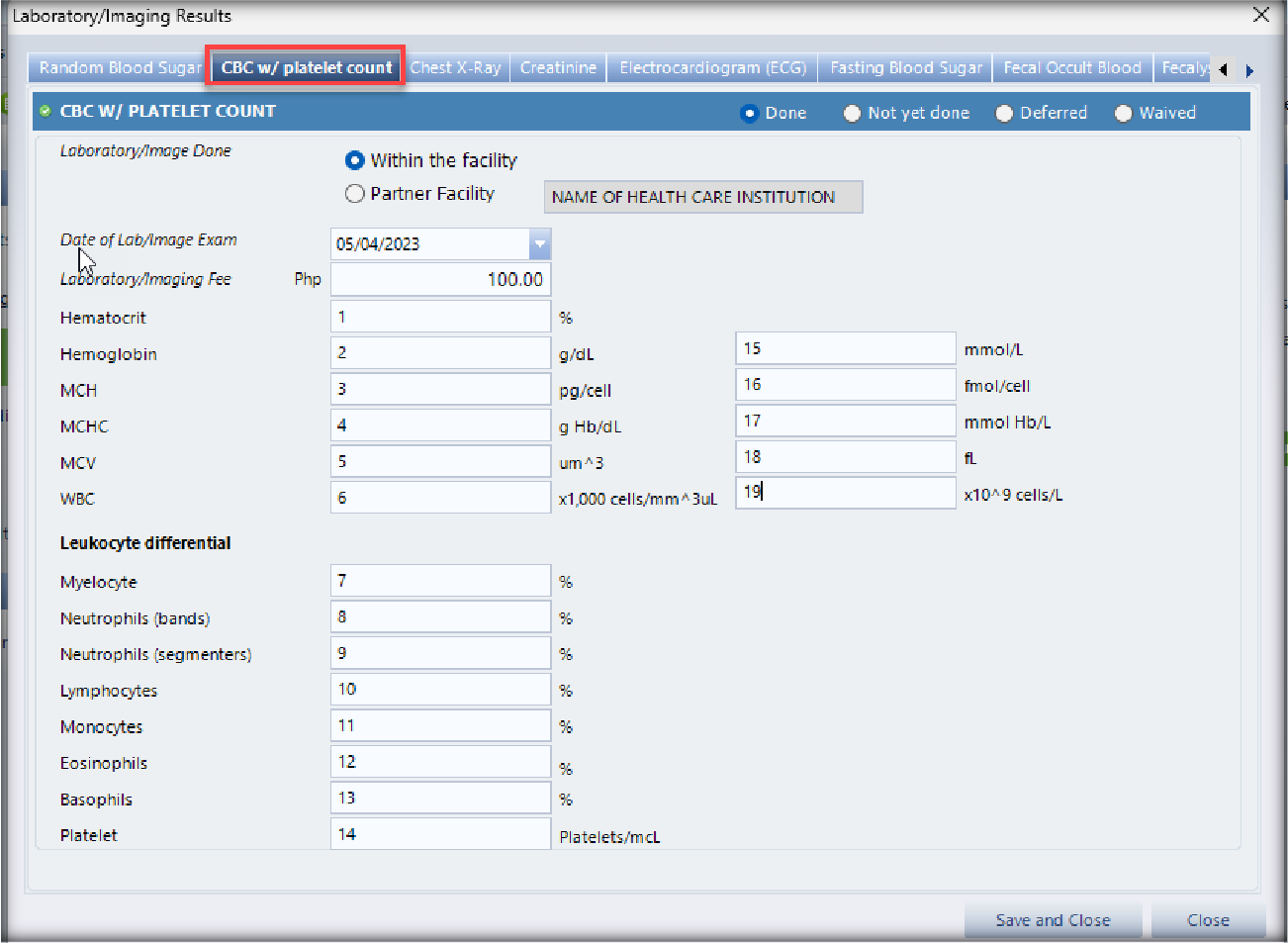

CBC WITH PLATELET COUNT
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

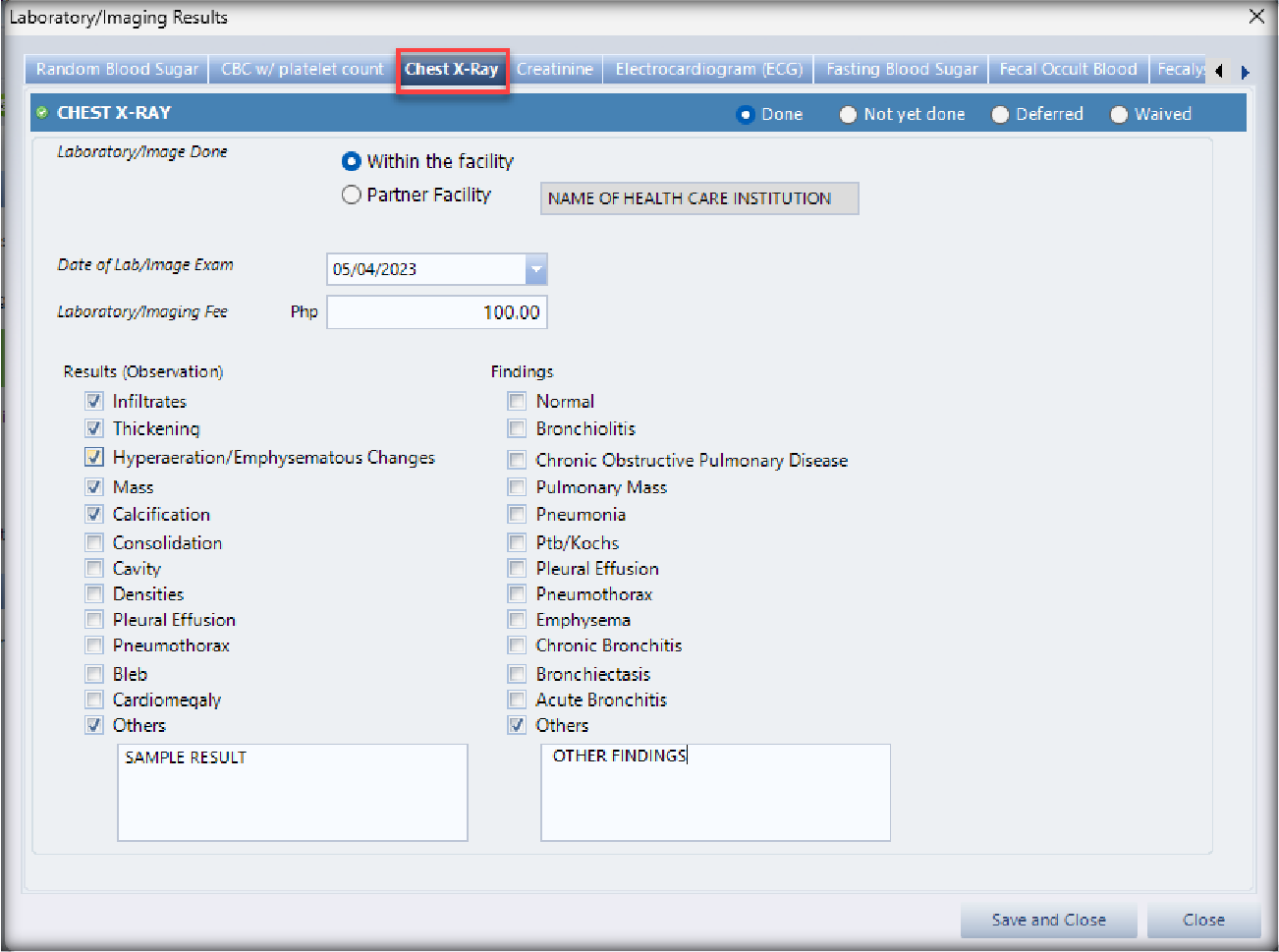

CHEST X-RAY
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

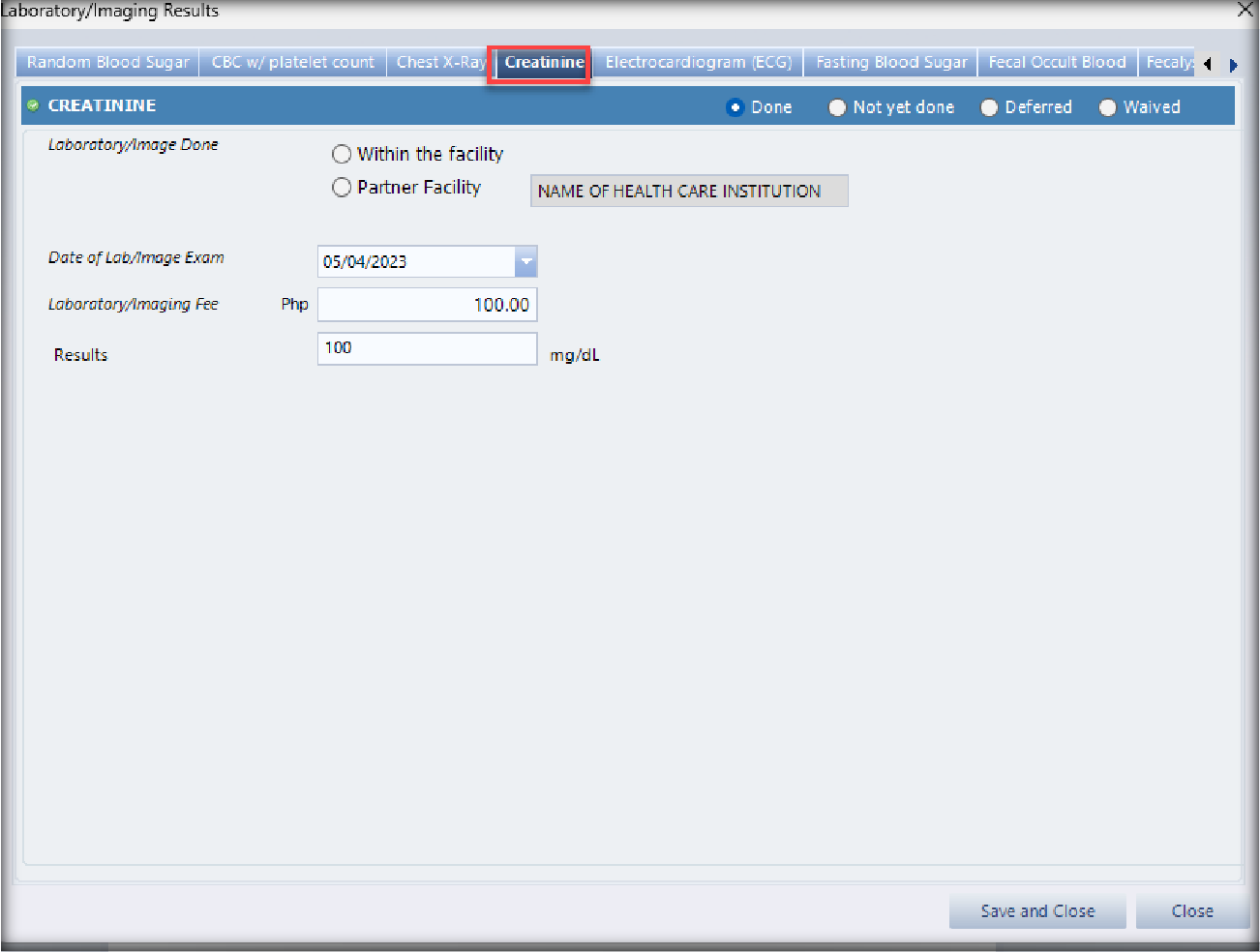

CREATININE
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

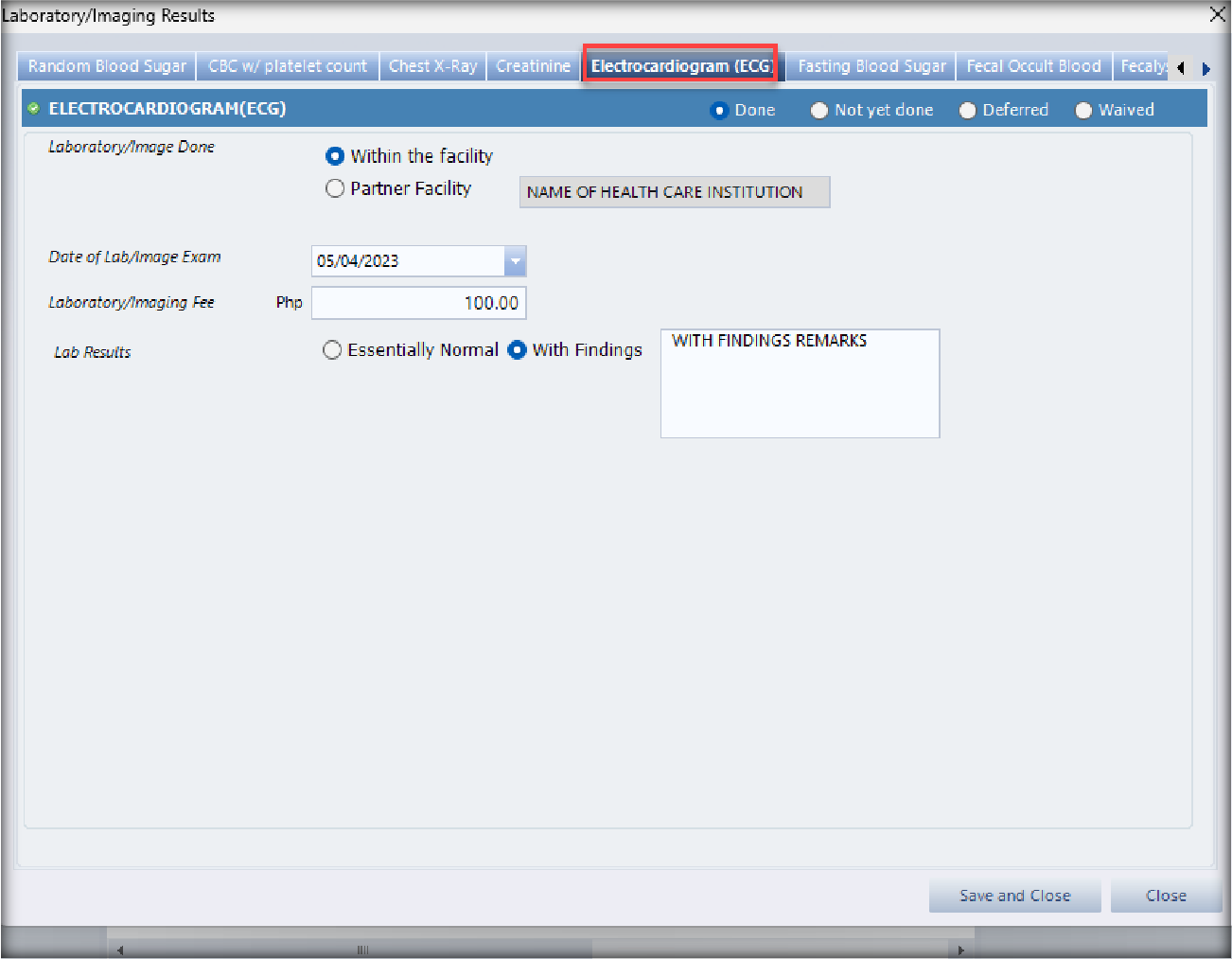

ELECTROCARDIOGRAM (ECG)
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

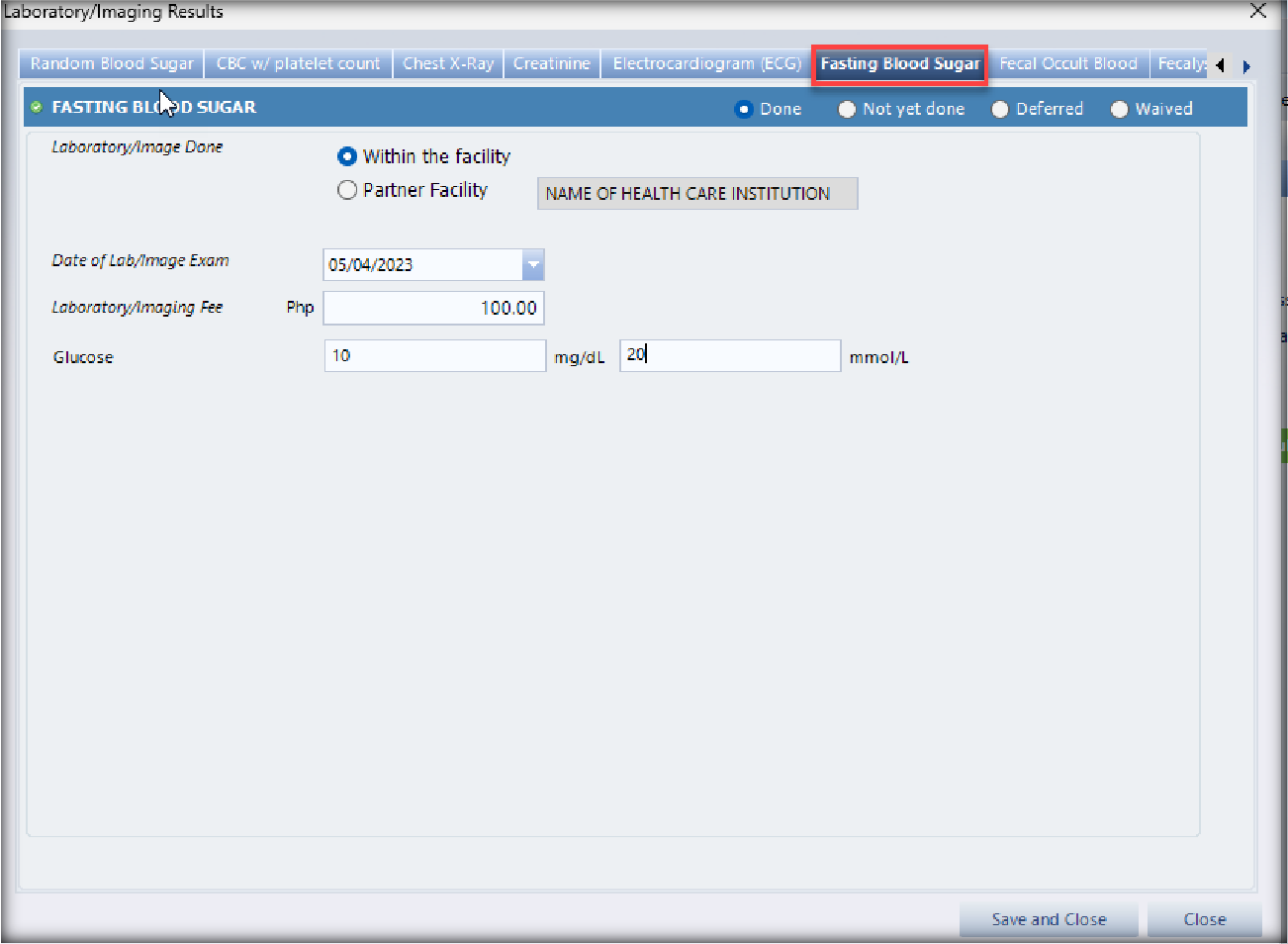

FASTING BLOOD SUGAR
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

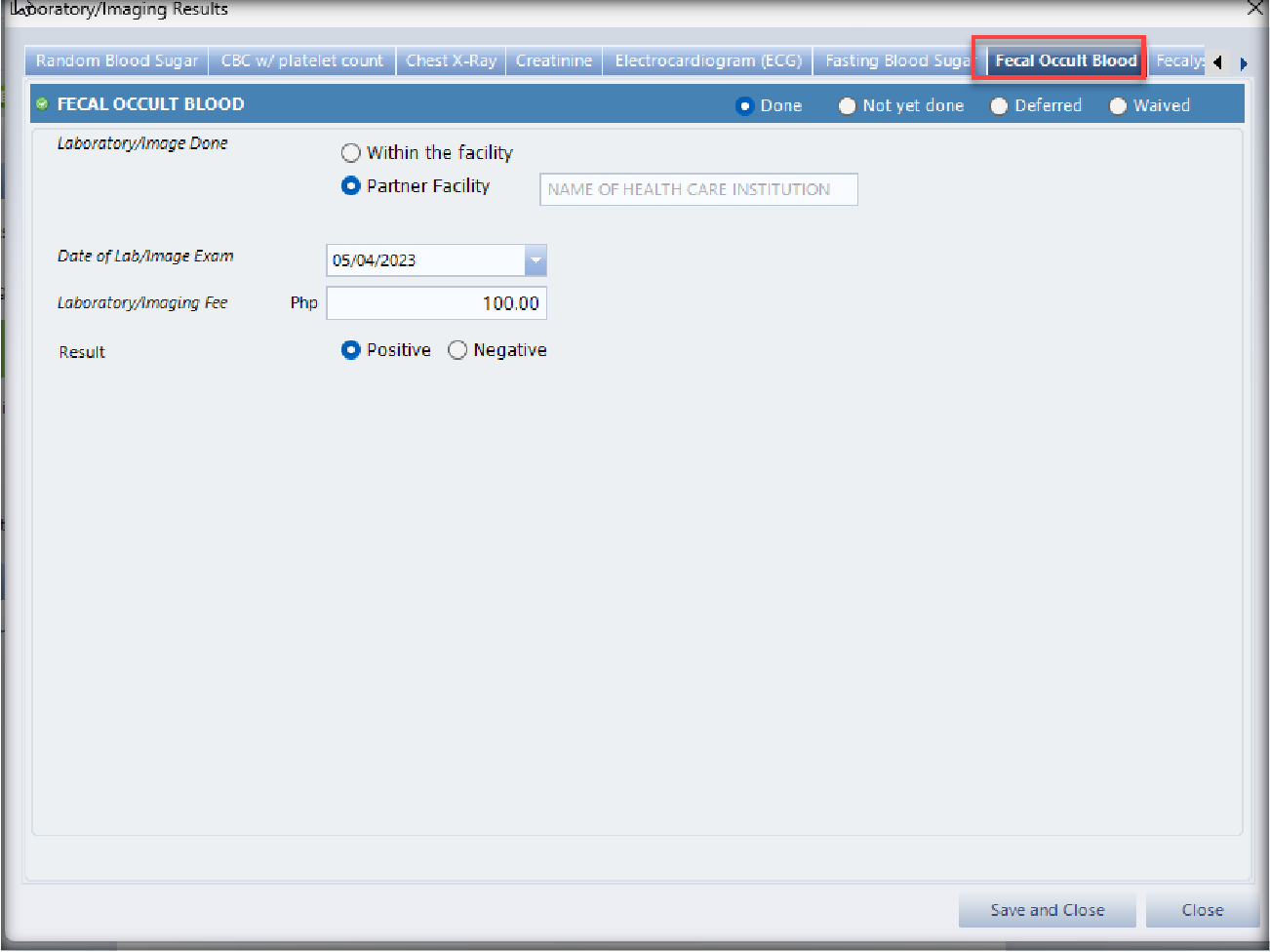

FECAL OCCULT BLOOD
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

FECALYSIS
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

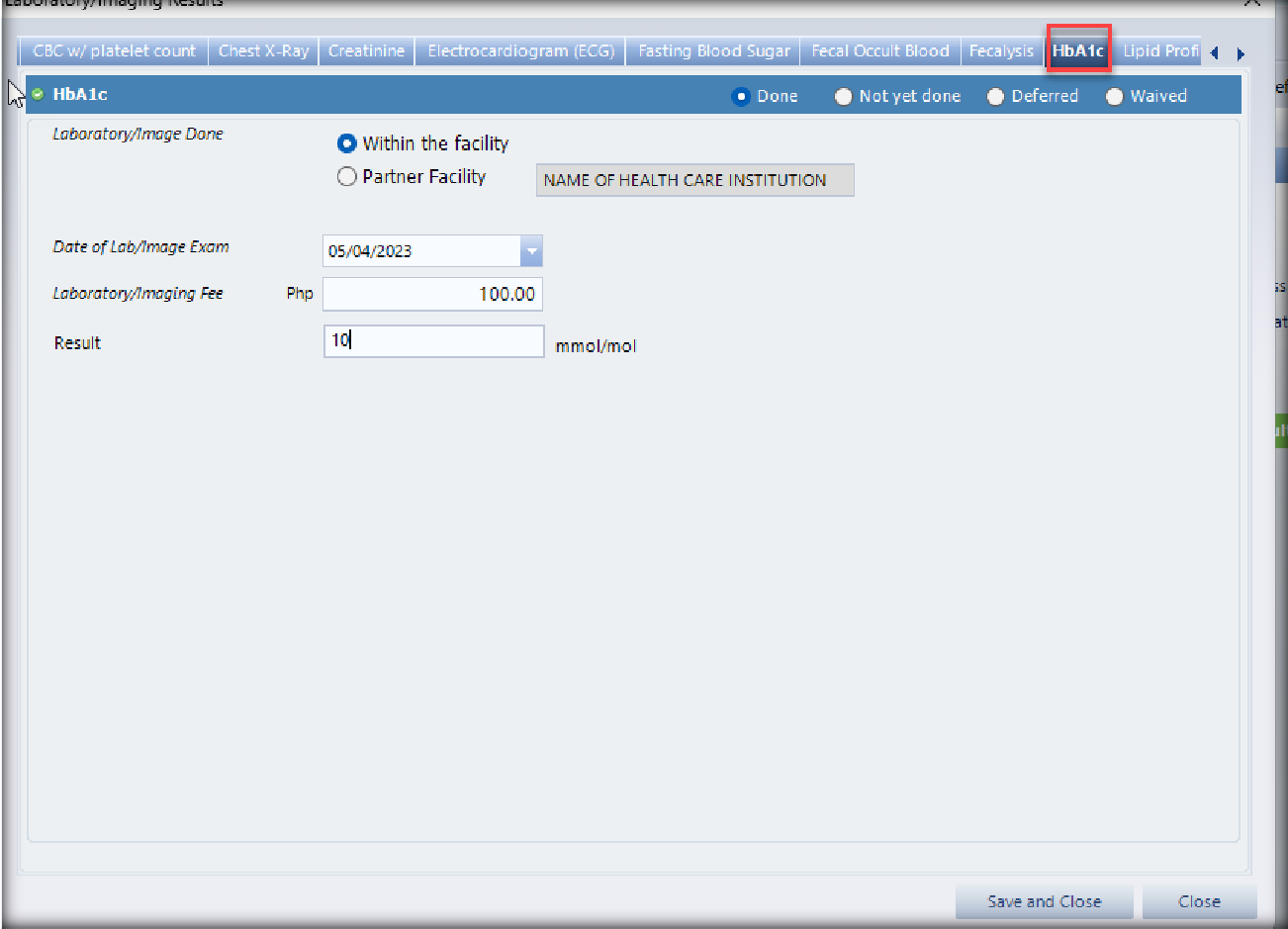

HbA1c
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

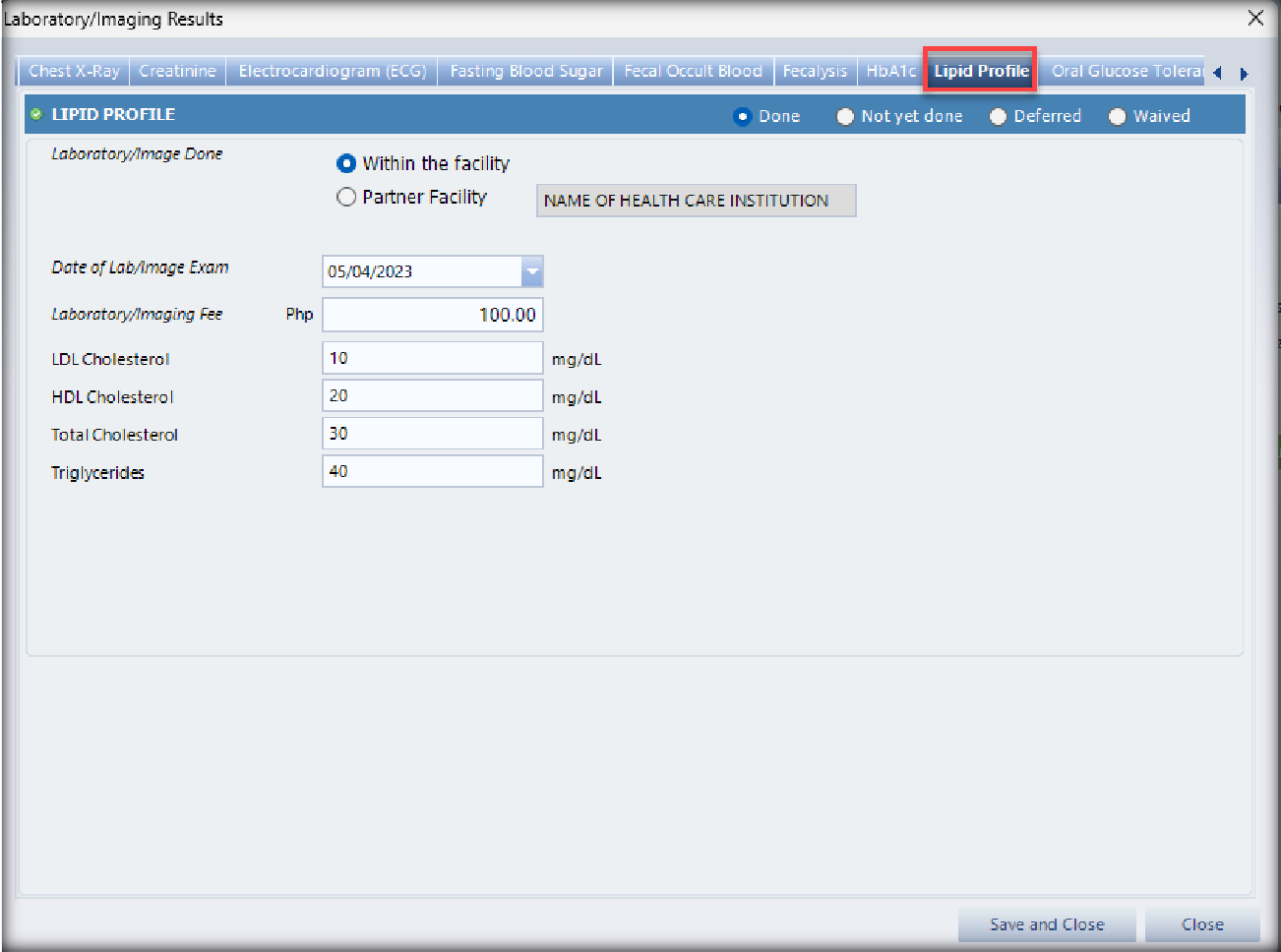

LIPID PROFILE
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

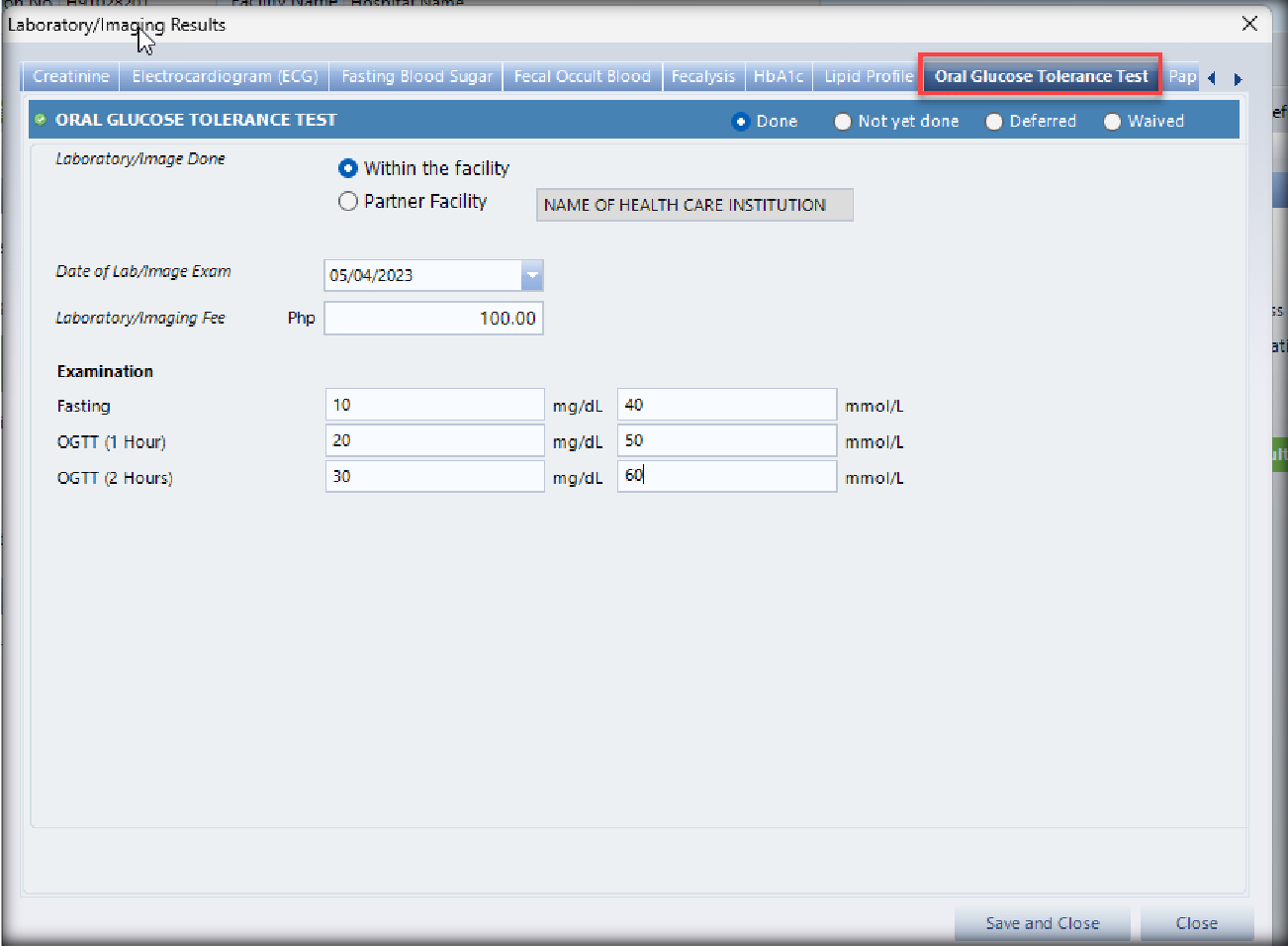

ORAL GLUCOSE TOLERANCE TEST
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

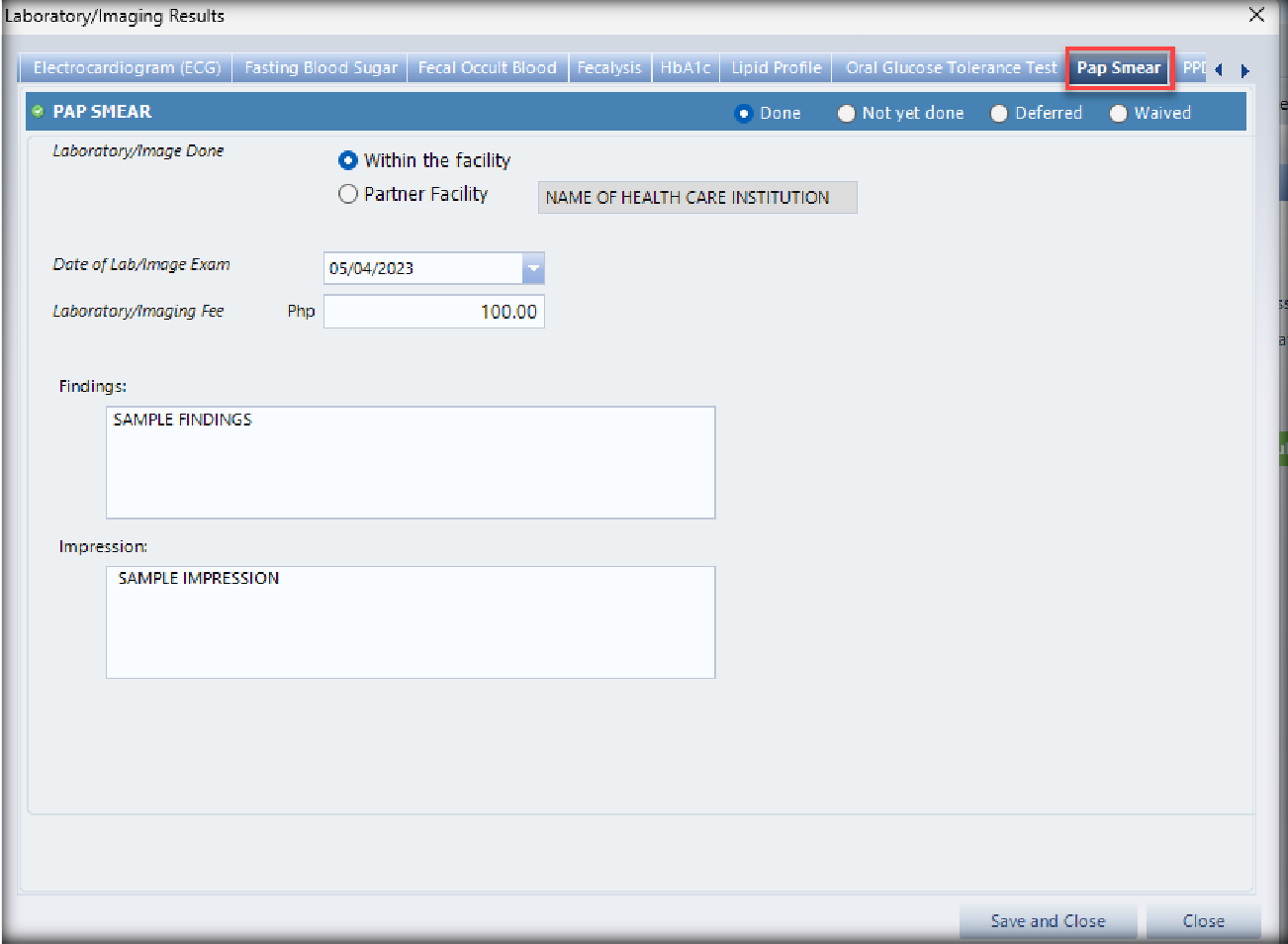

PAP SMEAR
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

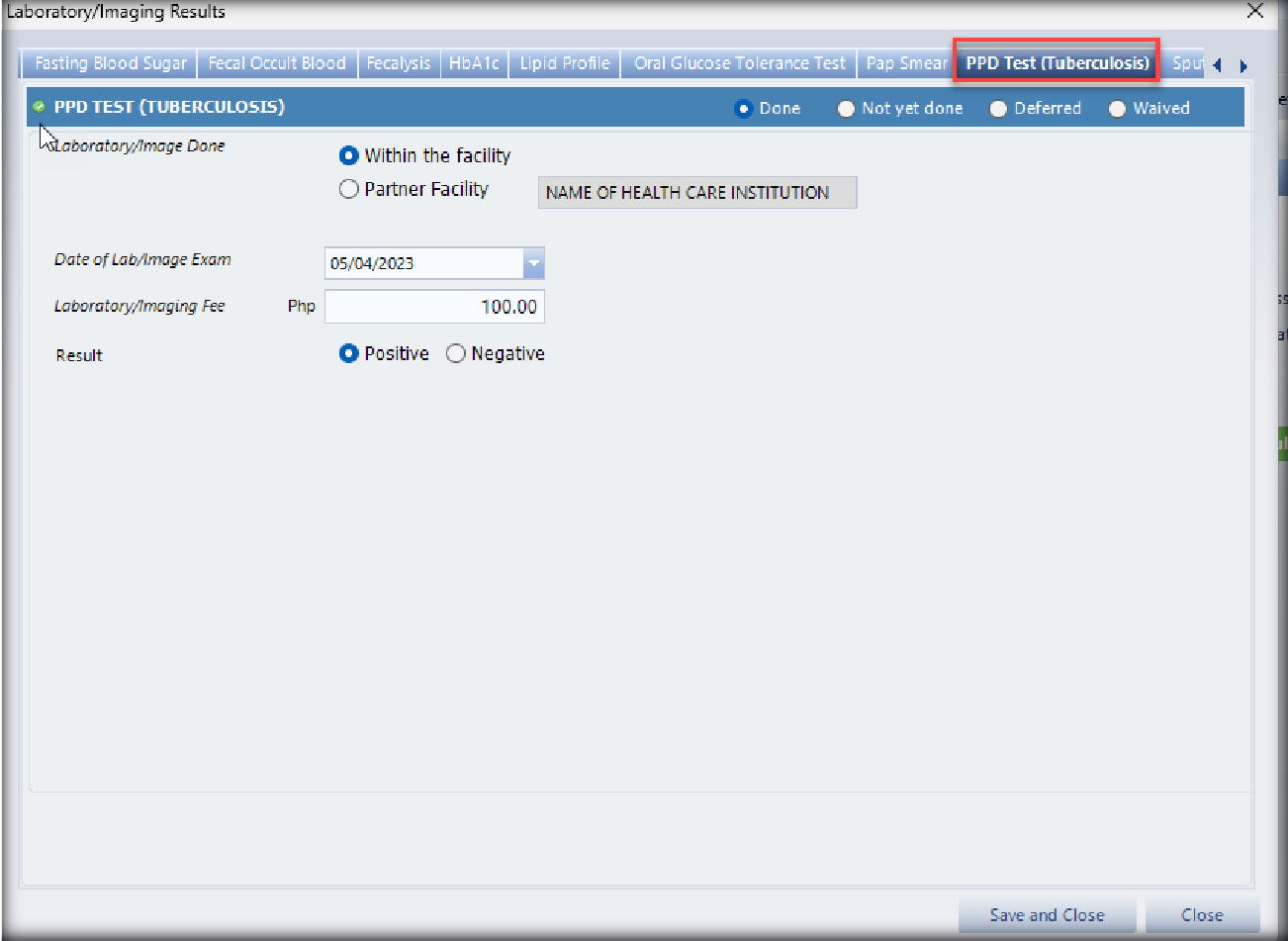

PPD TEST (TUBERCULOSIS)
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

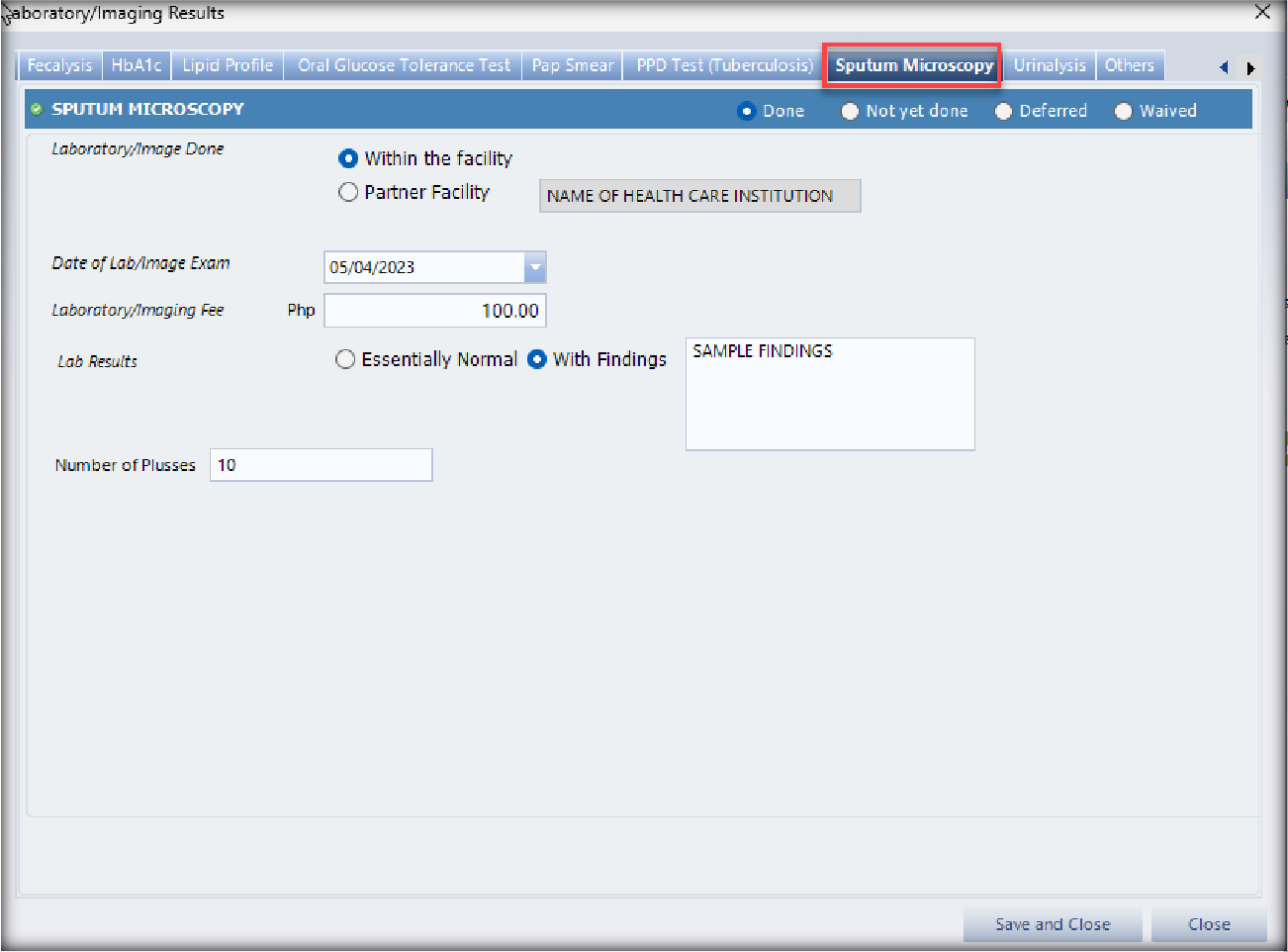

SPUTOM MICROSCOPY
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

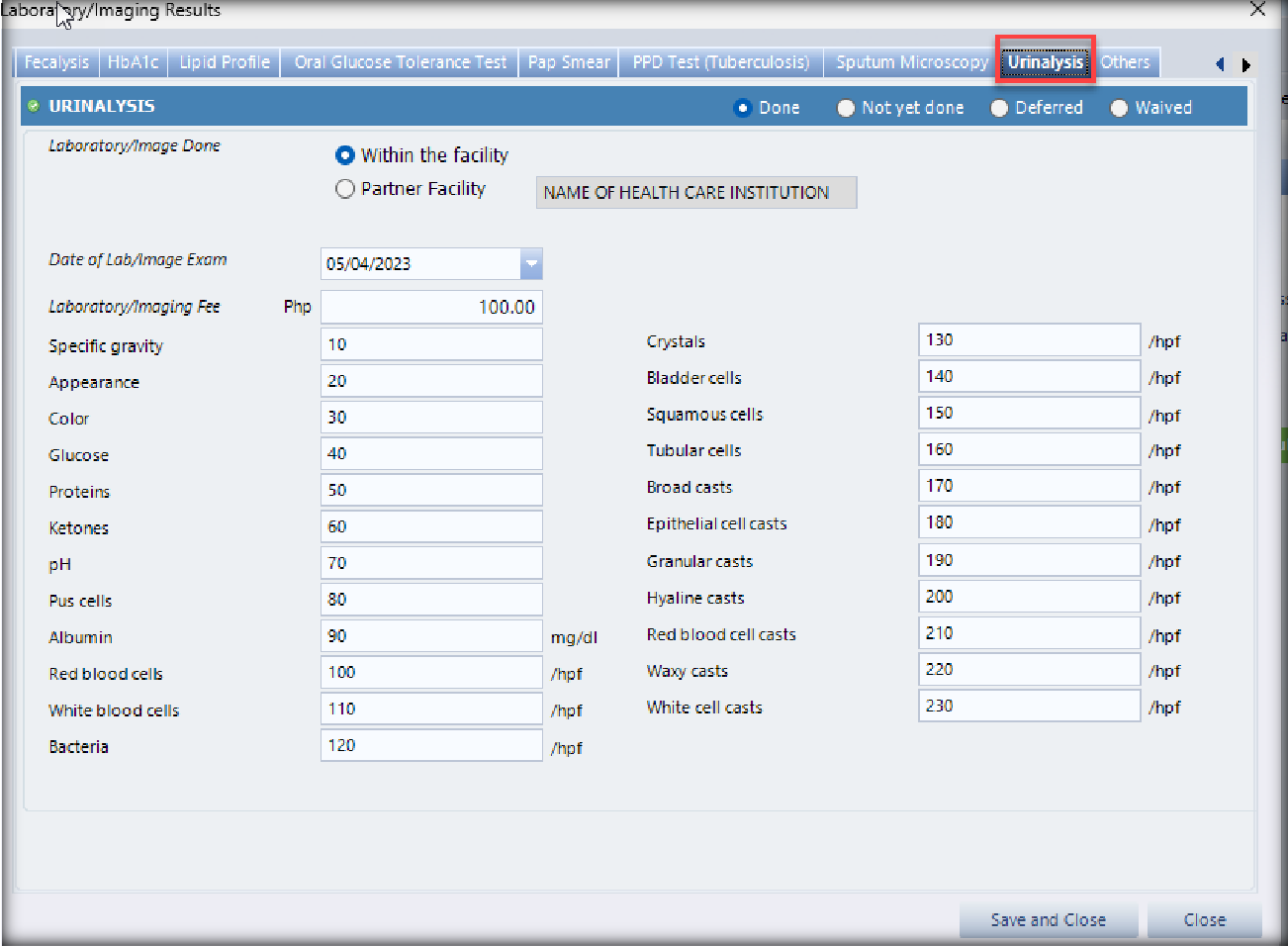

URINALYSIS
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

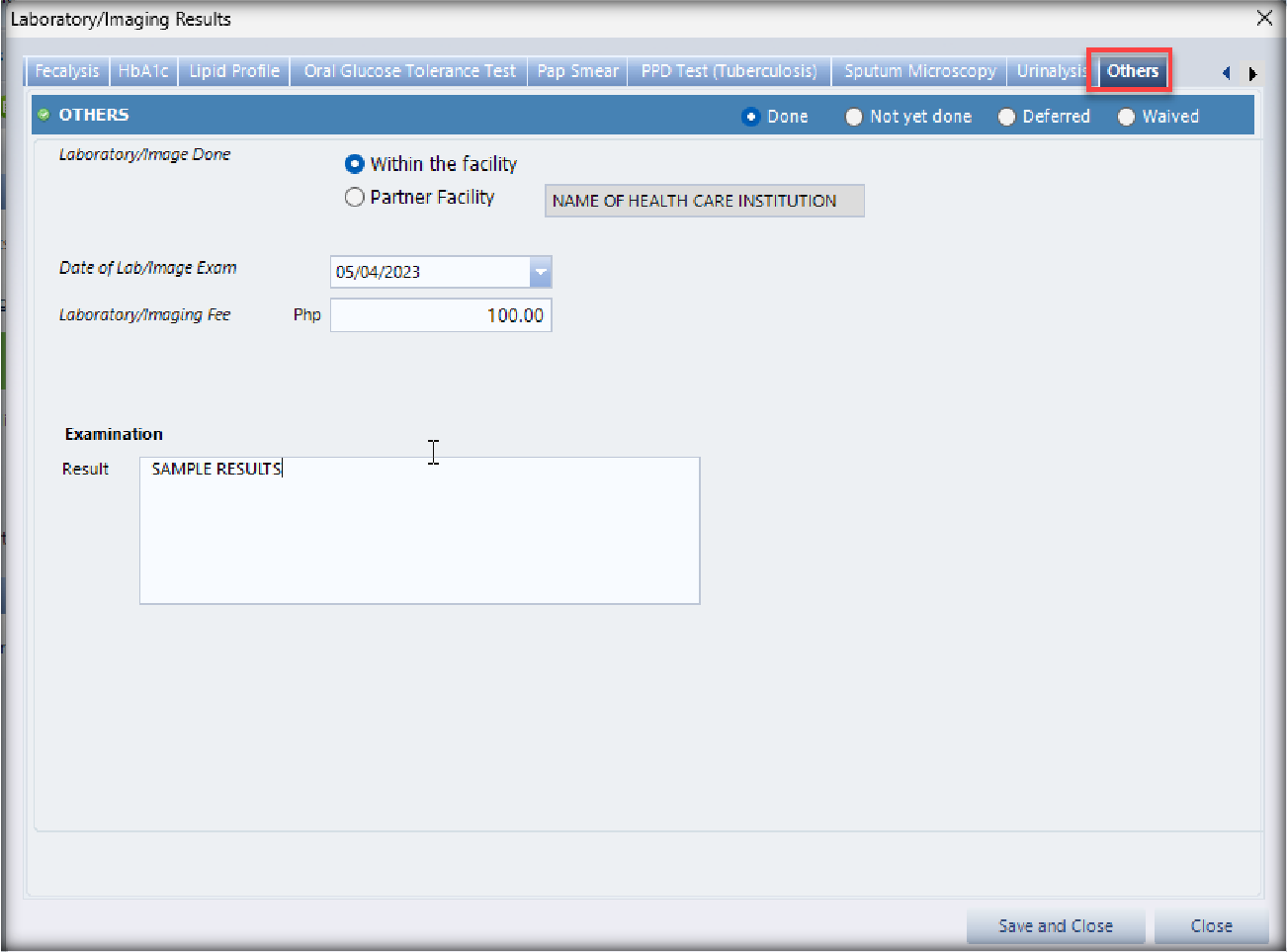

OTHERS (will only appeared when you encode Other Exam in Plan Management module)
  1. Put check or make input based on patient’s condition
  2. Identify the status of the procedure
a. Done
b. Not Yet Done
c. Deferred
d. Waived

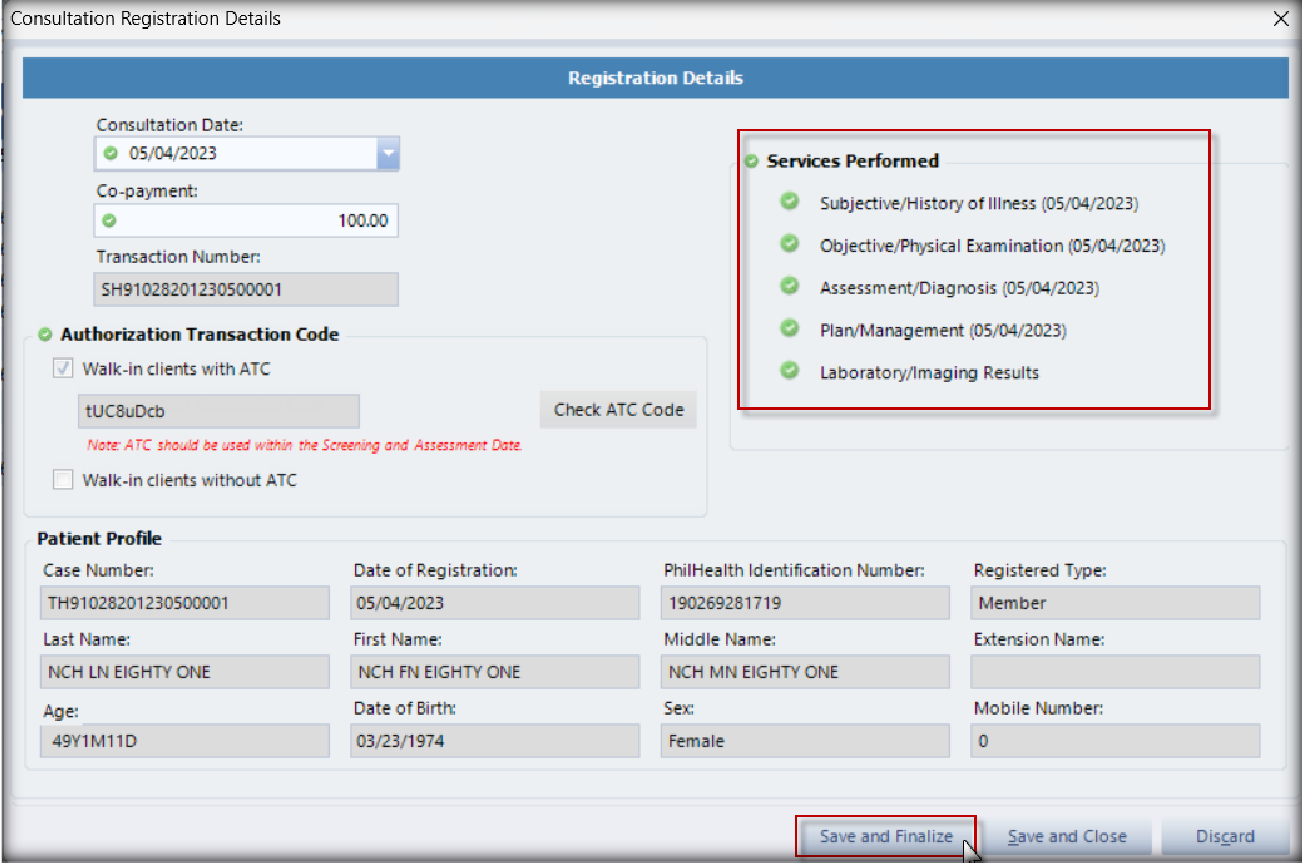

FINALIZATION OF CONSULTATION RECORD
  1. Click on the edit button to Finalize the Health Screening. Clicking Finalize will serve as an indicator that the record can be forwarded to Consultation Module.
  2. The system also has a checklist of the Health Screening Module to serve as a guide for our user during the finalization.

FOLLOW UP MEDICINE
  1. In Homepage, click on Health Screening

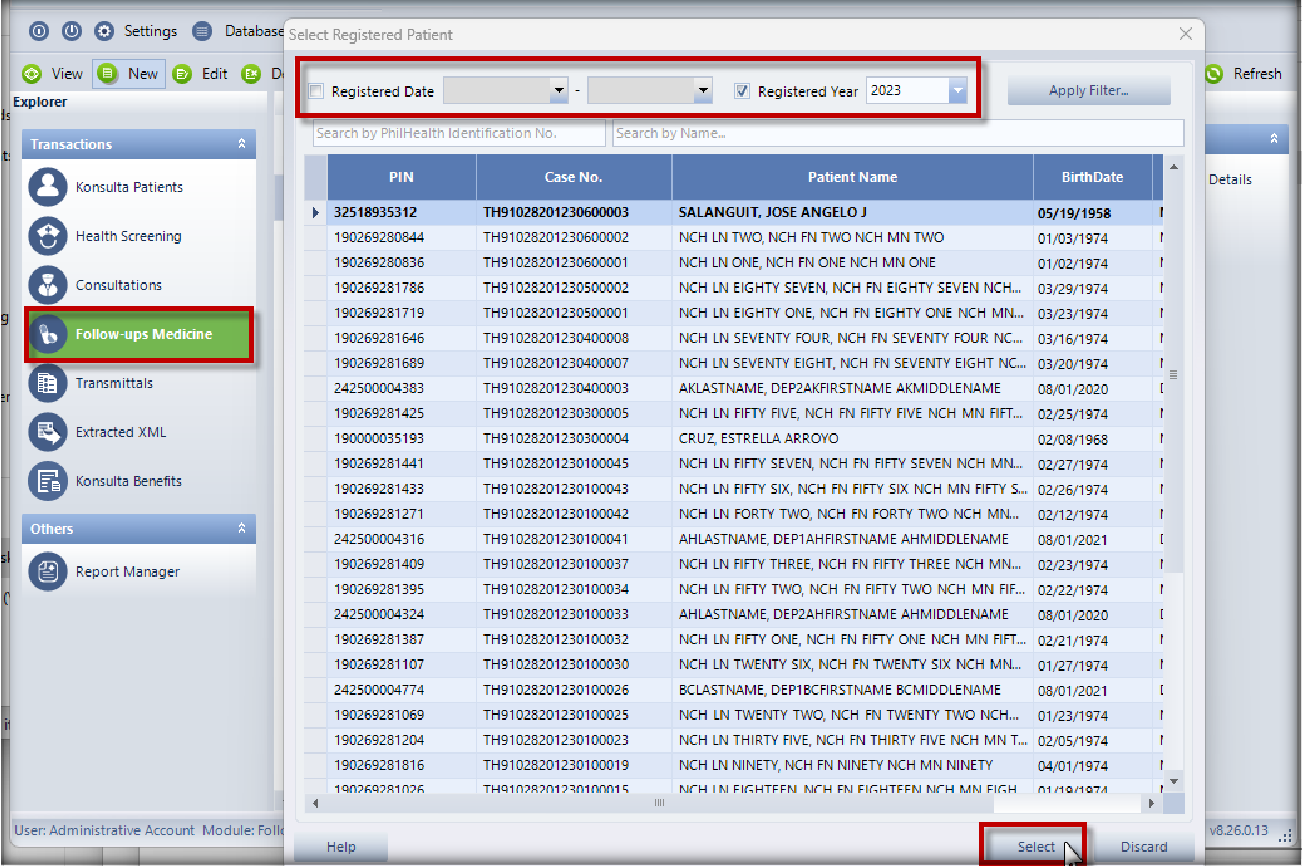

  2. Click on Create New. The system will load the patients from Konsulta Patients with no Health Screening Record yet.
  3. Highlight a patient and click on Select button
4. Upon select, the Follow -ups Registration Details will load.
5. Input the Follow-ups Date
6. In Authorization Transaction Code (ATC) encode the Walk-in clients with ATC if the patient is with ATC from Philhealth. Otherwise check on Walk-in clients without ATC.
7. Click on Check ATC to Validate if the code is correct.
8. Message response will appear
  1. ATC Code is VALID
  2. ATC Code is INVALID


9. Click on Save and Close to exit the form
10. Make input on user password validation to proceed.

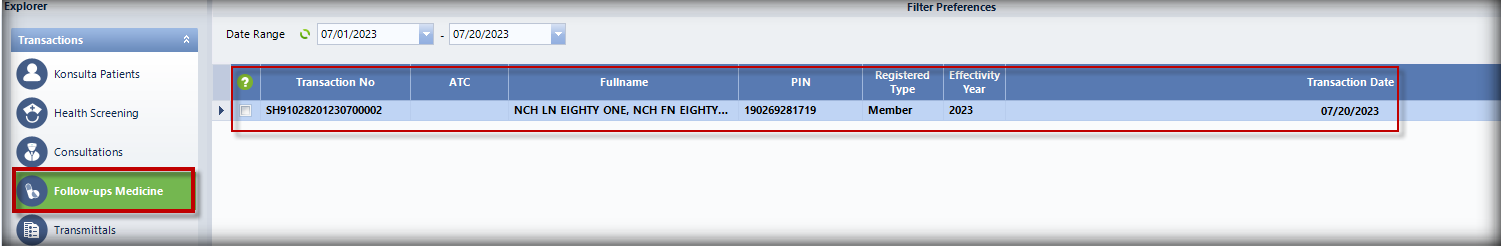

11. The patient will now display in Health Screening main grid

12. The Follow Up Medicine record will automatically create a new registration in OPD.
Here are the following process needed for OPD registration from eKonsulta
  1. Edit the registration to assign Doctor
  2. Charge medicine/procedure to the record of patient
  3. Process payment if there’s any excess
  4. Process Konsulta Benefits
13. Click on Dispensing Medicine in Subcomponents and check the extracted charged medicine form HIS


14. Edit the record of medicine item to input the following:
  1. Strength
  2. Frequency
  3. Dispensing Details
i. Dispensing Personnel
ii. Dispense Date


15. If in case the user would like to add Outside Charges, you may proceed to Other Charges and add medicine charges. Please follow the discussion in Consultation – Plan/Management – Dispensing Medicine.


REPORT MANAGER
Consist of the following
  1. eKonsulta Availment Slip (eKAS)
  2. ePrescripton Slip (ePreS)

eKonsulta Availment Slip (eKAS)
  1. In homepage, click on Report Manager.
  2. Click on eKonsulta Availment Slip (eKAS

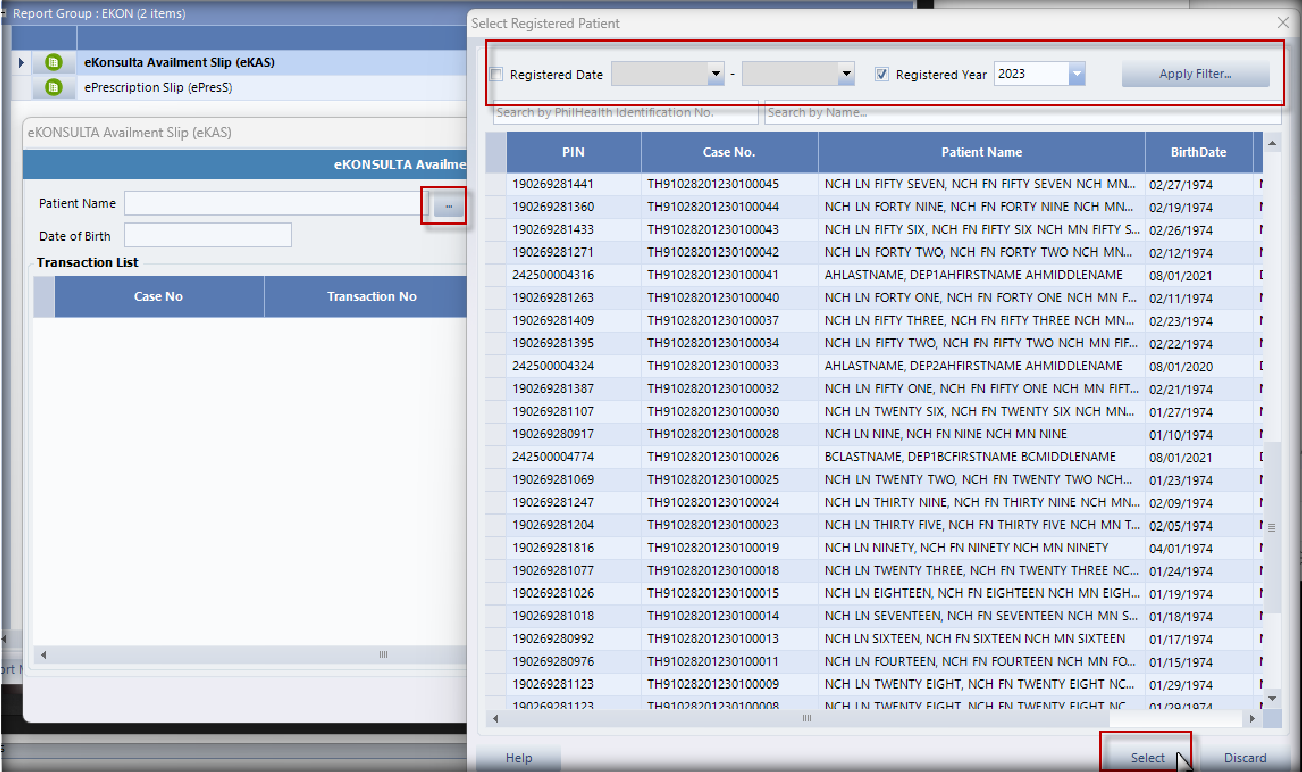

  3. In Patient Name field, click the button to load the list of patients.
  4. Highlight a patient and click on Select button

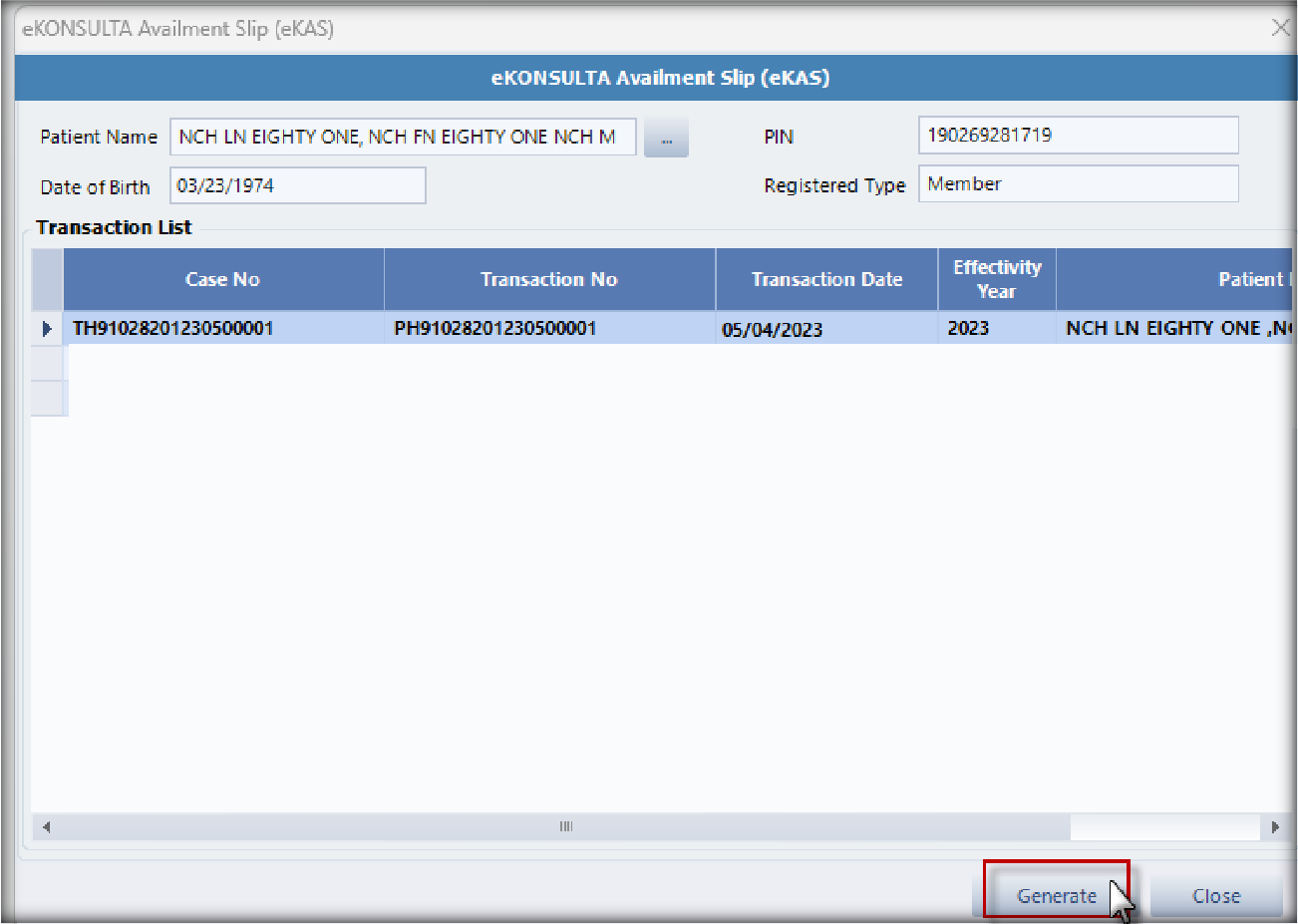

  1. 5. After selecting patient, the system will load the Health Screening and Consultation list of patient. Click on generate to load the details of the selected transactions.

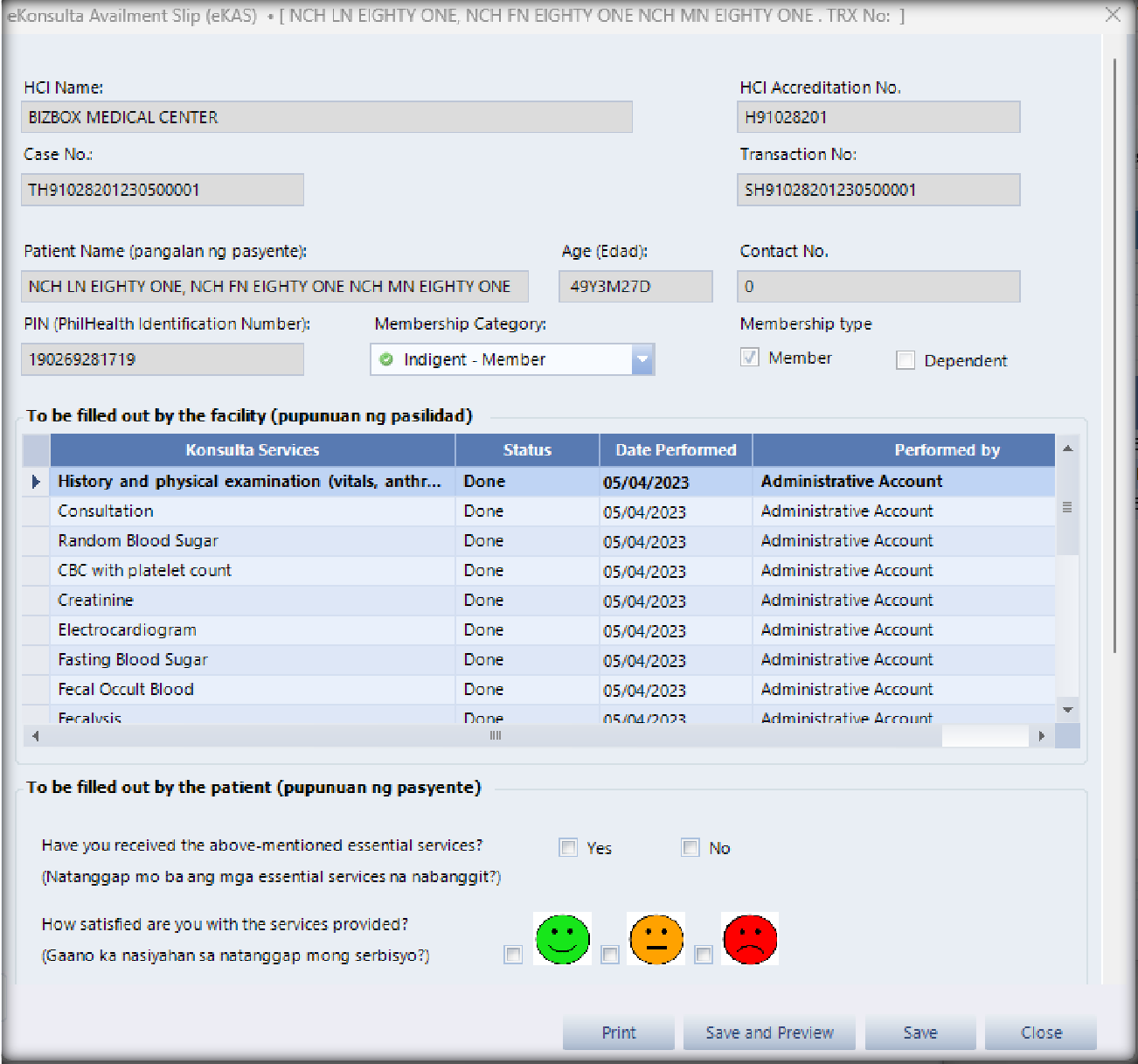

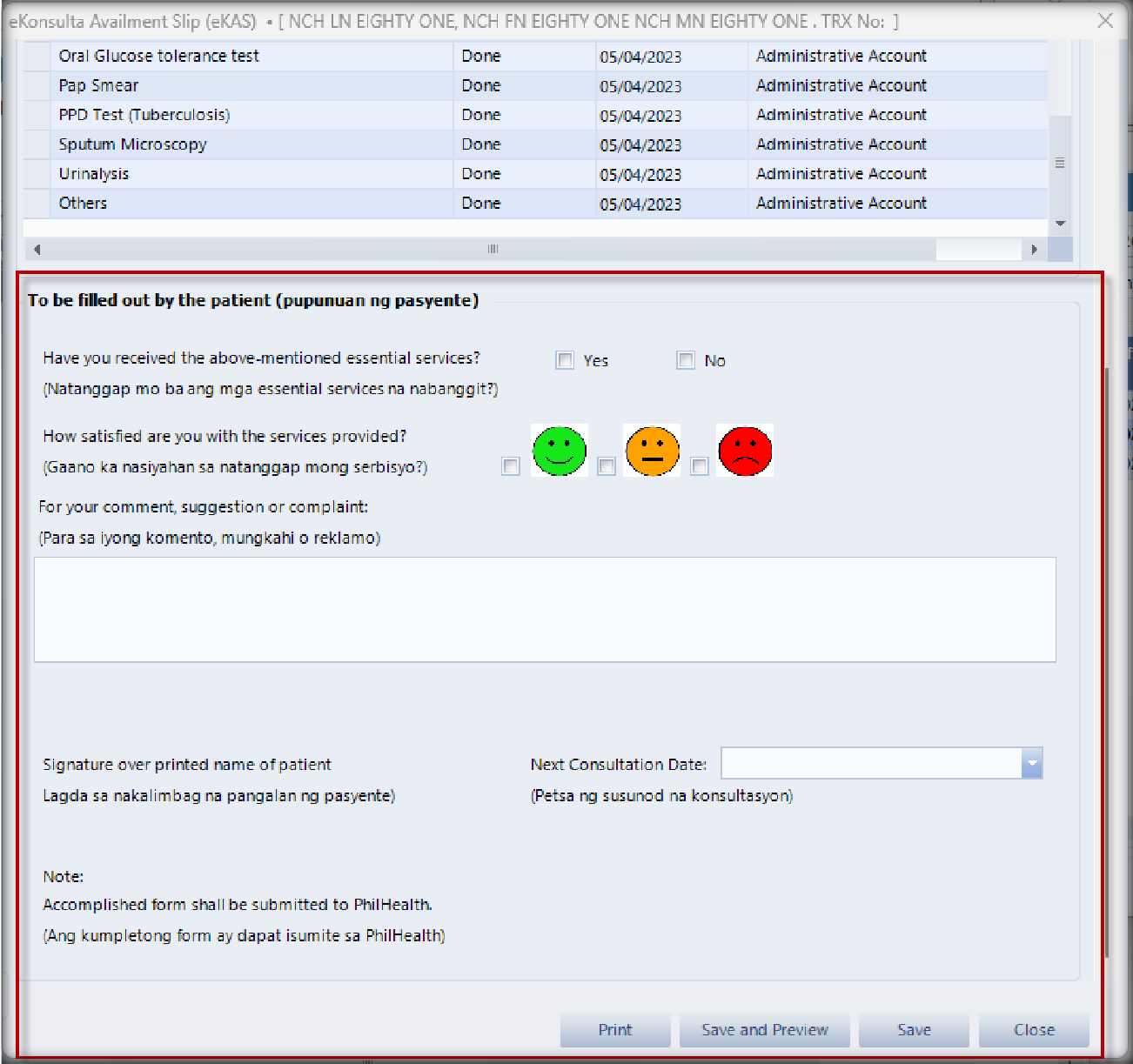

6. After clicking the Generate button, the system will load the details of eKas. The user
may input on the “To be filled out by the patient (pupunan ng pasyente).
7. Save the encoded values before printing

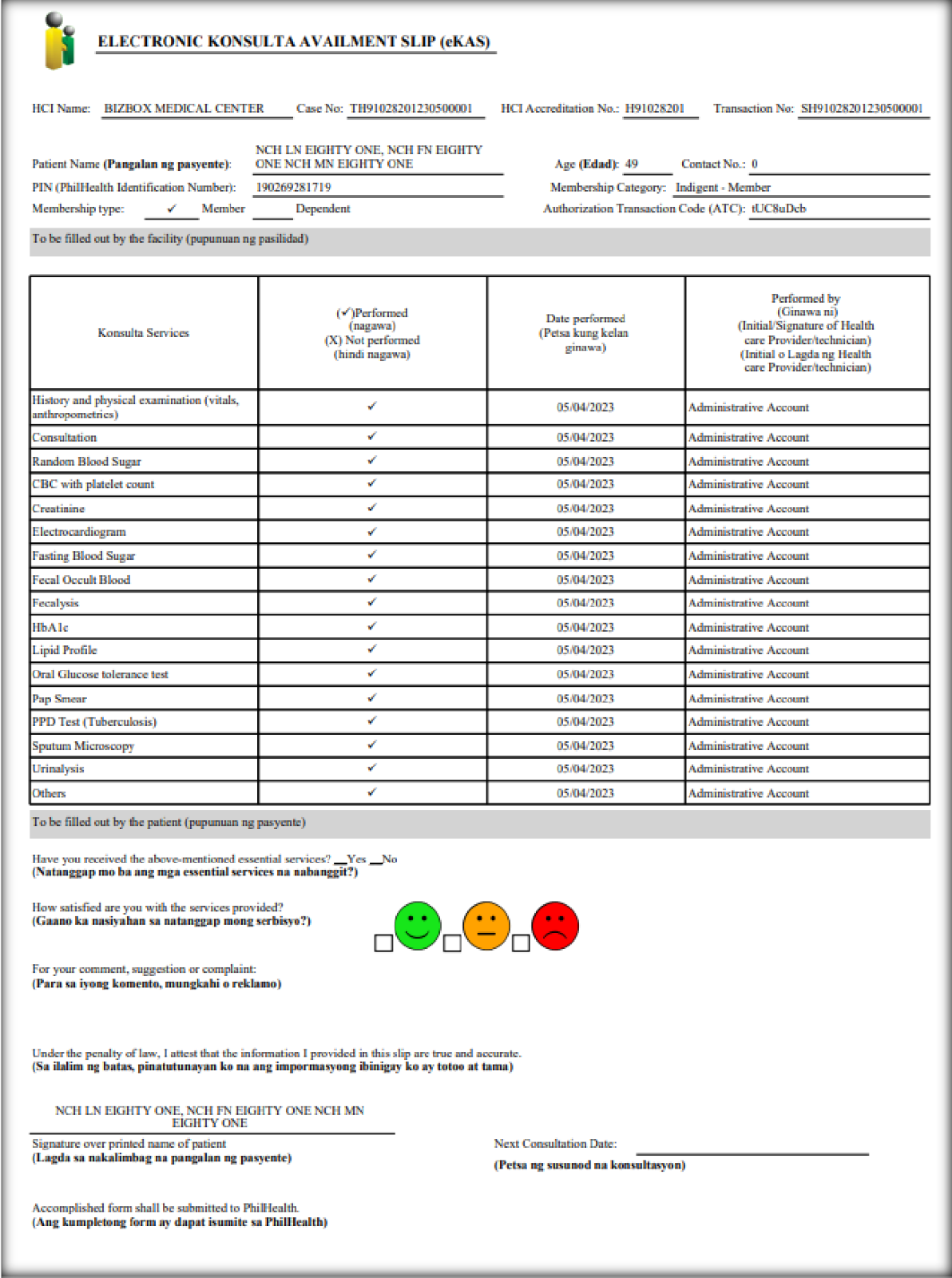

EXPECTED PRINTOUT


ePrescripton Slip (ePreS)
  1. In homepage, click on Report Manager.
  2. Click on ePresciption Slip (ePreS)

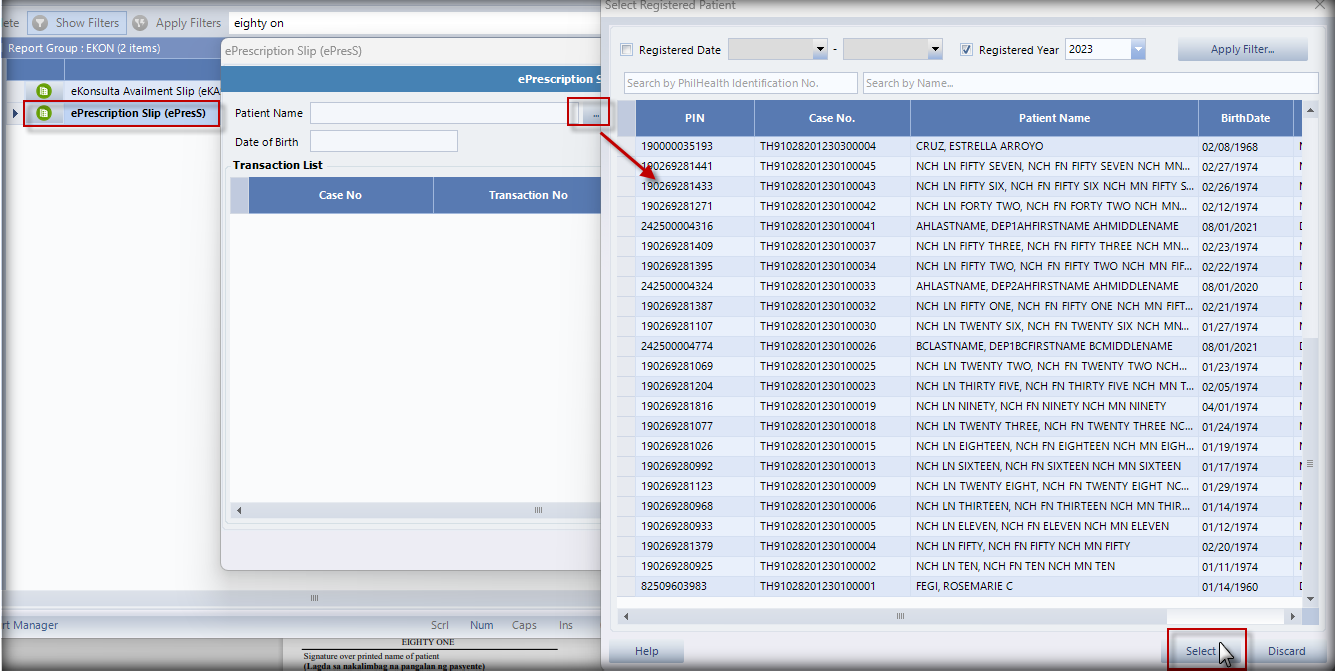

  3. In Patient Name field, click the button to load the list of patients.
  4. Highlight a patient and click on Select button

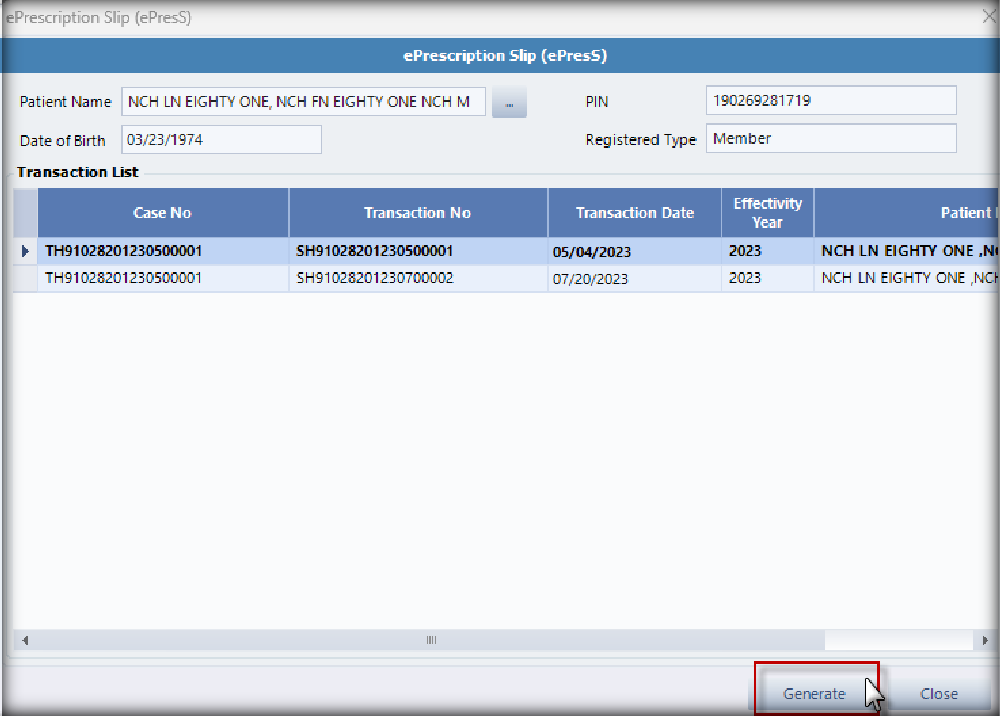

  1. 5. After selecting patient, the system will load the Plan/Management – Dispensing Medicines and Follow up Medicine list of patient. Click on generate to load the details of the selected transactions.


6. After clicking the Generate button, the system will load the details of ePrescription Slip. The user may input on the “To be filled out by the patient (pupunan ng pasyente).
7. Save the encoded values before printing

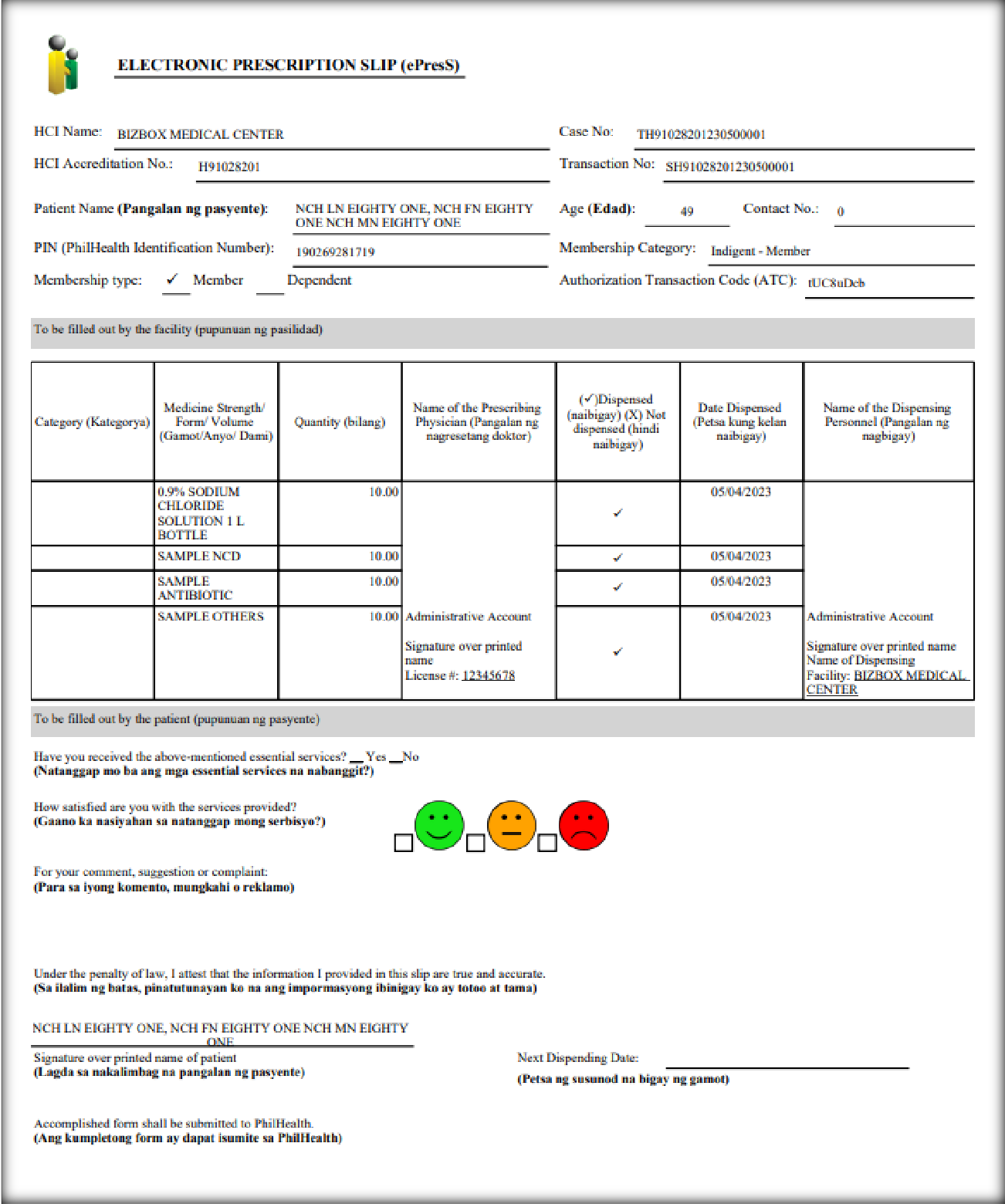

EXPECTED PRINTOUT OUTPUT


TRANSMITTALS

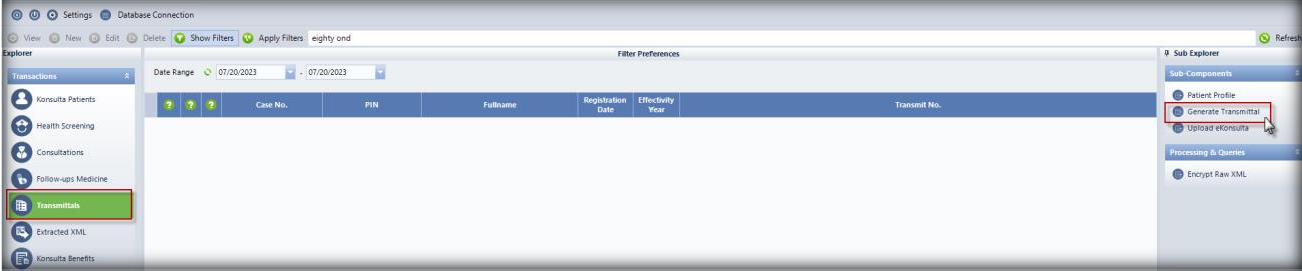

  1. In Homepage, click on Transmittals module
  2. Click on Subcomponents – Generate Transmittals

3. In Generate Transmittals, there are two tranches.
  1. First Tranche – intended for Health Screening transactions
  2. Second Tranche – intended for Consultations or Follow ups

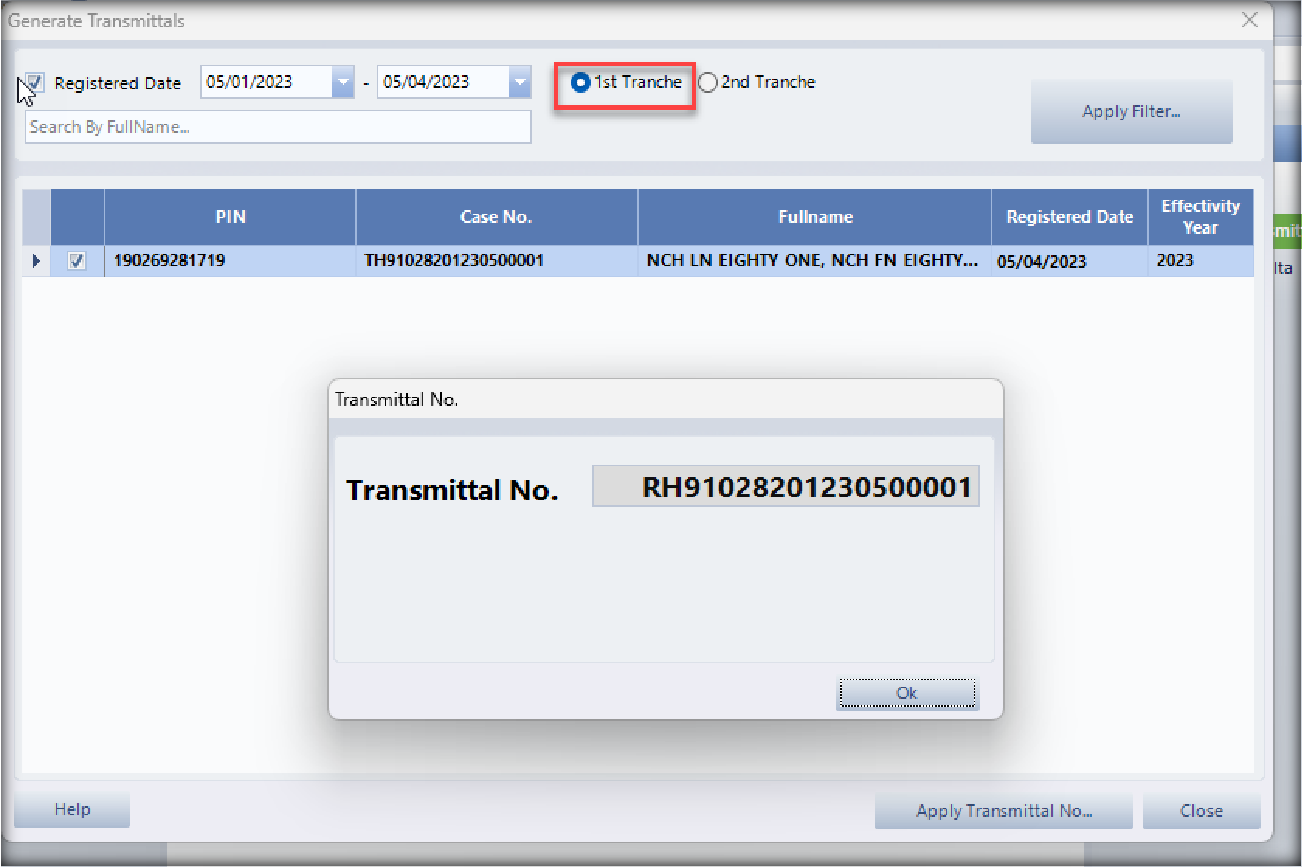

GENERATE TRANSMITTAL FOR FIRST TRANCHE
  1. Put date range on Registered Date
  2. Click on 1st Tranche to filter the transactions
  3. Highlight a patient and click on Apply Transmittal No.

GENERATE TRANSMITTAL FOR SECOND TRANCHE

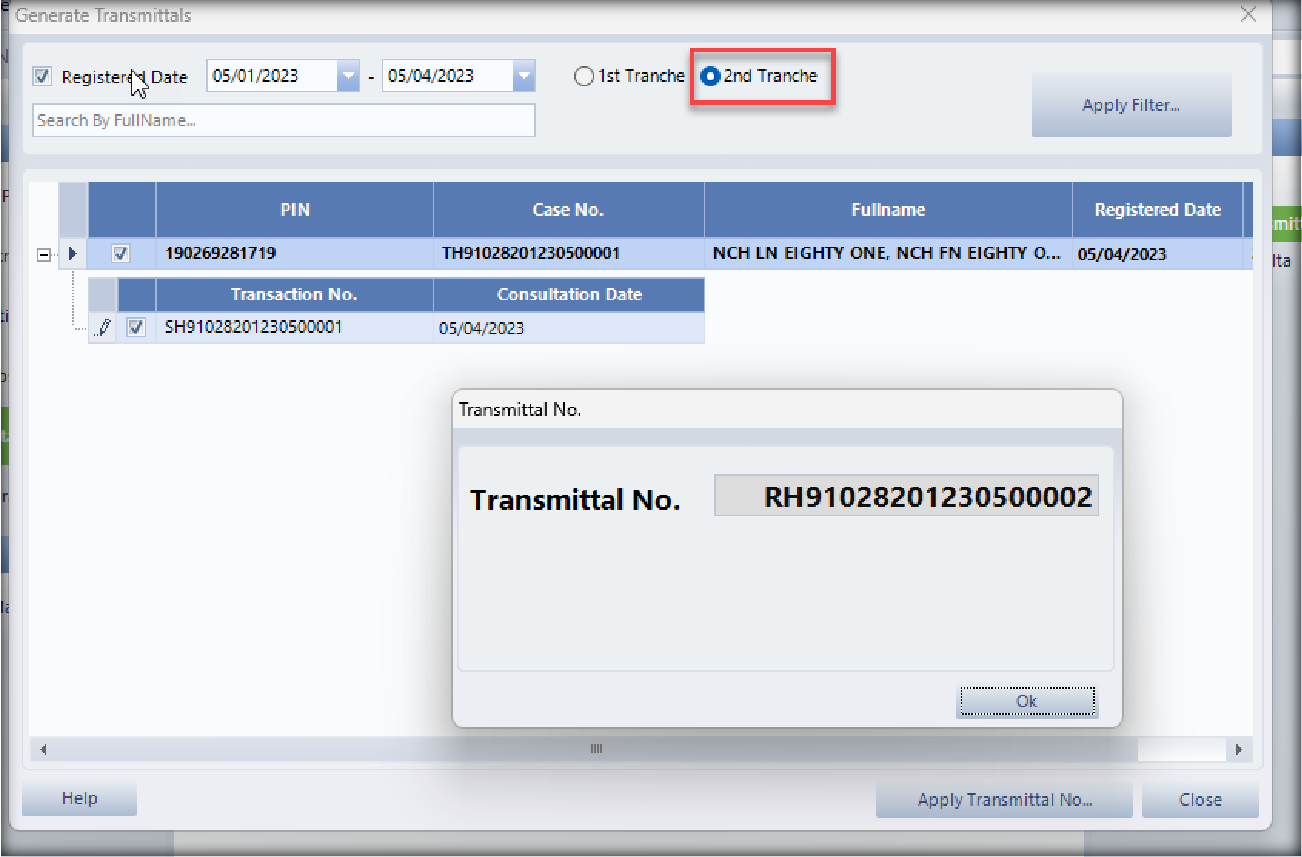

  1. Put date range on Registered Date
  2. Click on 2nd Tranche to filter the transactions
  3. Highlight a patient and click on Apply Transmittal No.
  4. Select from Consultation or Follow up Medicine transactions you are going to submit




















UPLOAD EKONSULTA
This module is intended for the following:
  1. Viewing of eKonsulta XML
  2. Validate XML
  3. Upload XML

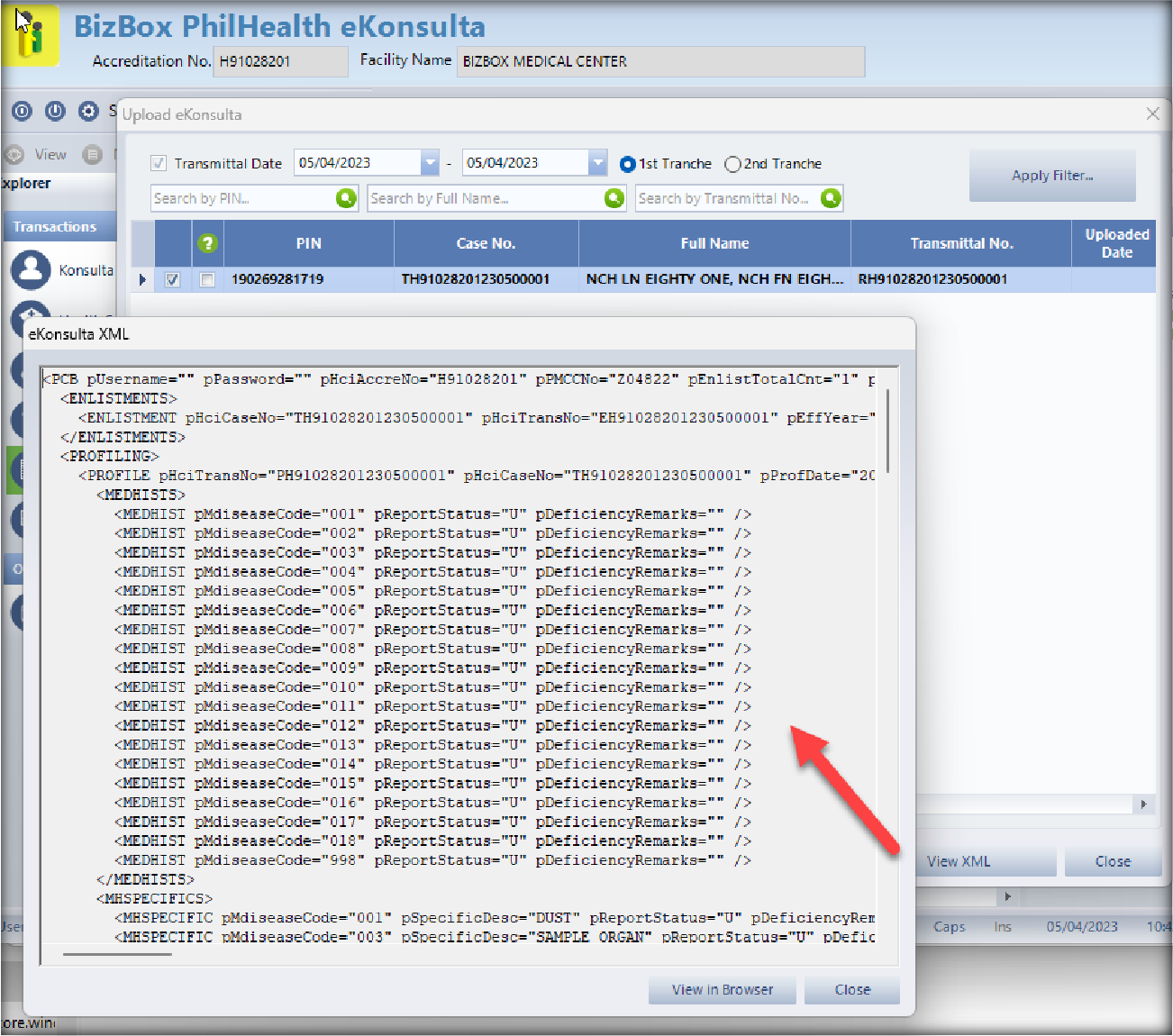

VIEWING OF eKONSULTA XML
VIEW XML FOR FIRST TRANCHE
  1. Put date range on Registered Date
  2. Click on 1ST Tranche to filter the transactions
  3. Highlight a record in Transmittals module
  4. Click on View XML

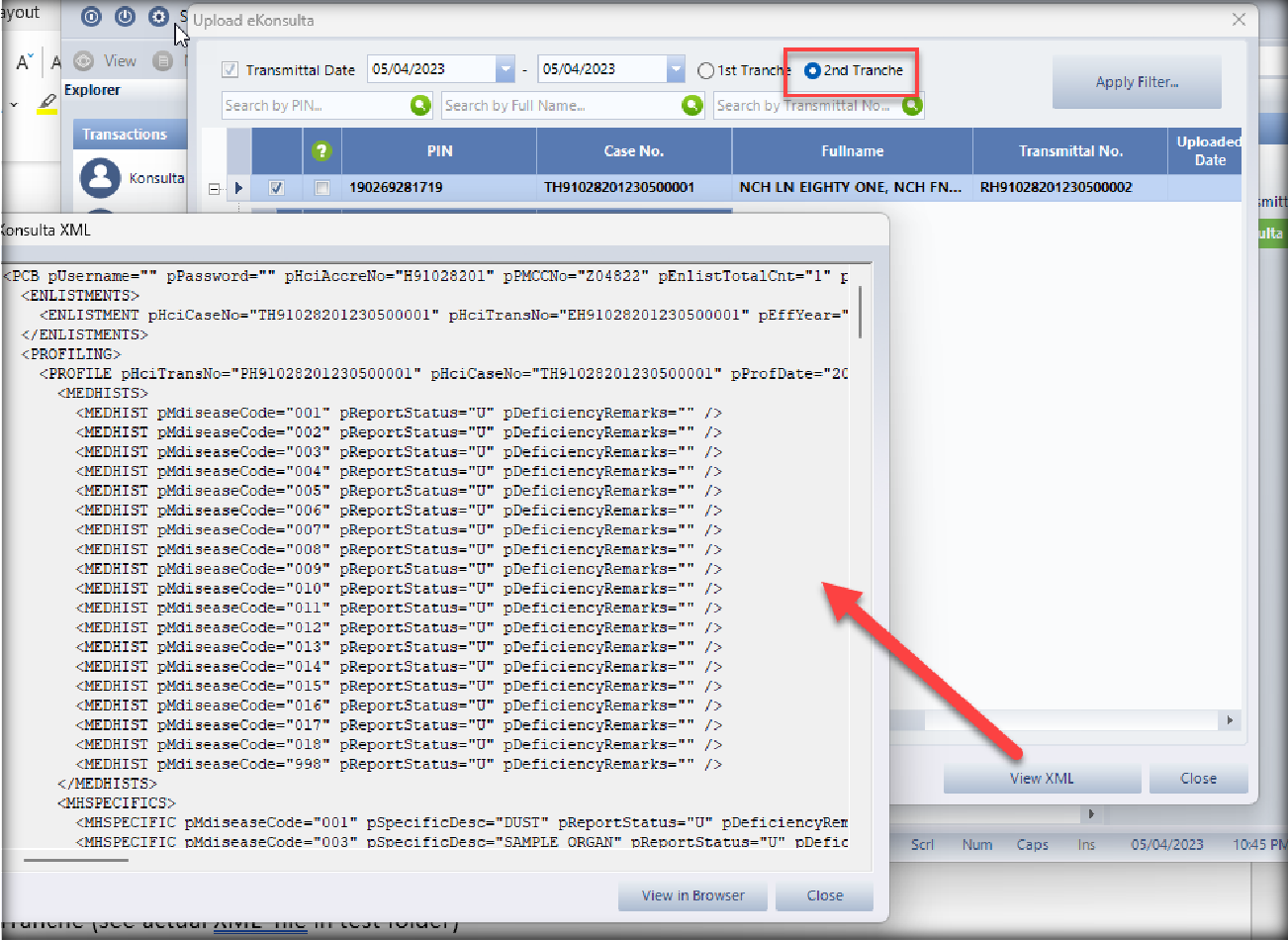

VIEW XML FOR SECOND TRANCHE
  1. Put date range on Registered Date
  2. Click on 2nd Tranche to filter the transactions
  3. Highlight a record in Transmittals module
  4. Click on View XML

VALIDATE XML
Validate XML before submission (from ValidateReport webservice)

VALIDATE XML FOR FIRST TRANCHE

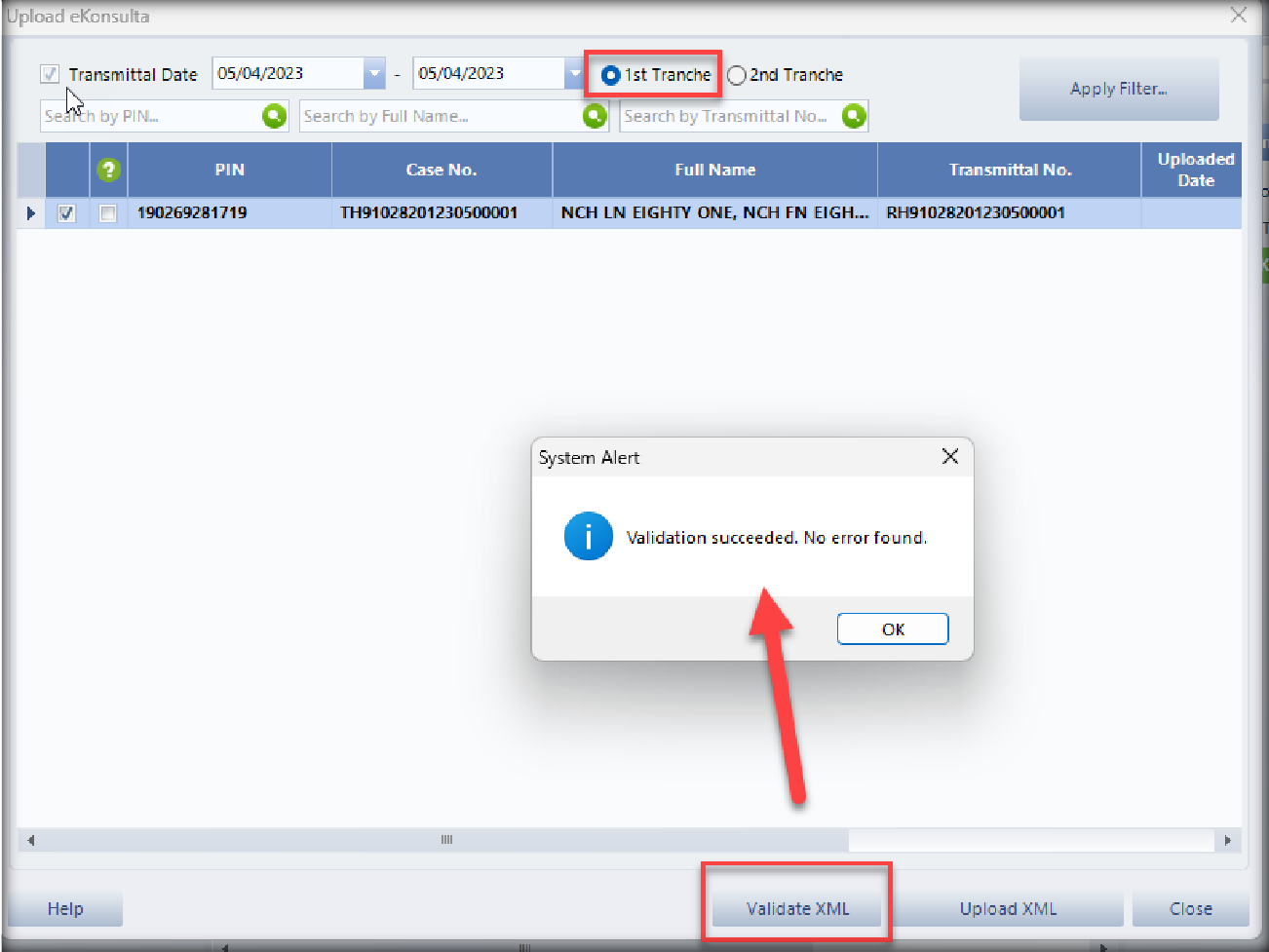

  1. Put date range on Transmittal Date
  2. Click on 1st Tranche to filter the transactions
  3. Highlight a record in and click on Validate XML
  4. Message response form Philhealth Web Service will appear
a. Validation succeeded. No error found (no error)
b. Validation message (depends on issue)

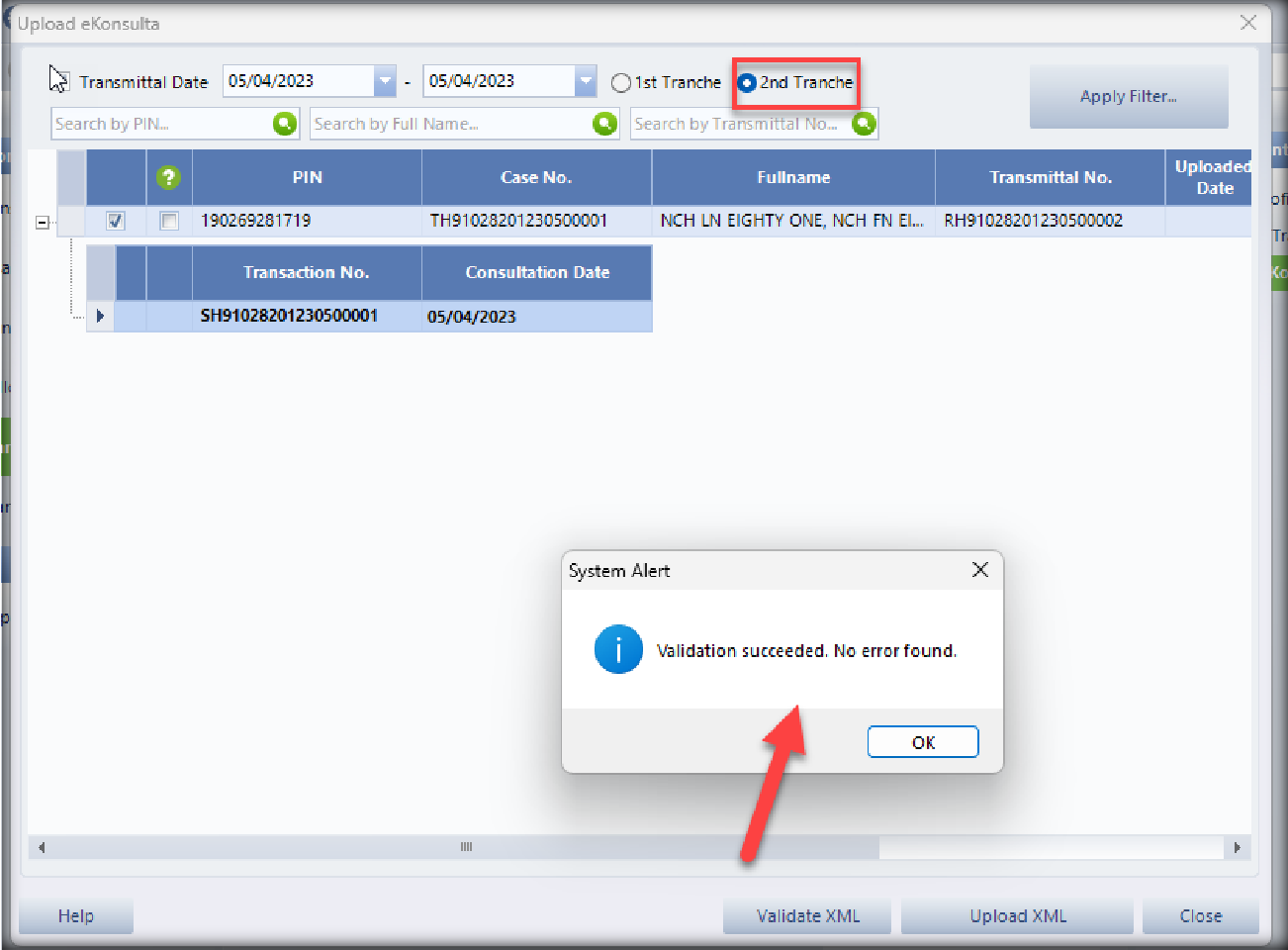

VALIDATE XML FOR FIRST TRANCHE
  1. Put date range on Transmittal Date
  2. Click on 2nd Tranche to filter the transactions
  3. Highlight a record in Transmittals module
  4. Click on Validate XML

UPLOAD EKONSULTA

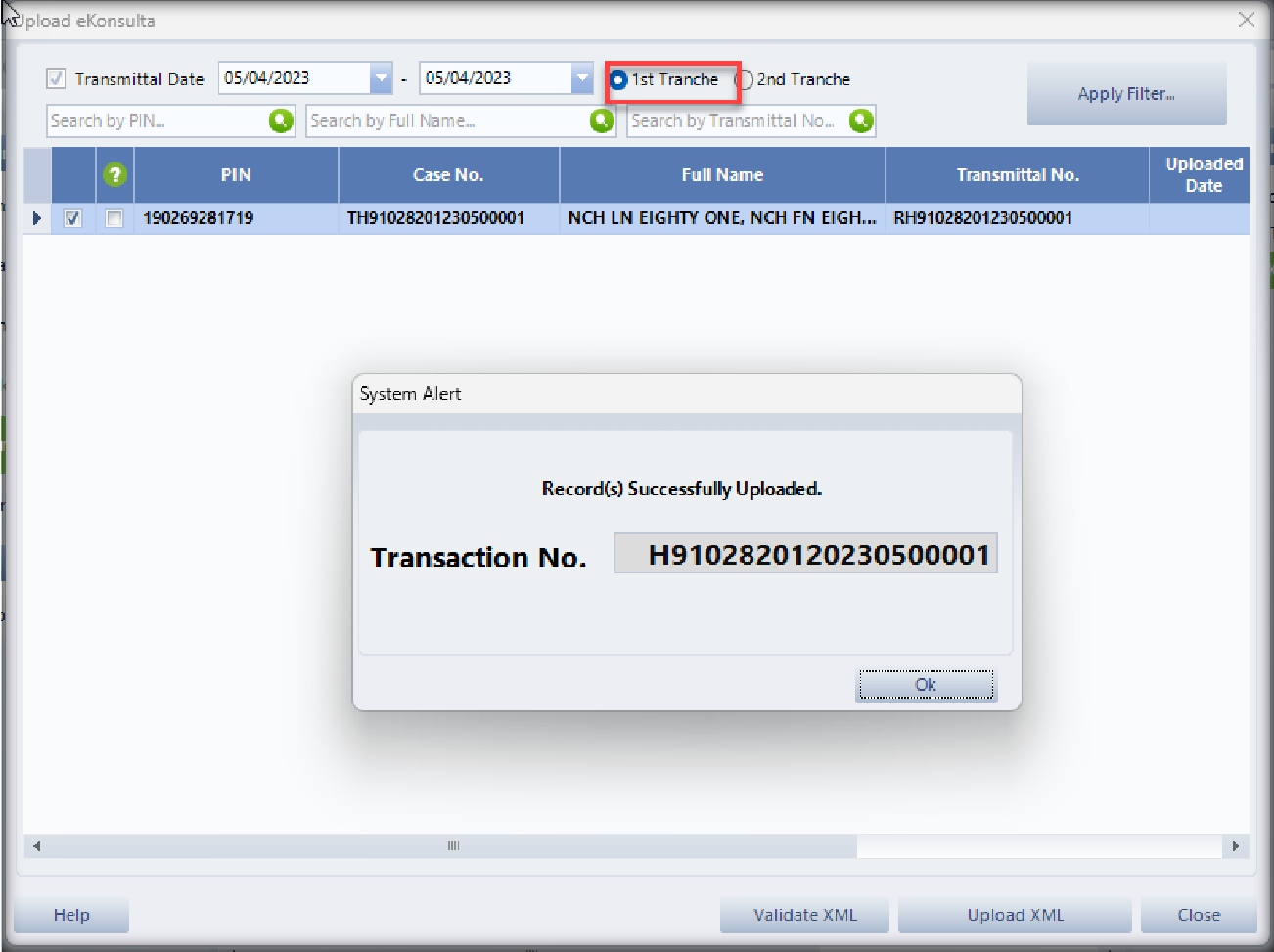

UPLOAD XML FOR FIRST TRANCHE
  1. Put date range on Transmittal Date
  2. Click on 1st Tranche to filter the transactions
  3. Highlight a record and click on Upload XML
  4. Generated Transaction Number from Philhealth will appear.
Submit First Tranche Konsulta Report: Transaction No. H9102820120230500001


UPLOAD XML FOR SECOND TRANCHE
  1. Put date range on Transmittal Date
  2. Click on 2nd Tranche to filter the transactions
  3. Highlight a record and click on Upload XML
  4. Generated Transaction Number from Philhealth will appear.
Submit Second Tranche Konsulta Report: Transaction No. H9102820120230500002

EFFECT IN PATIENT STATEMENT OF ACCOUNT

Based on previous discussions, the system automatically creates an OPD record for the following:
1. Consultation
2.. Follow up Medicine
For each OPD record, the user may process the following:
1. Edit the OPD record to assign the doctor
2. Charge procedure/medicine to patient
3. Settle excess charges (if there’s any)
4. Process Konsulta Benefits

KONSULTA BENEFITS
Recognition of eKonsulta Benefits in Statement of Account
1. In HIS – Registrations – SubComponents, click on Post Konsulta Benefits


2. Konsulta Benefits Module will appear. Process the Konsulta Benefits by settling the charges of Patient
a. Items and Services
b. Professional Fee
3. Click on Save and Close to proceed




4. In Statement of Account, check the effect of Konsulta Benefits


5. Just like in Philhealth Deduction, the user may need to process the Konsulta Benefits in the following module in consideration to FMS.
  1. Outright Deduction – Batch AR Posting Philhealth
  2. Outright Deduction – Batch PF Posting Philhealth

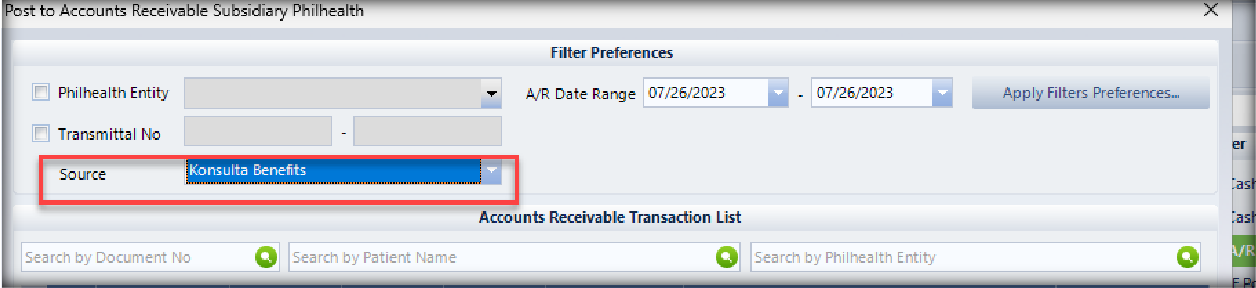

NOTE: Select Source – Konsulta Benefits


    • Related Articles

    • GS-002 Bizbox Service Level of Agreement

      is document represents a Service Level Agreement ("SLA" or "Agreement"), between the BIZBOX and the CLIENT for the provisioning of IT services required to support and sustain the BIZBOX line of solutions for CLIENT’s operations. The document will ...

    • GS-001 Bizbox Terms and Conditions

      In line with our goal to provide our clients excellent service, Bizbox Inc. takes this opportunity to let everyone know that we have established an online community network where everyone can collaborate and share great ideas. This online community ...

    • PIS-010 How to fix the system alert “Please assign Expiry Date for Doctor” in Outright Deduction

      The following guidelines will assist you in addressing the system alert that can occur when saving an Outright Deduction. This issue is typically encountered when the assigned doctor of the patient lacks an encoded PHIC Expiry Date in the Consultants ...

    • Global Settings - Patient Nationality

      This straightforward guide will walk you through the process of adding a new patient nationality to your system. 1. Begin by accessing an administrative account in the Hospital Information System. 2. Locate the 'Global Settings' option in the toolbar ...

    • 8.26.14.44

      We are delighted to share with you a set of new features and a list of fixes that we have in store forthe March 2024 official release. With the improved quality and enhanced options, you can now experience a better Hospital Information System 8. The ...
